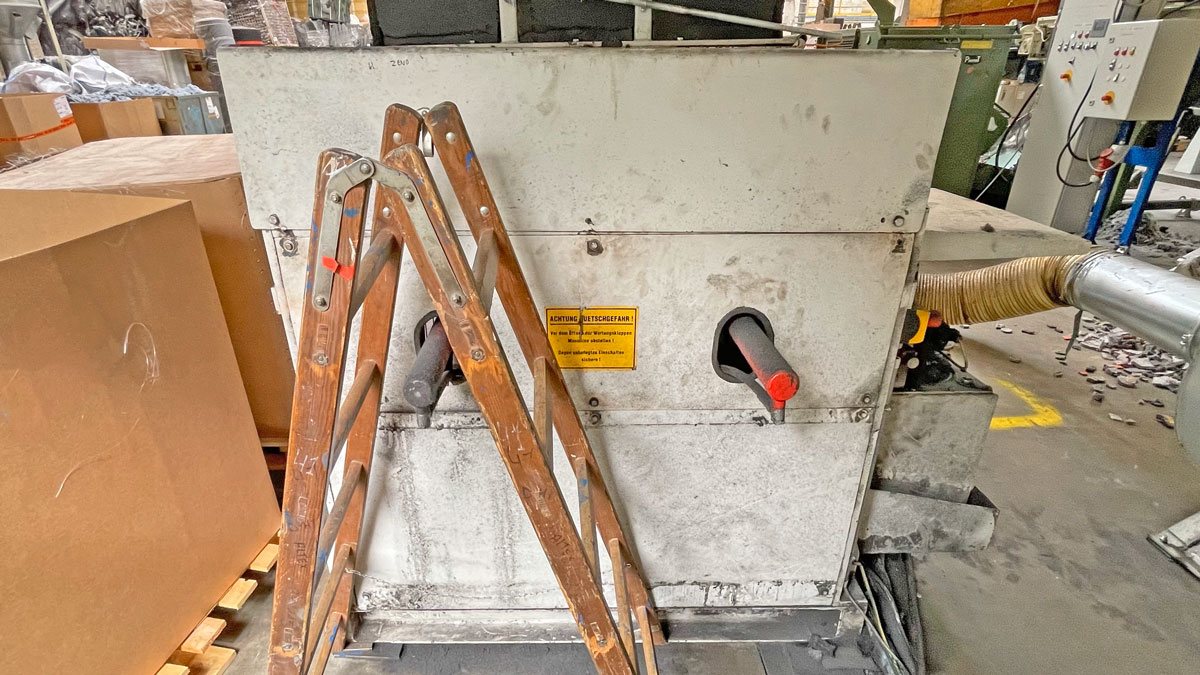

Singleshaft shredder ZENO, type ZTLL 1400 x 1600, yoc 2010, 56,748 operating hours, drive power 45 kW, 52 pieces cutting crones 40 x 40 mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

Technical data shredder:

Manufacturer ZENO Zerkleinerungsmaschinenbau Norken GmbH

Type ZTLL 1400 x 1600

Year of construction 2010

Operating hours 56,748 hours

Inlet cross-section 1400 x 1600 mm

Main drive power 45 kW

Rated current 81 A

Hydraulic slide gate drive 2.2 kW

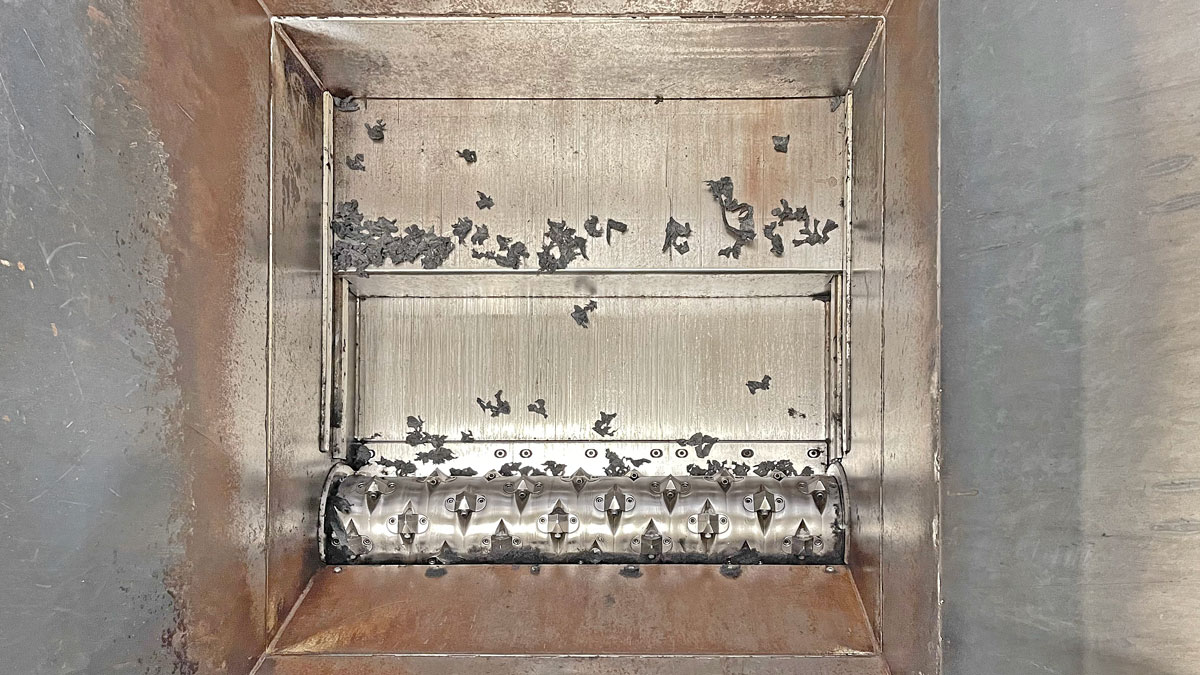

Rotor flight circle 380 mm

Rotor speed approx. 107 rpm

Number of cutting tools 52 knives, 40 x 40 mm, with tool holders

Screen perforation 40 mm

Weight approx. 5400 kg



Scope of delivery:

Only the shredder with control cabinet is for sale. The discharge conveyor belt and the air conveyor system are not included in the scope of delivery.





Remark:

The shredder was used for shredding nonwovens and needle felts etc. and is in good, immediately usable condition. The machine is being replaced by a larger shredder due to its low throughput capacity. The machine is currently still assembled and can be inspected under power.



Comments:

The documentation (Manual, CE-declaration, electr./hydr.-drawings), are completely available.  Inspections are possible after agreement.  We will not assume liability for the given technical data and possible errors.

Documents

View PDF   OBM data sheet    View PDF   Blank data sheet

Please note:

  • All technical data refer to specifications of producer/owner. We will not assume liability for the given statements and possible errors.
  • This offer is non-binding, prior sale excepted und revocable at any time.
  • Inspections possible after agreement.
  • The sale is ex location, as it stands and lays, without liability and guarantee.
