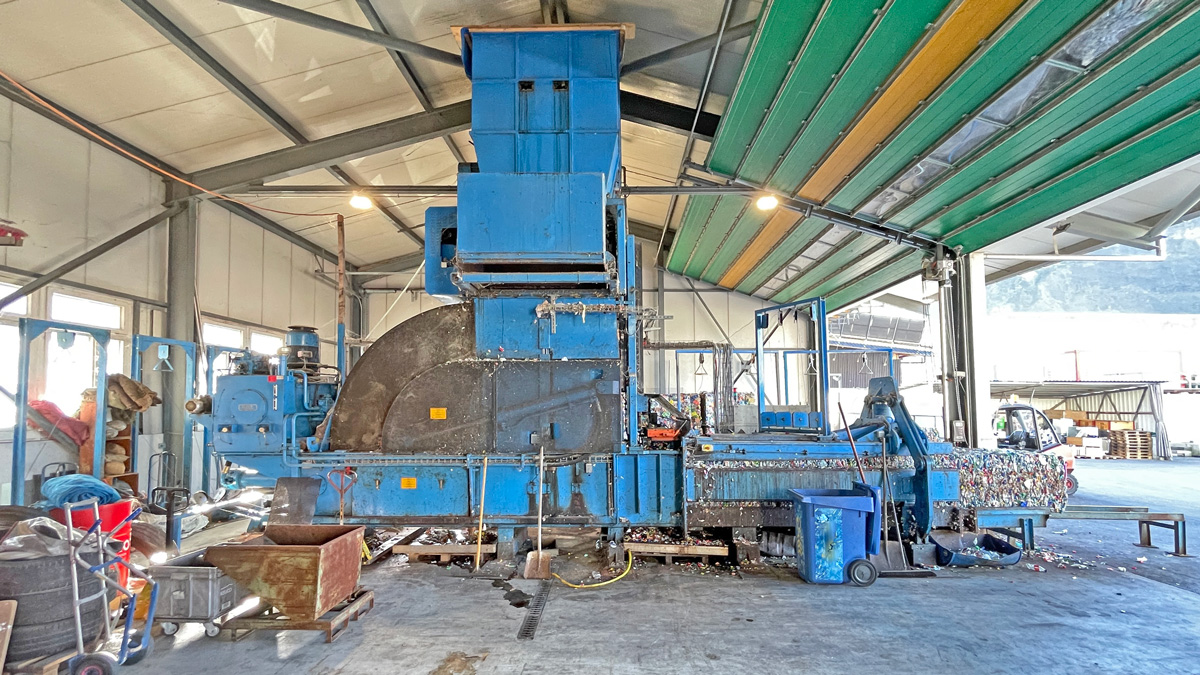

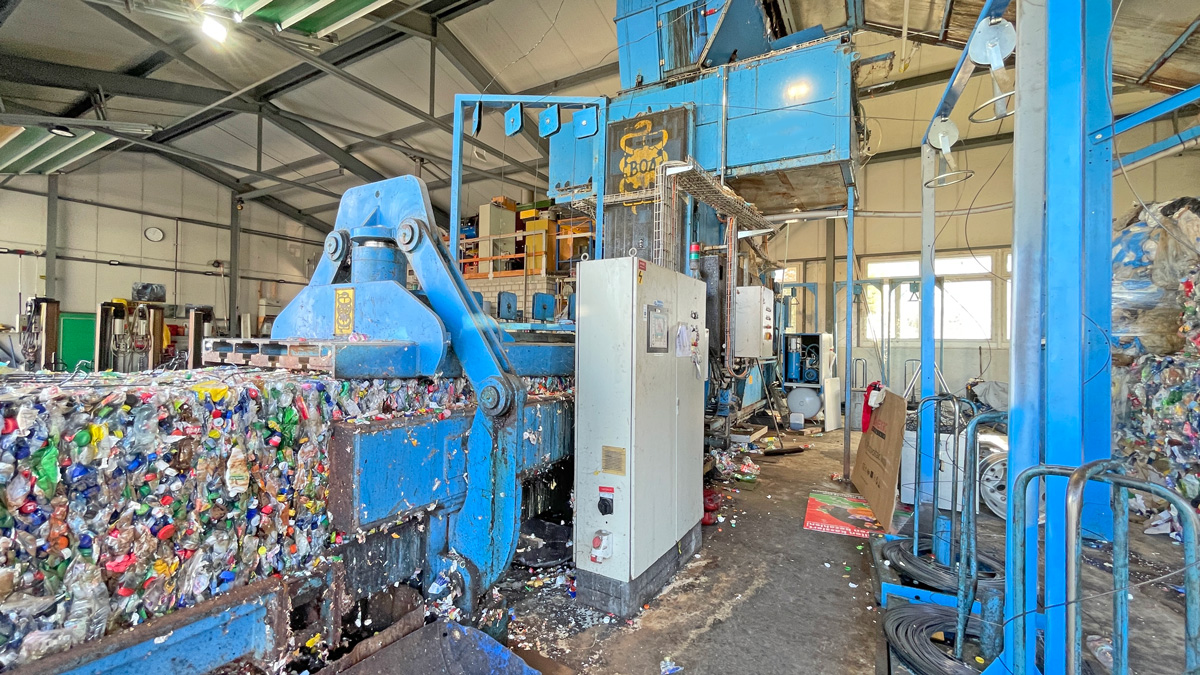

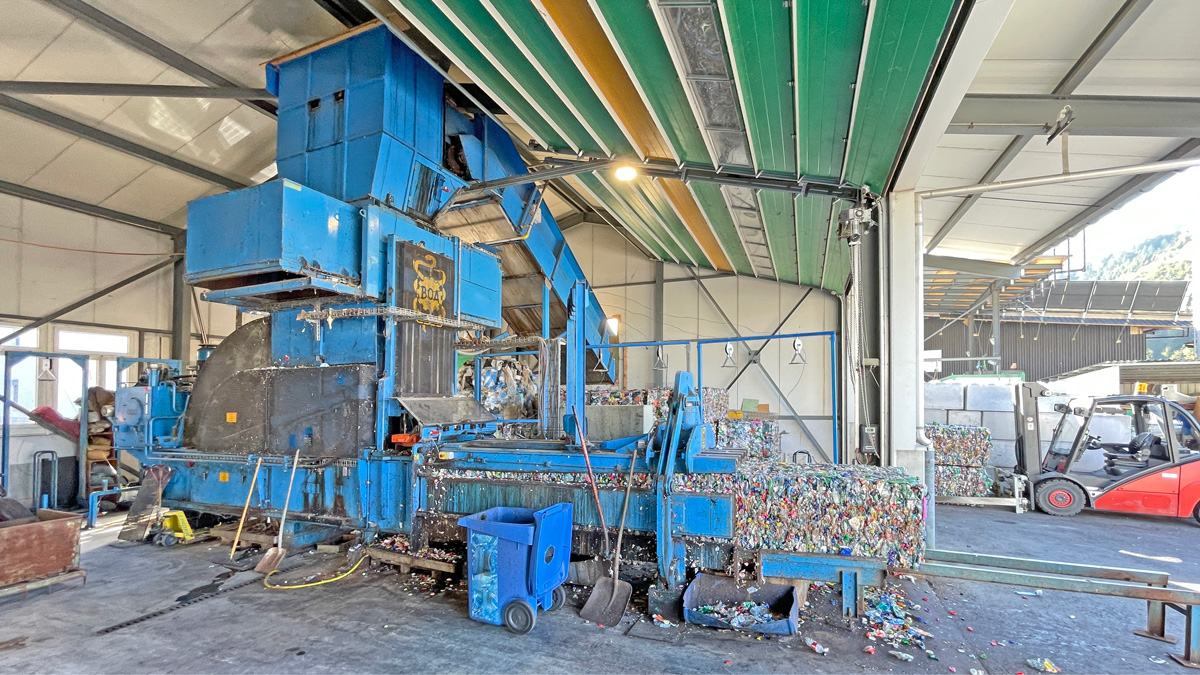

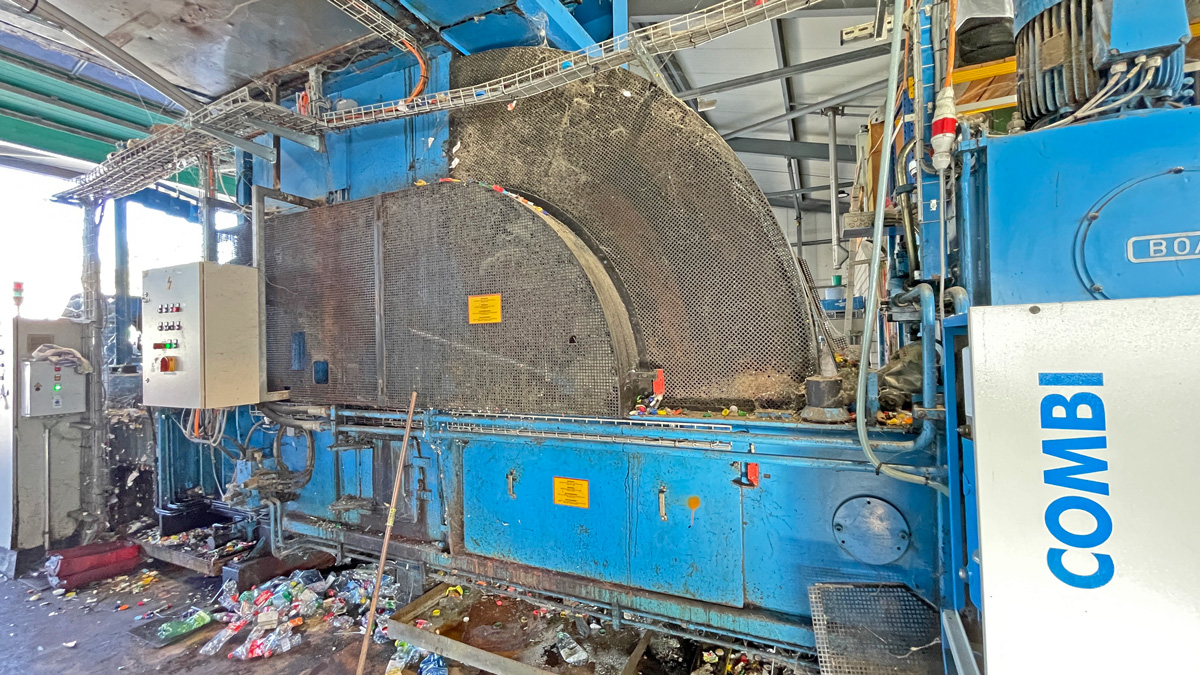

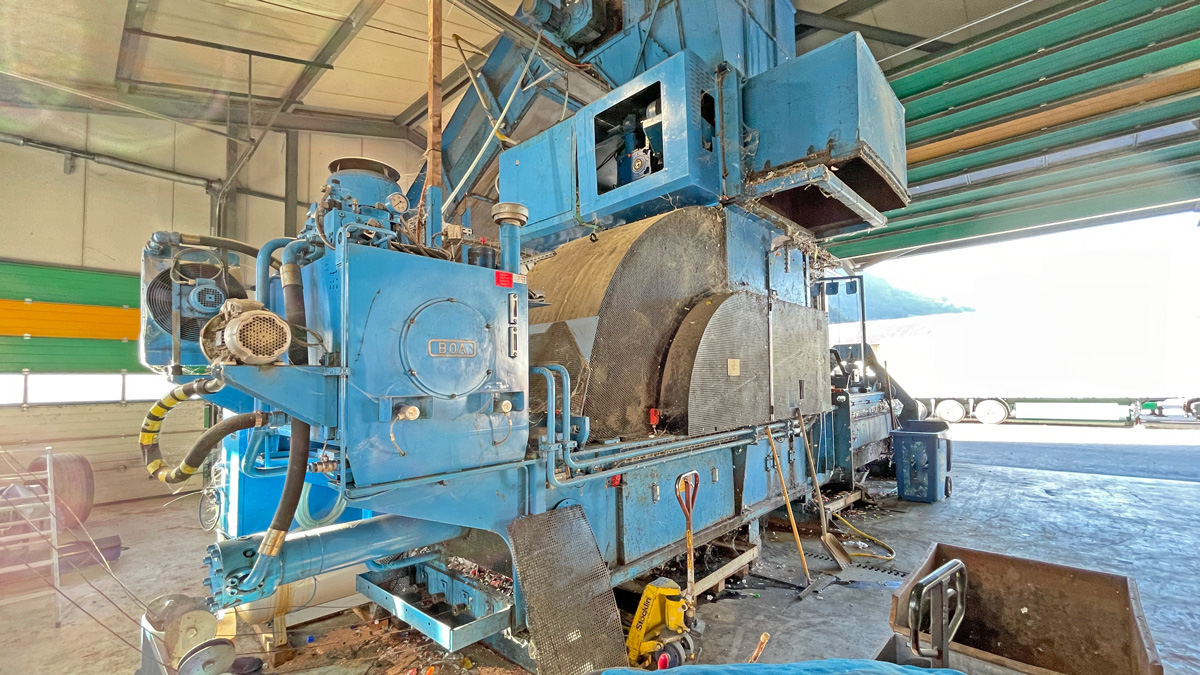

Baler BOA, type 2040, 71 t pressing force, yoc 2002, only 13,614 hours pump running time, drive power 45 kW, incl. chain belt conveyor, PET flattener und PSS system

Technical data baler:

Manufacturer BOA

Type 2040.S. 4V (6) 71.30

Year of manufacture 2002

Operating hours approx. 66,568 hours, as of October 2025

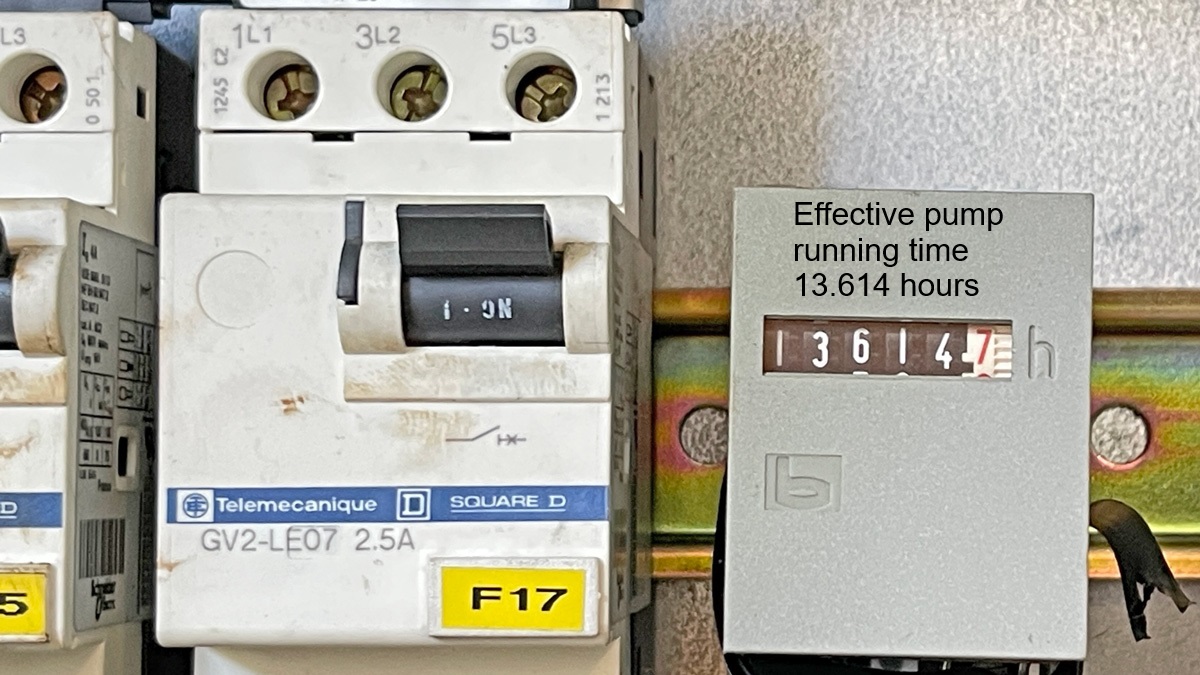

Effective pump running time 13,614 hours, as of October 2025

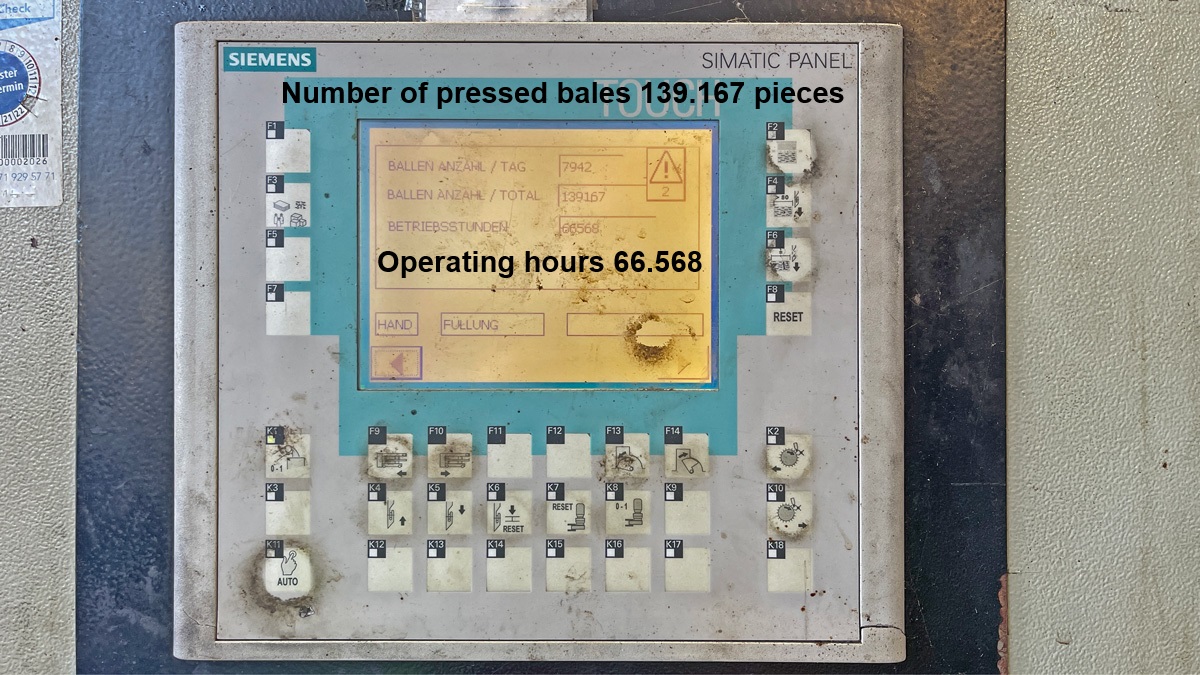

Number of bales pressed 139,167, as of October 2025

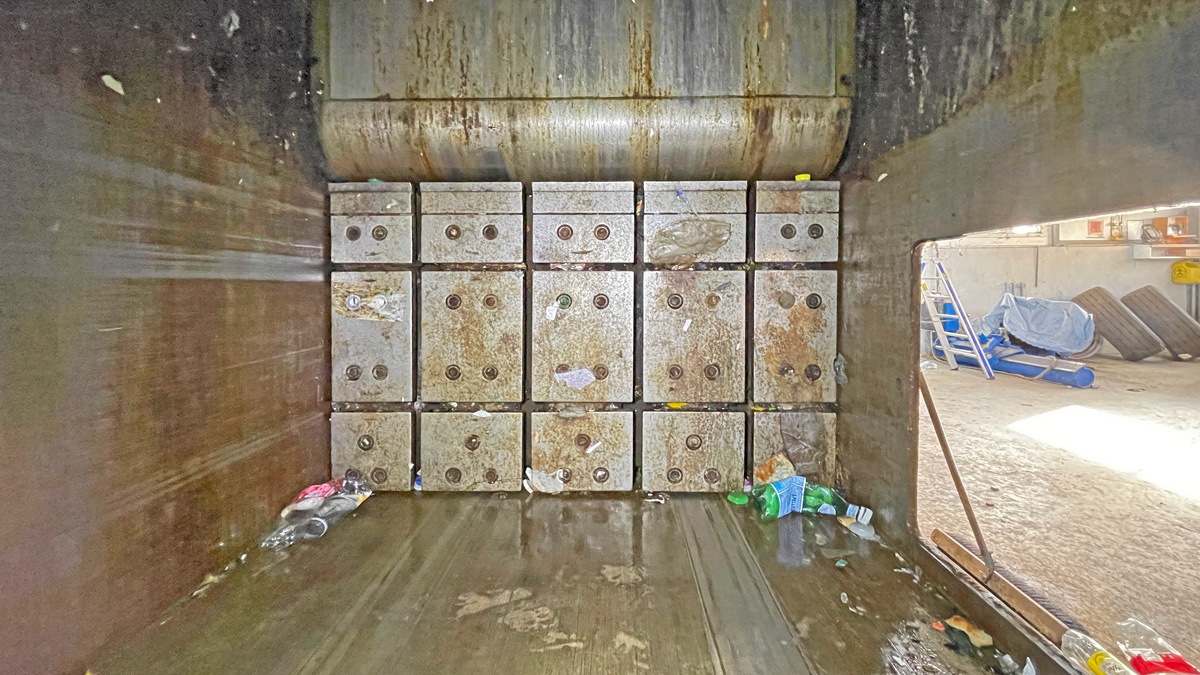

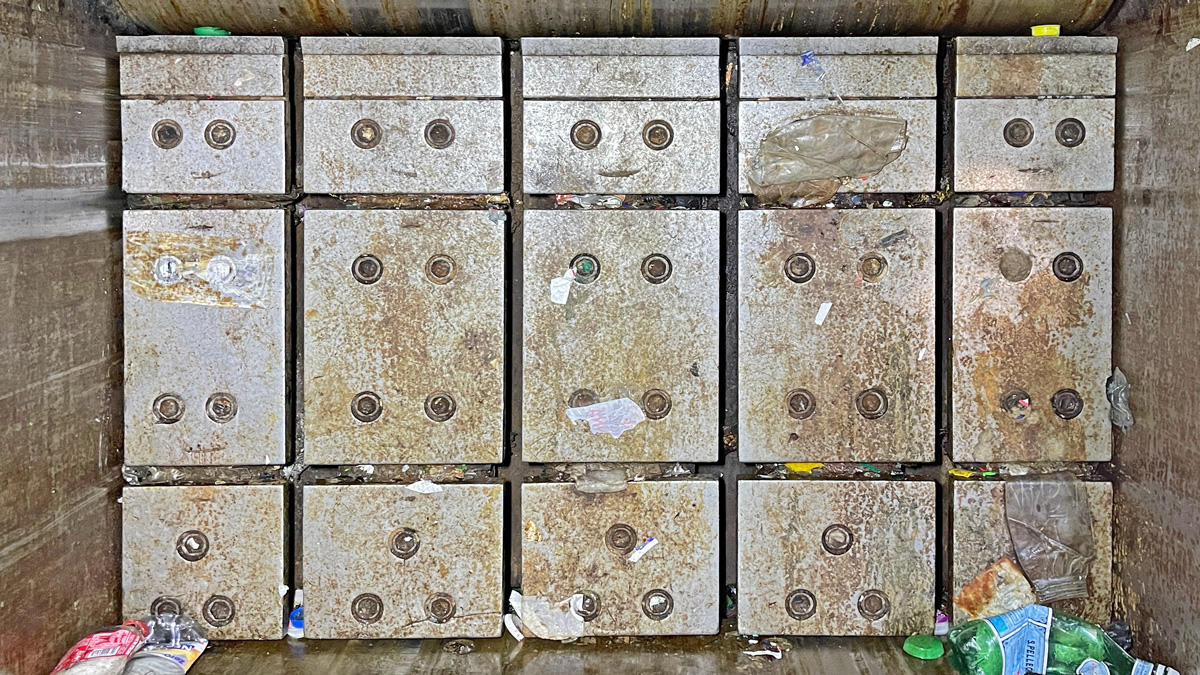

Pressing force main press 71 t

Specific pressing pressure 9.0 kg/cm²

Operating pressure 280 bar

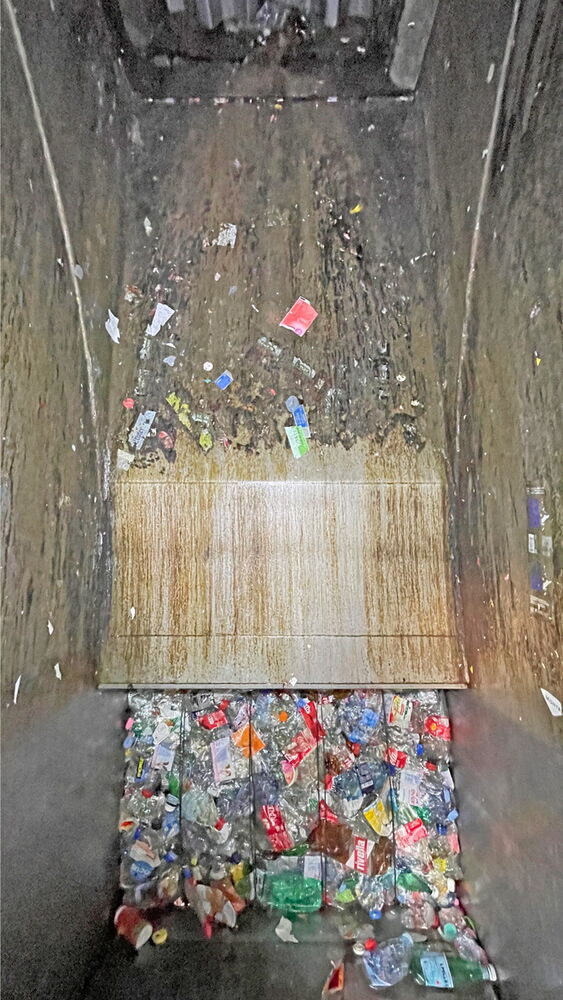

Dimensions of feed chute 1,620 x 1,080 mm

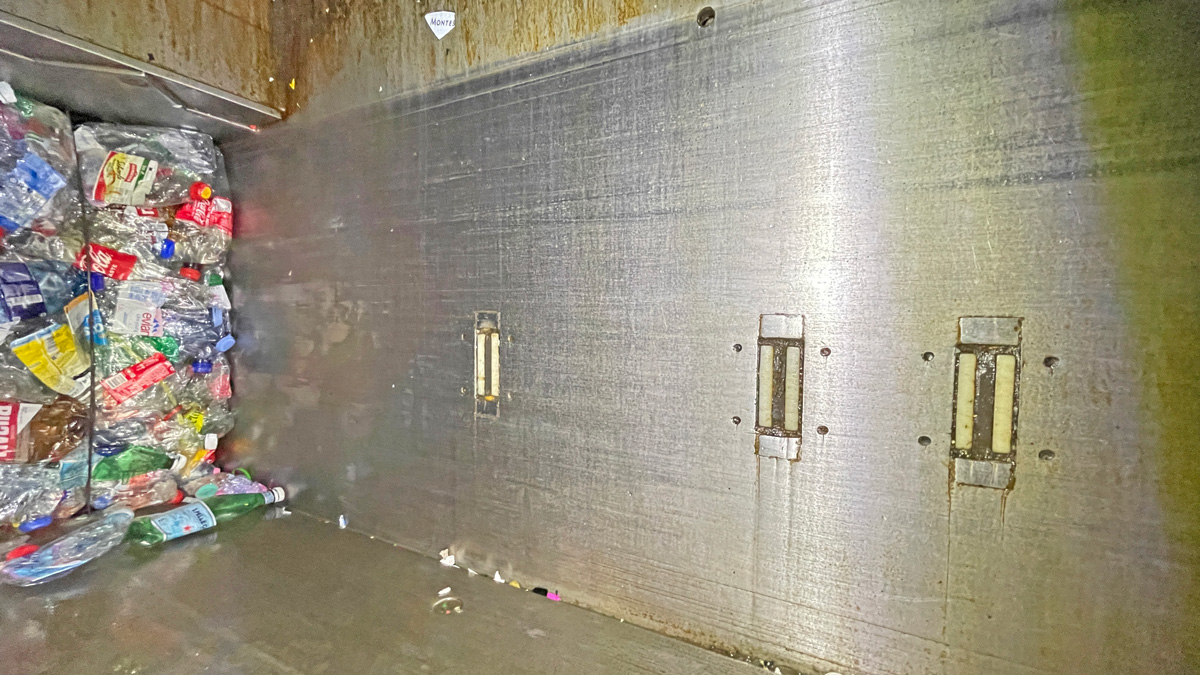

Bale dimensions 1,100 x 1,100 mm, length variably adjustable 800 up to 1,600 mm

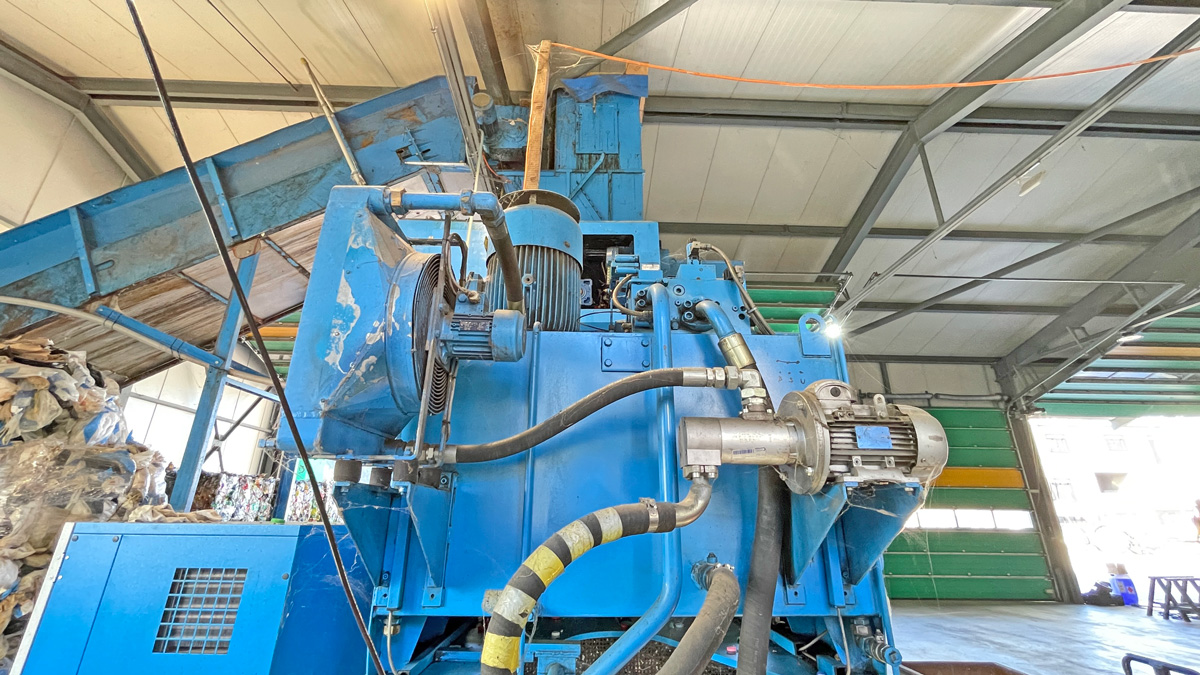

Drive power 45 kW

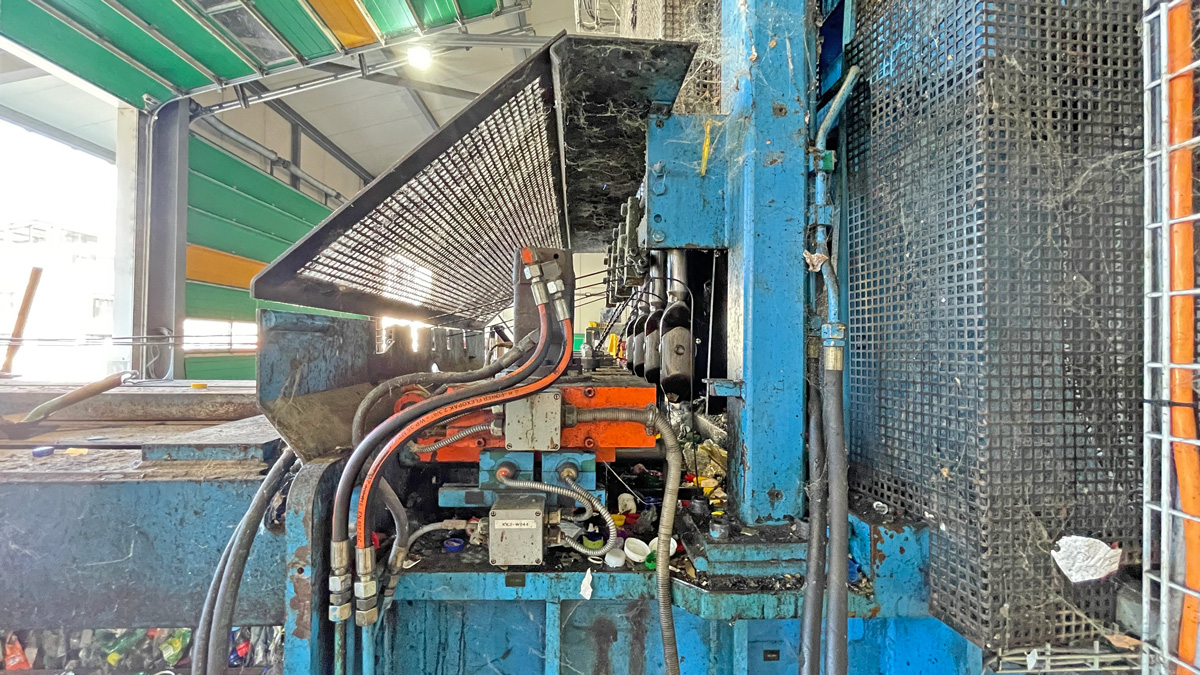

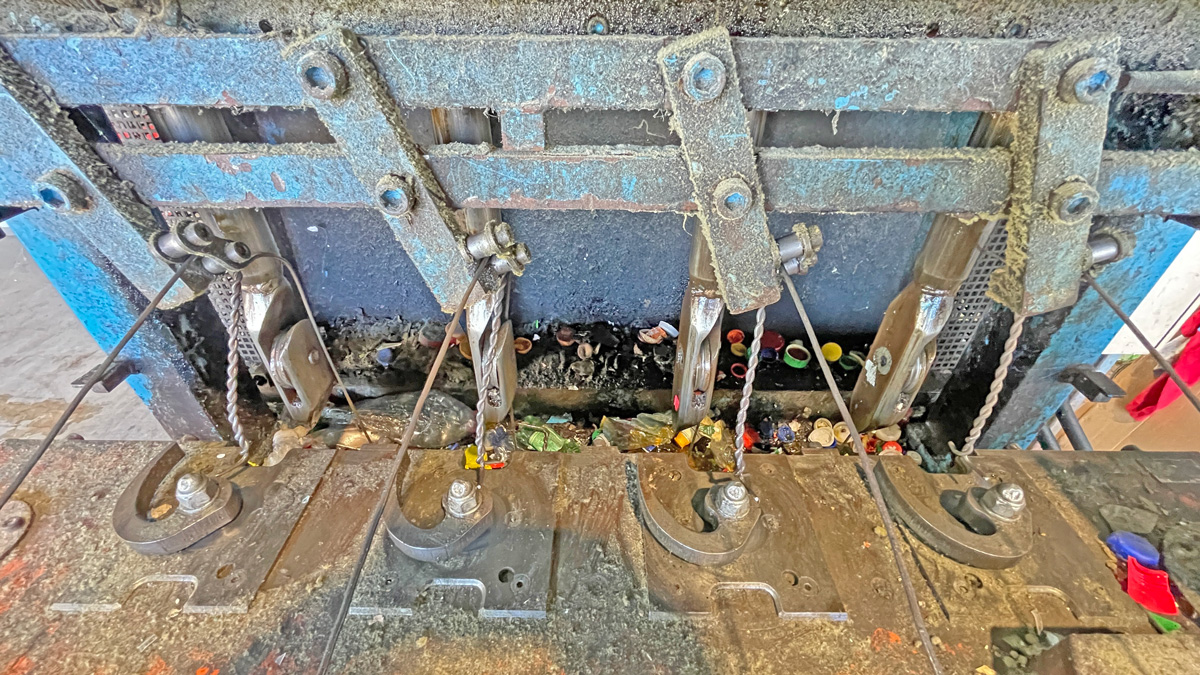

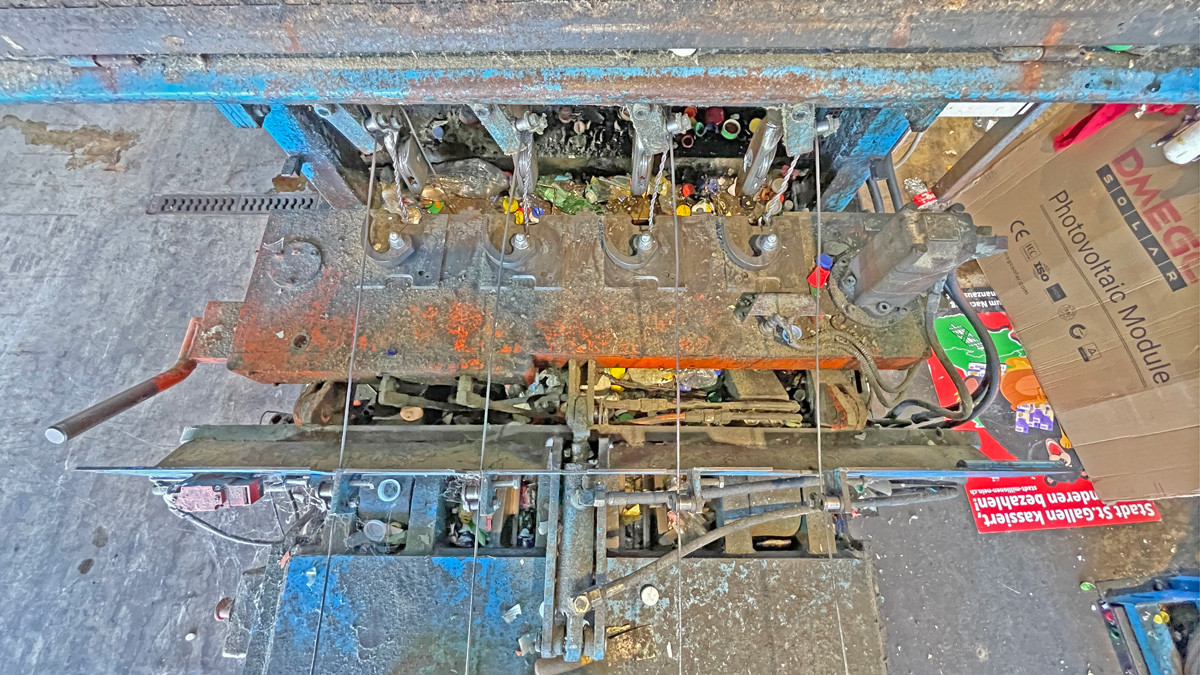

Tying system 4-fold vertical, fully automatic

Throughput rates for quality:

Bulk density 20–30 kg/m³, throughput capacity up to 9 tonnes/hour

Bulk density 40–60 kg/m³, throughput capacity up to 16 t/hour

Bulk density 80–100 kg/m³, throughput capacity up to 21 t/hour

Bulk density 100–150 kg/m³, throughput capacity up to 28 t/hour

Bale weight up to 600 kg/bale, depending on material

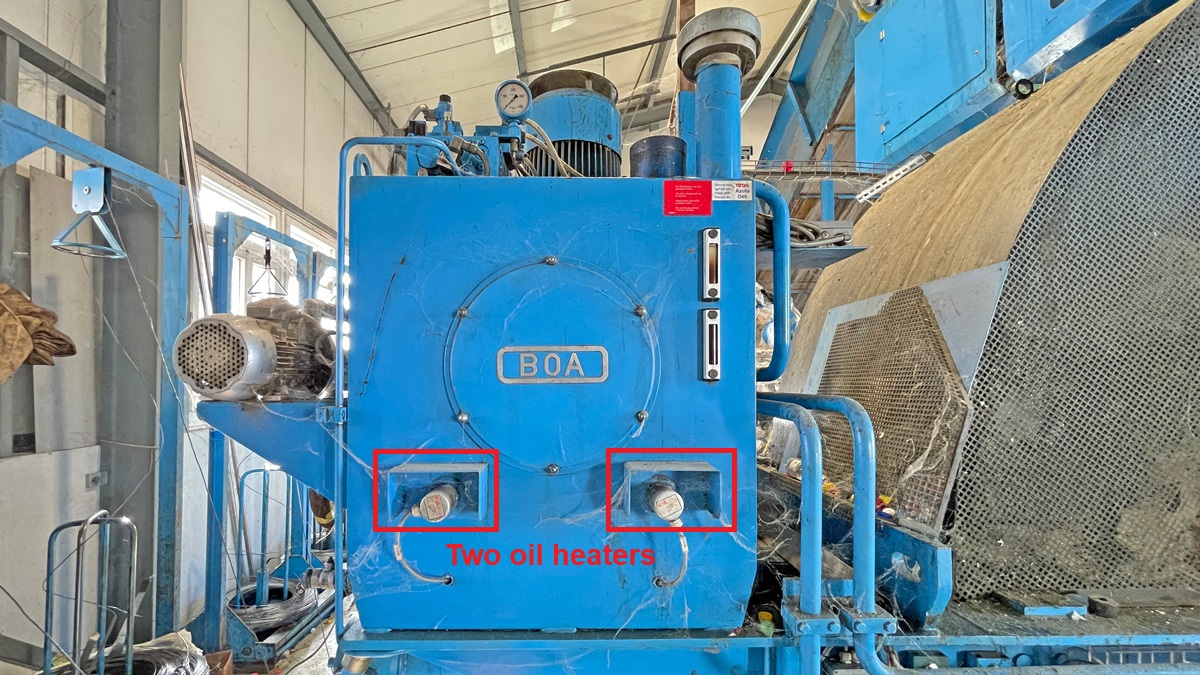

Hydraulic oil tank capacity 800 l

Transport dimensions 10,020 x 2,060 x 3,250 mm (l x w x h)

Machine weight press approx. 26 t

Noise level <90 dB (A)

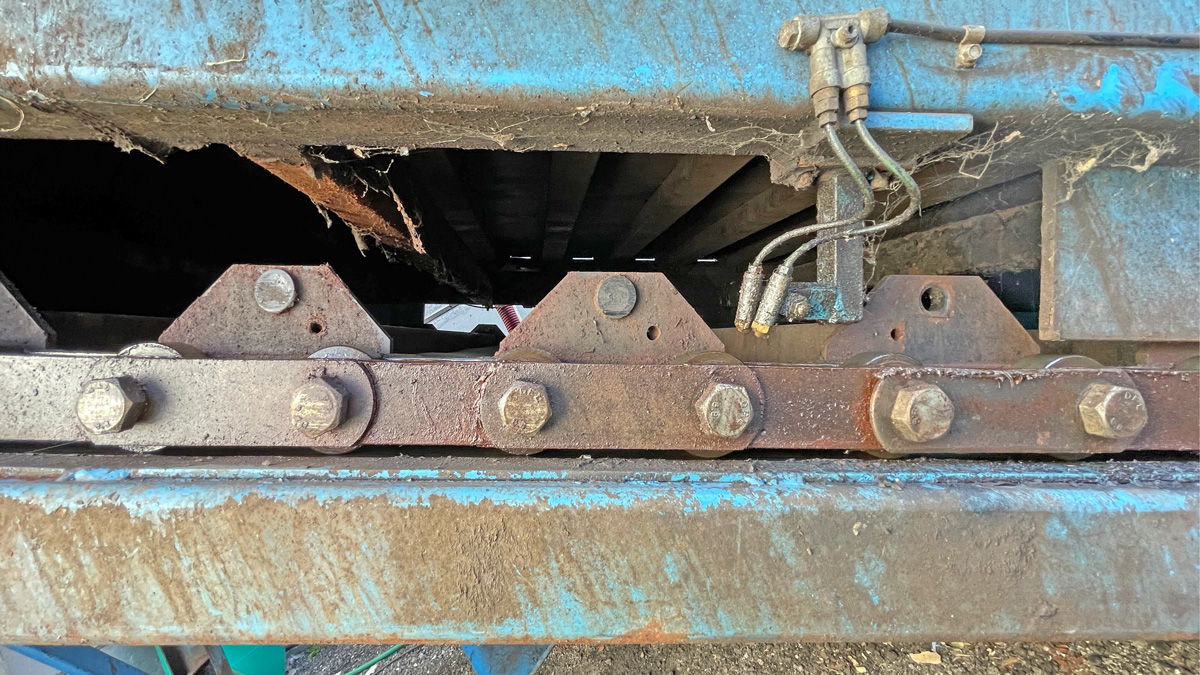

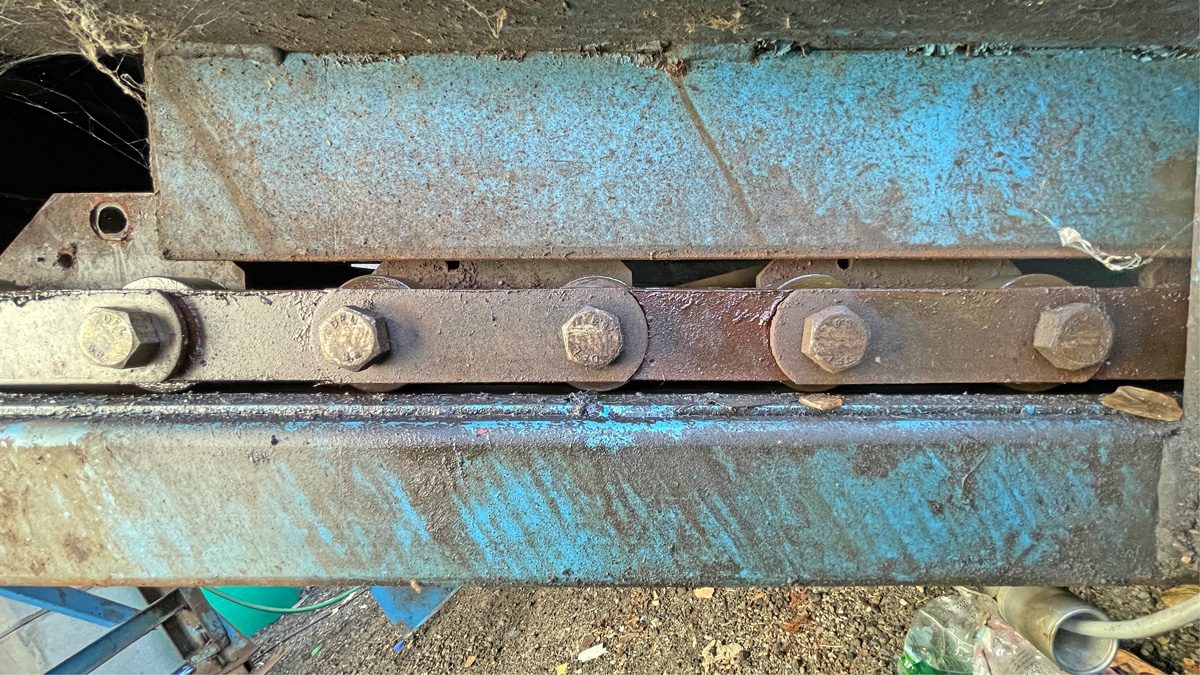

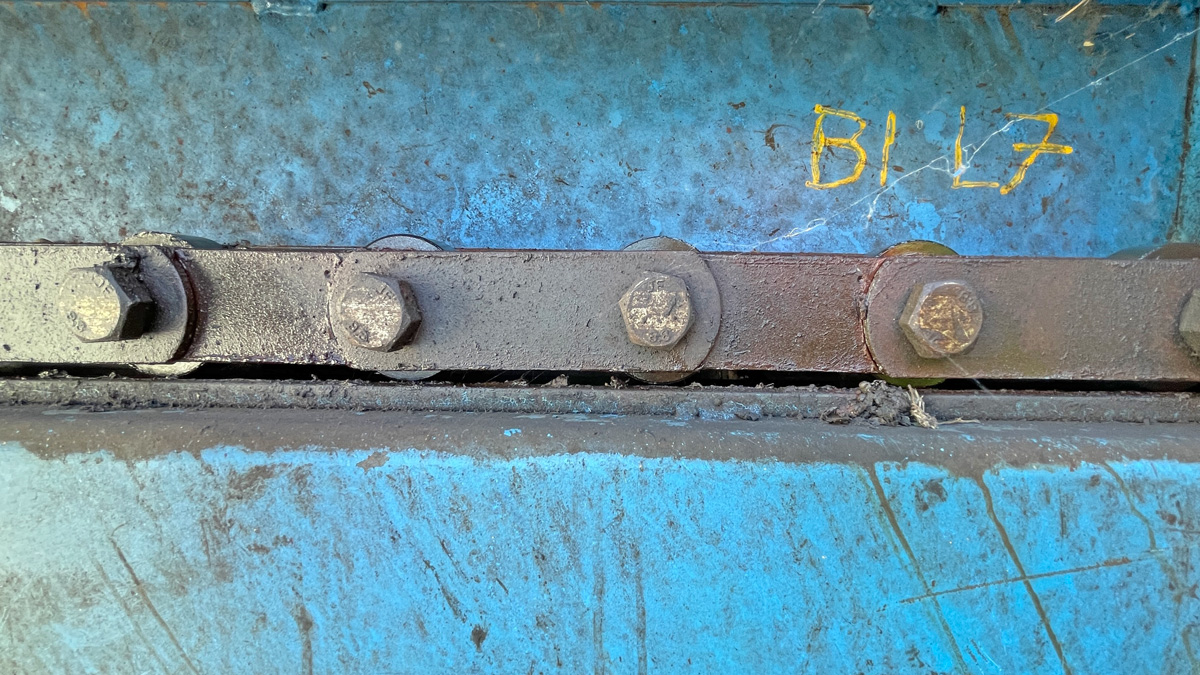

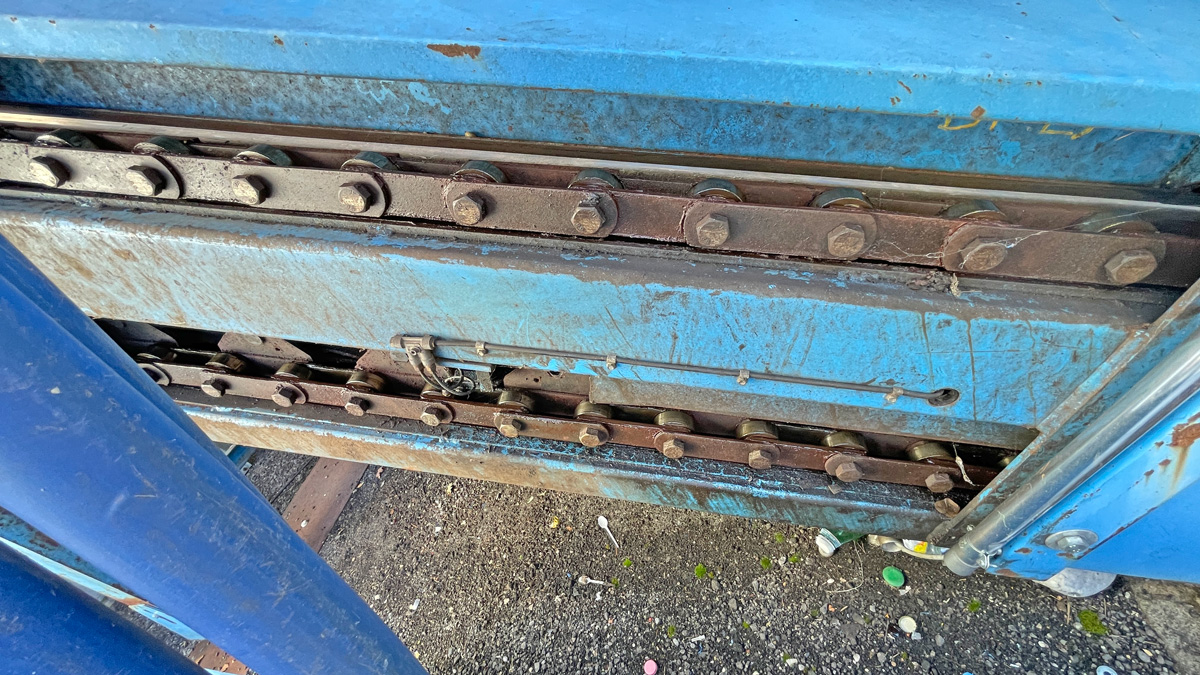

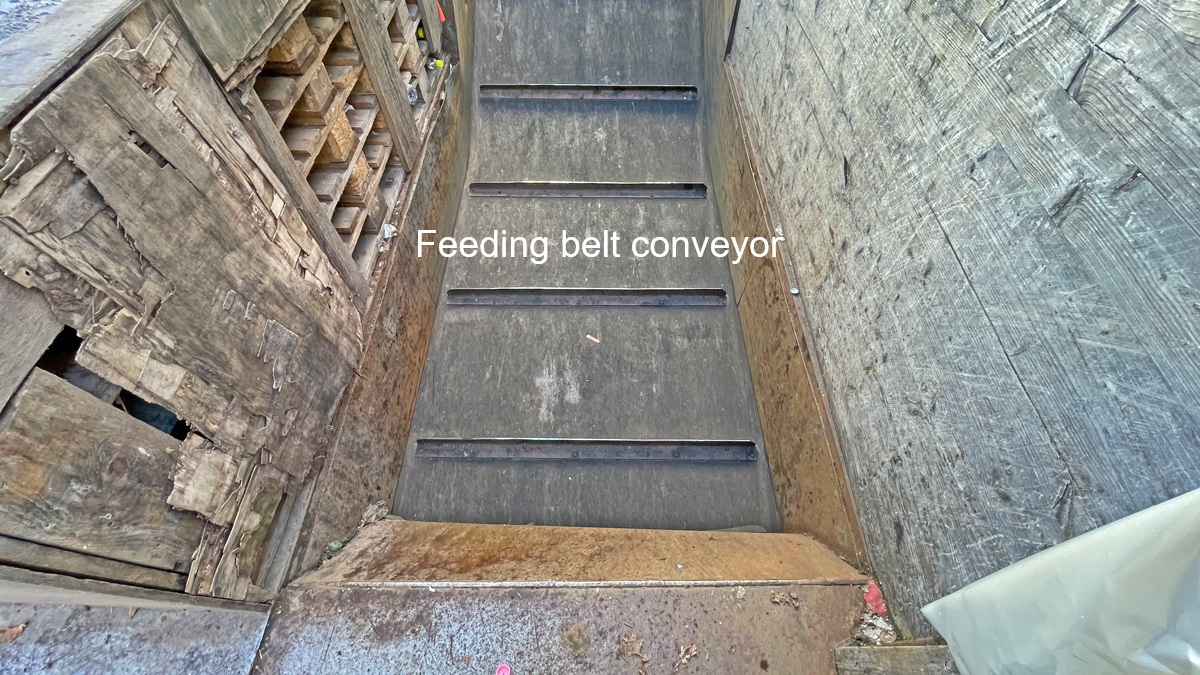

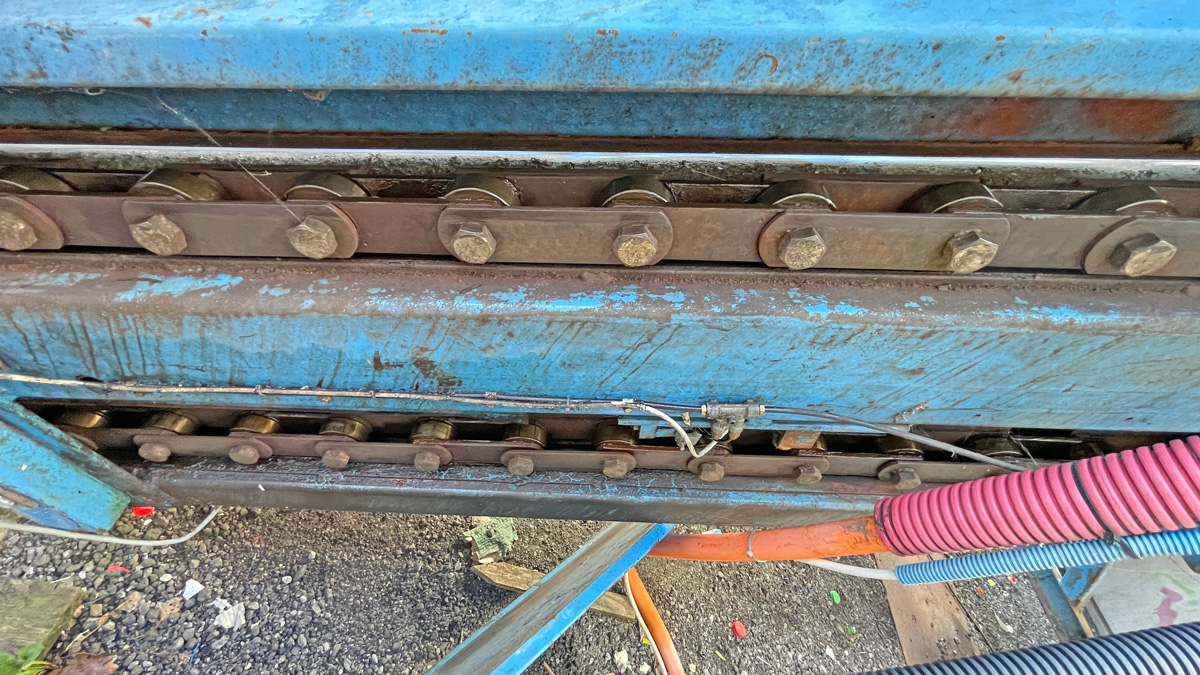

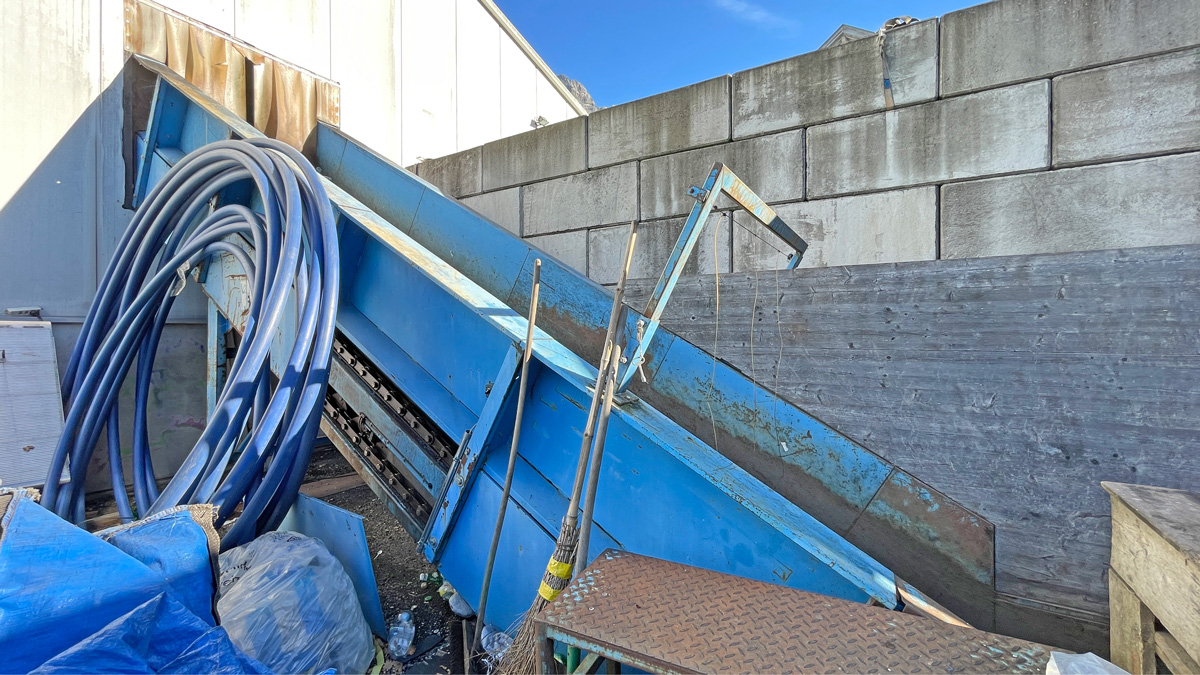

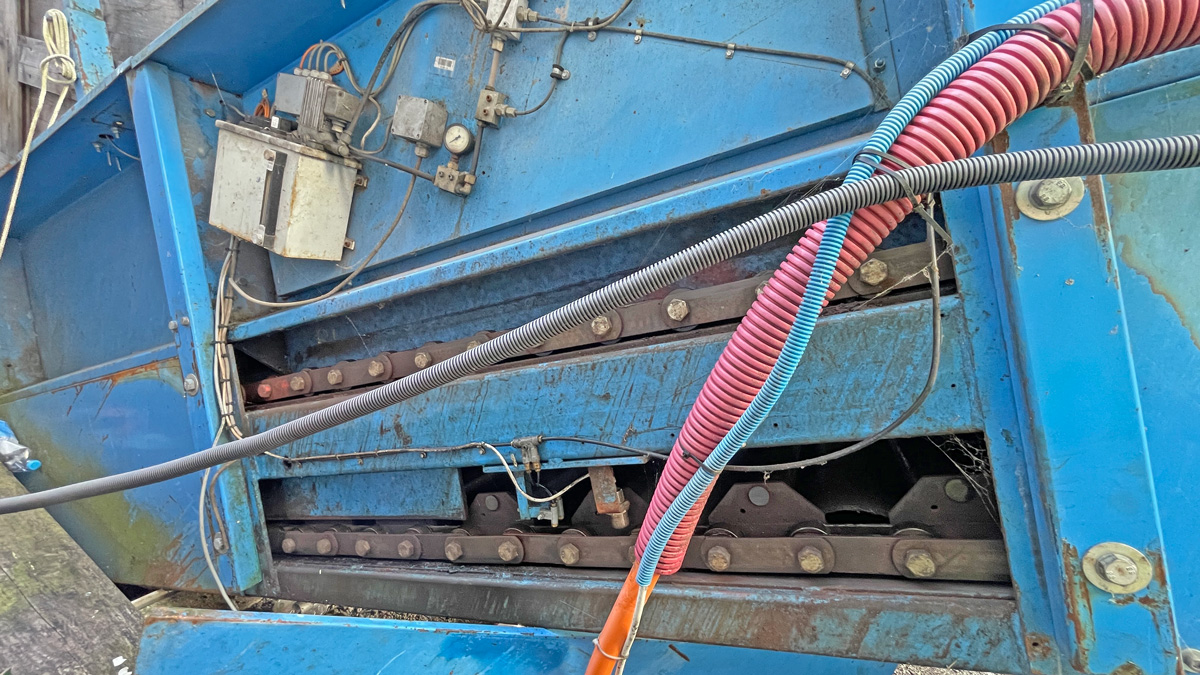

Technical data for the chain belt conveyor:

Manufacturer BOA

Type 1500 HS 29° KTH 3000 *13625 * 1500

Year of manufacture 2002

Drive power 7.5 kW

Length of feed belt 2,600 mm

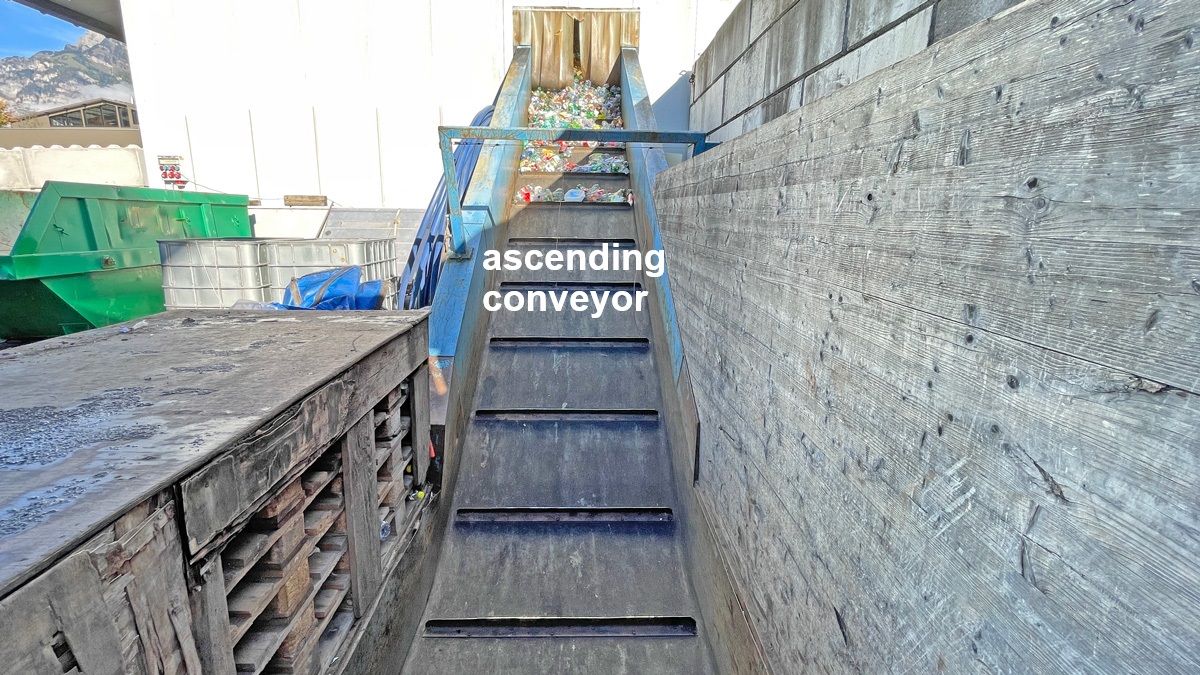

Length of incline belt 13,625 mm

Length of gooseneck 1,500 mm

Incline 29°

Useful width 1,425 mm

Overall height of conveyor belt 7,065 mm

Height of side wall of feed belt, inside 500 mm

Height of side wall of ascending belt, inside 800 mm

Pit dimensions for conveyor belt 5,500 x 2,800 x 800 mm (l x w x d)

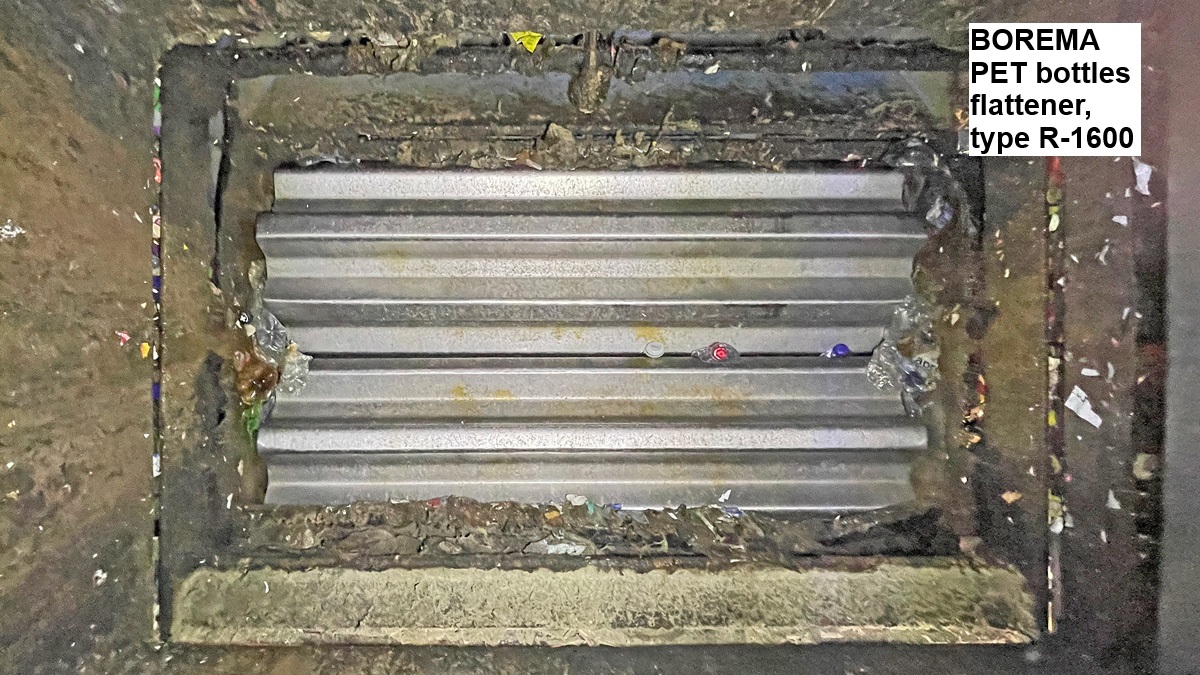

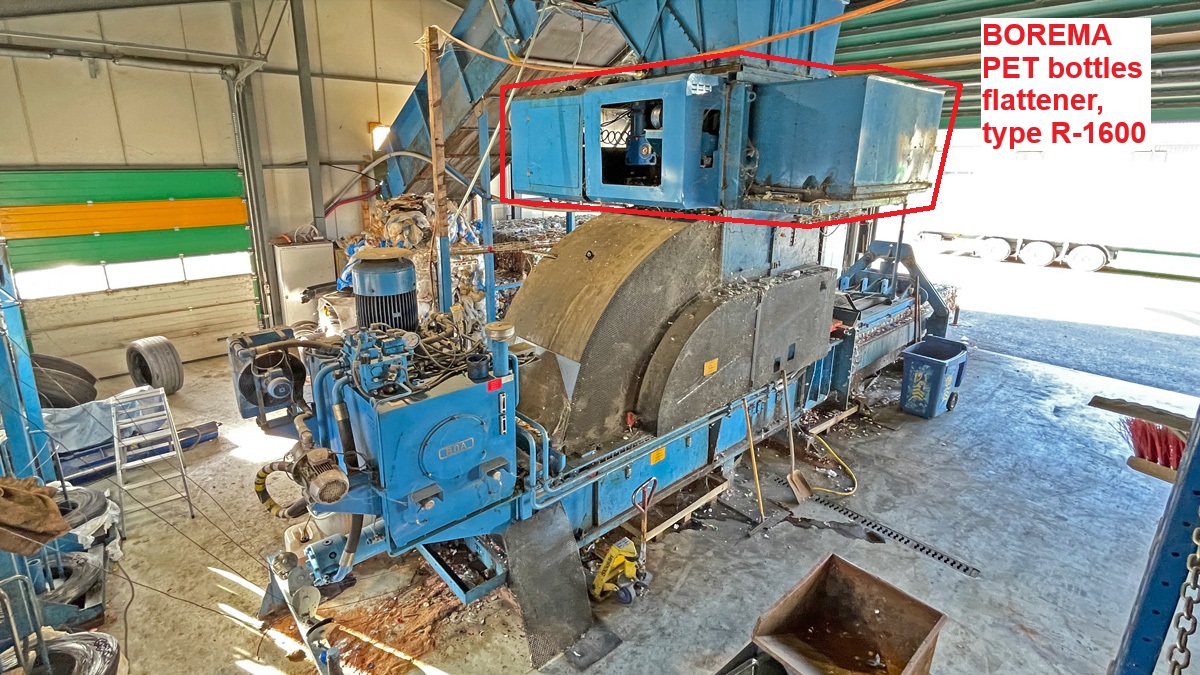

Technical data for PET bottle flattener:

Manufacturer BOREMA

Type L 1600

Year of manufacture 2002

Suitable for returnable bottles with a capacity of 0.33  to approx. 2 litres

Throughput approx. 50,000 PET bottles/hour

Dimensions of feed opening 700 x 530 mm

Drive motor power 11.5 kW

Adjustment motor power 0.55 kW

Pressure vessel 6–10 bar

Working pressure 3.5 bar

Connected load 27.7 kVA

Main fuse 3 x 40 AT

Scope of delivery:

1 piece used baler BOA 2040.S. 4V (6) 71.30

10 pieces wire reel stands, without wire

6 pieces wire deflection stations

1 piece bale slider

1 piece chain belt conveyor  BOA 1500 HS 29° KTH 3000 *13625 * 1500

1 piece BOREMA PET bottles flattener type L 1600

1 piece of BOREMA PSS ibor 12 non-contact personal protection system

1 piece of machine documentation

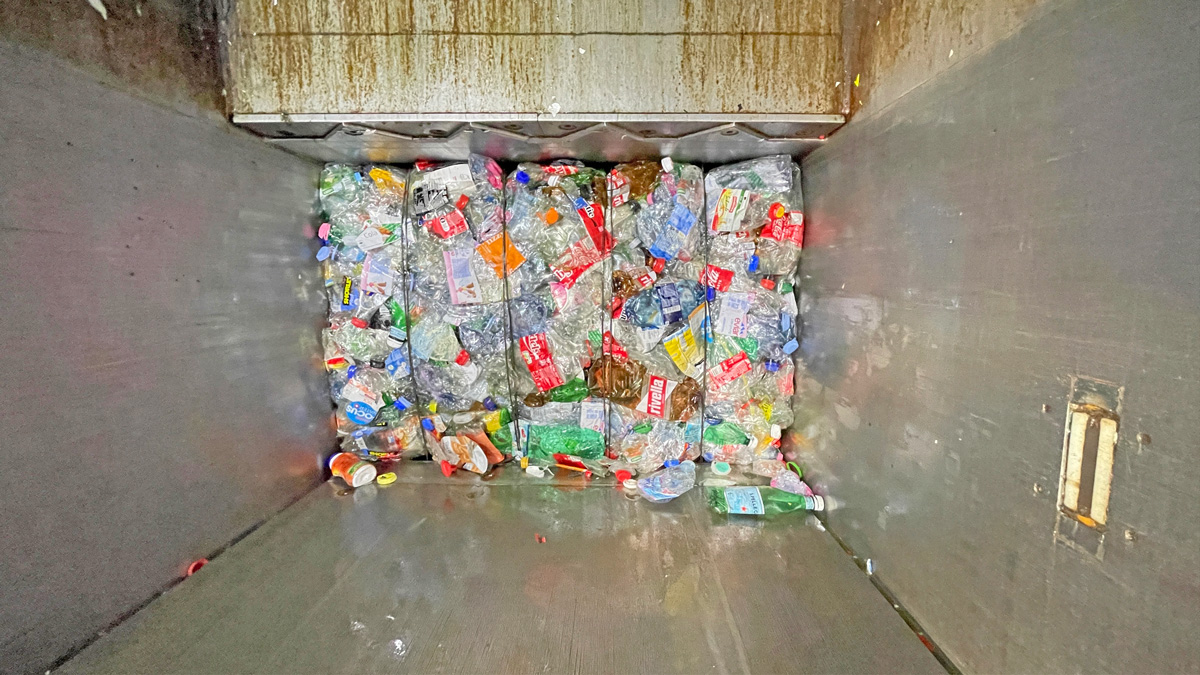

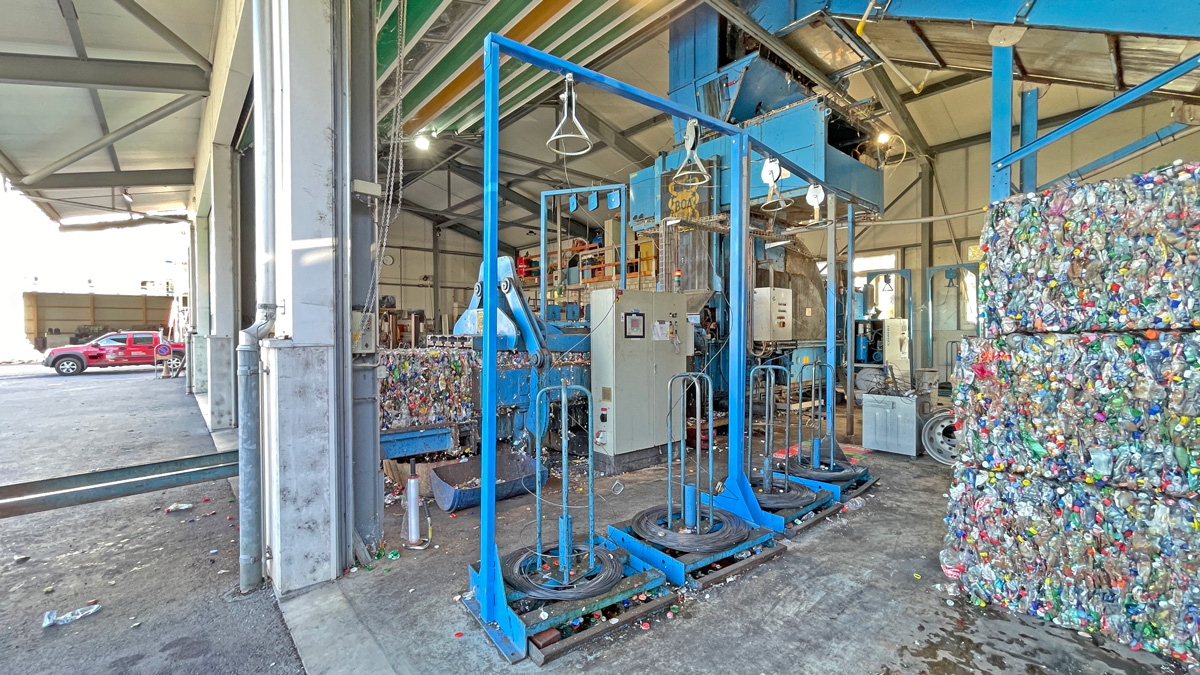

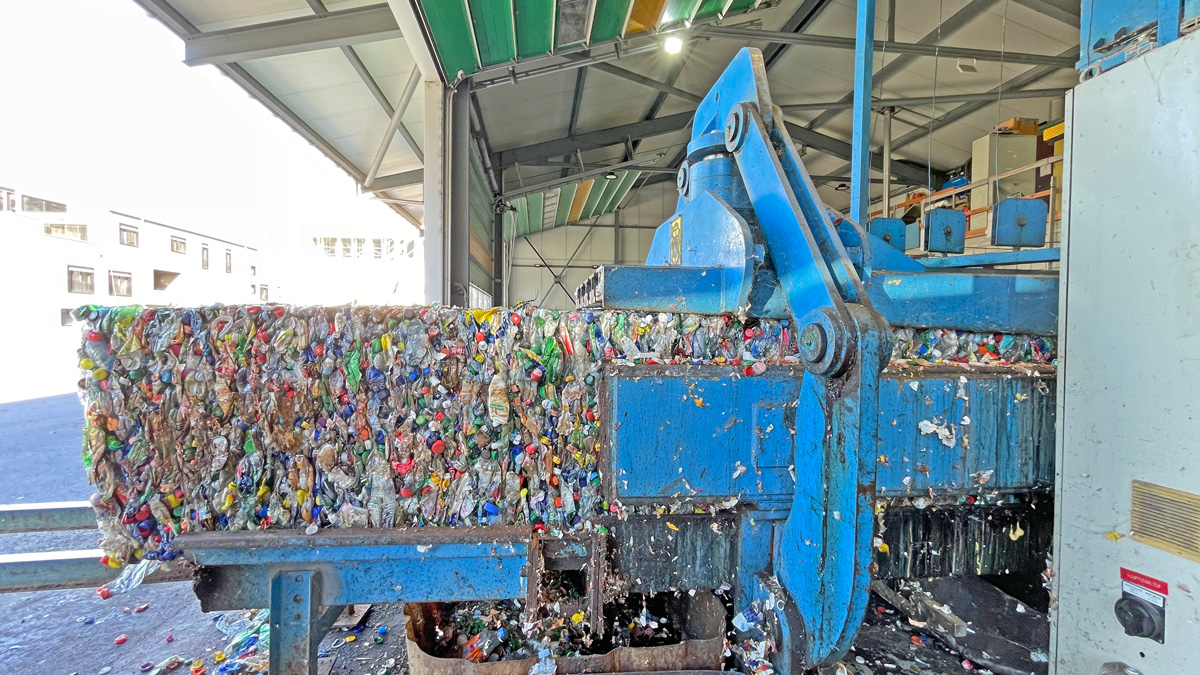

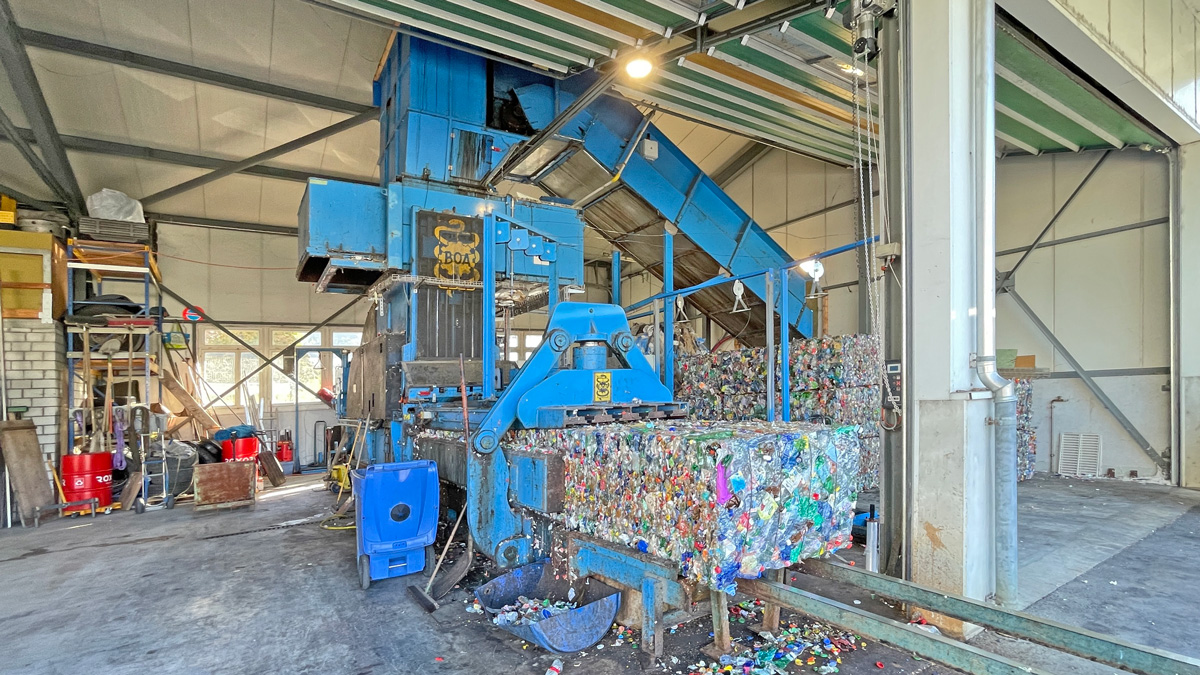

The machines were used in a PET recycling plant for compressing sorted PET bottles. As part of the production plant, the machines were regularly maintained and are in good condition, ready for immediate use.

Comments:

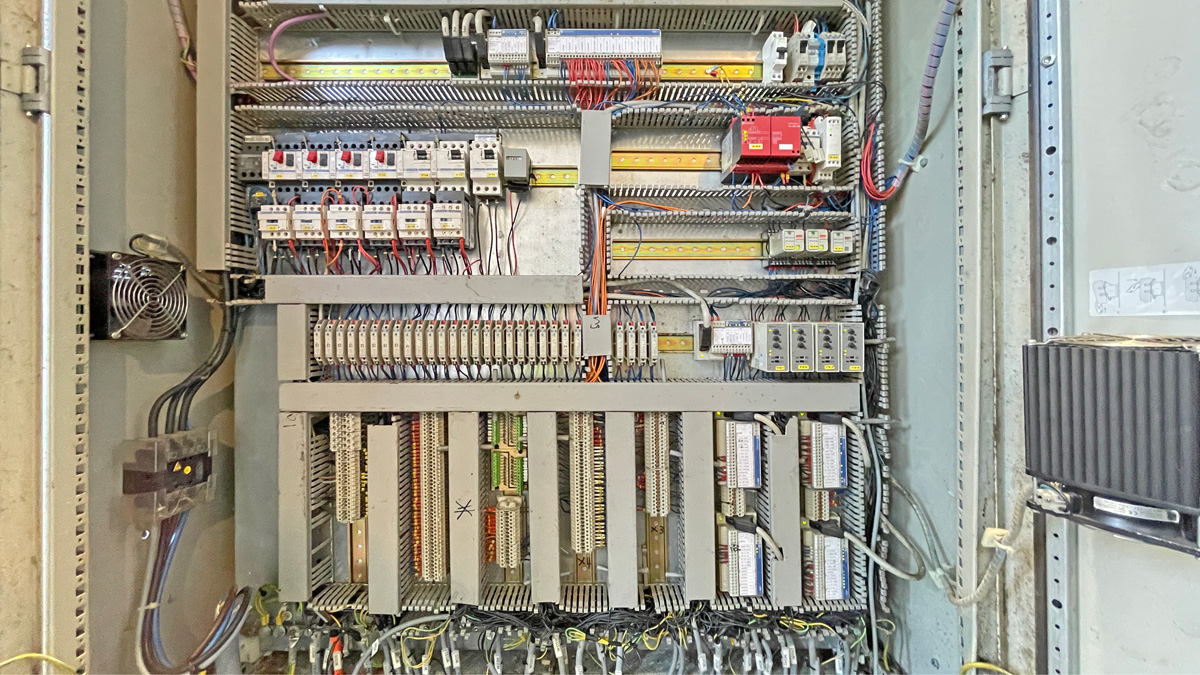

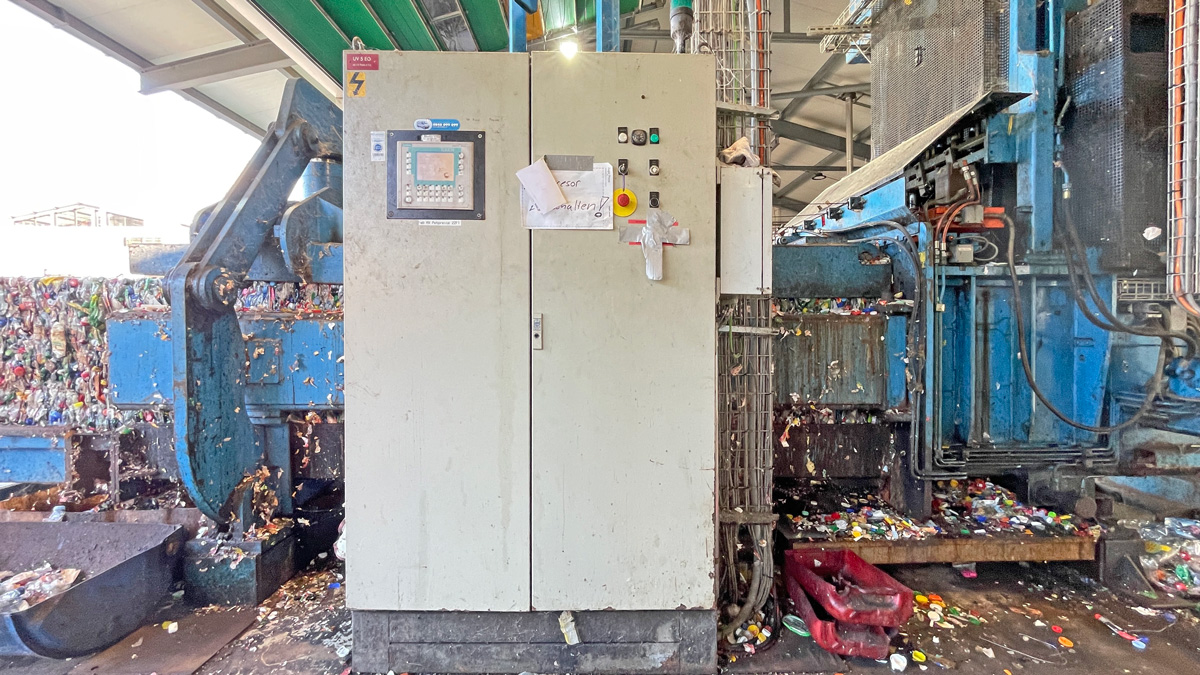

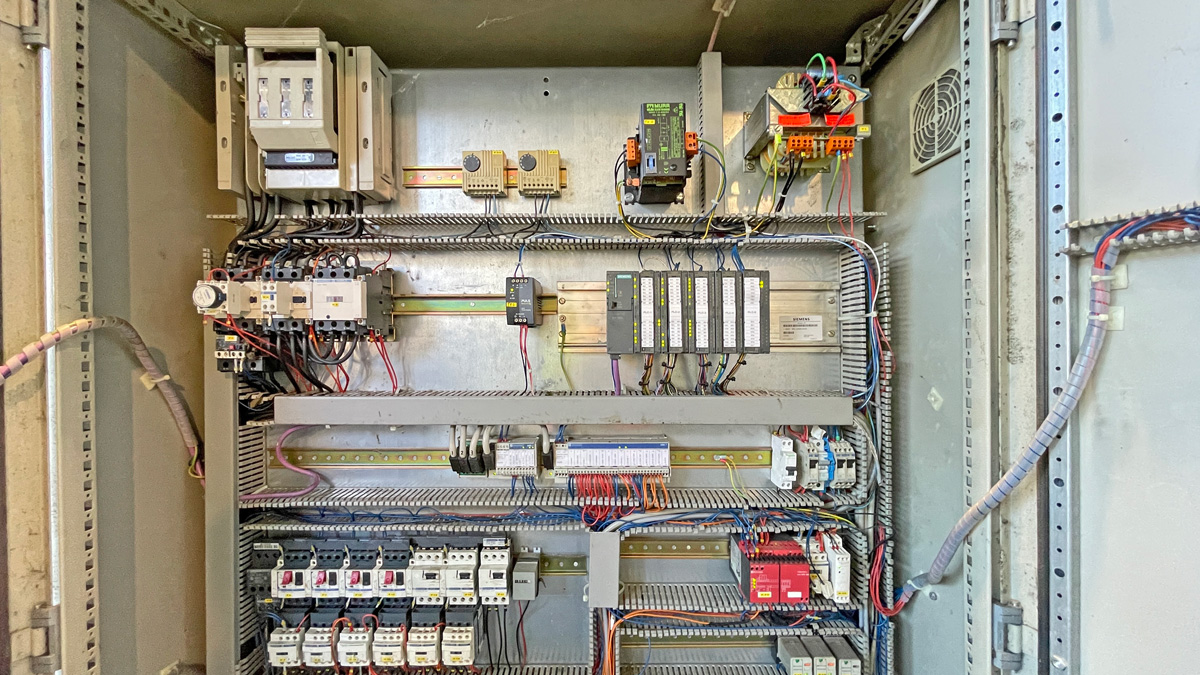

The documentation (operating instructions, CE declaration, electrical and hydraulic circuit diagrams) for the press is available. An inspection is possible by arrangement. We do not accept any liability for the technical specifications or any errors.
