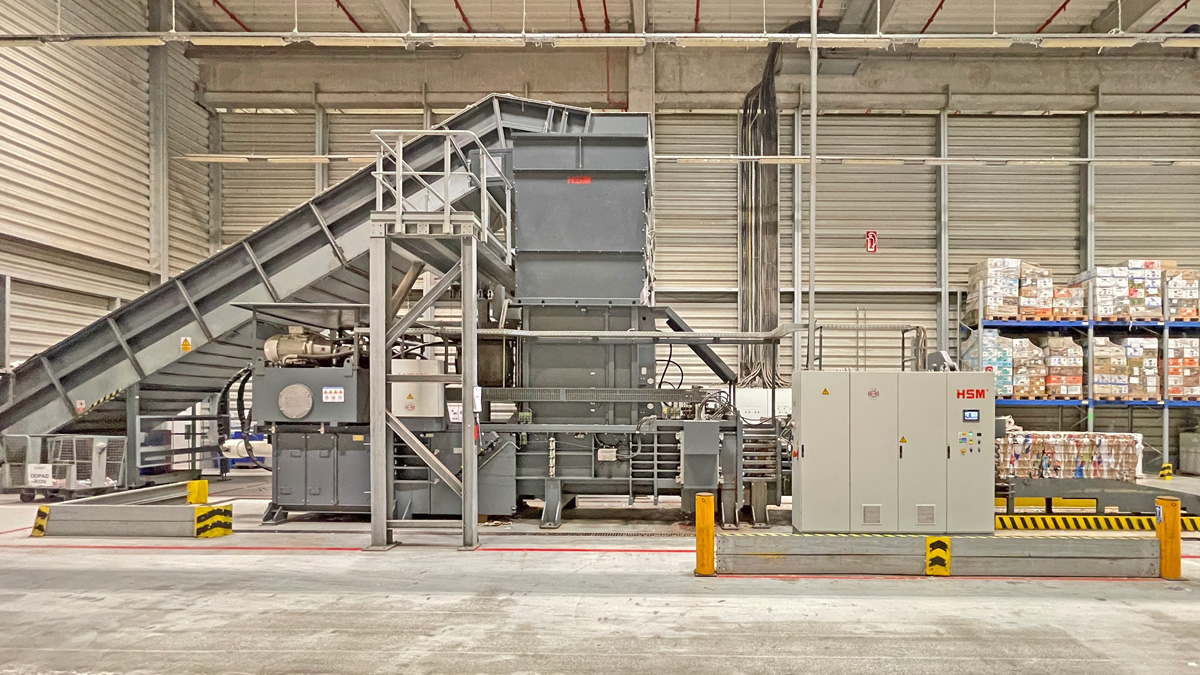

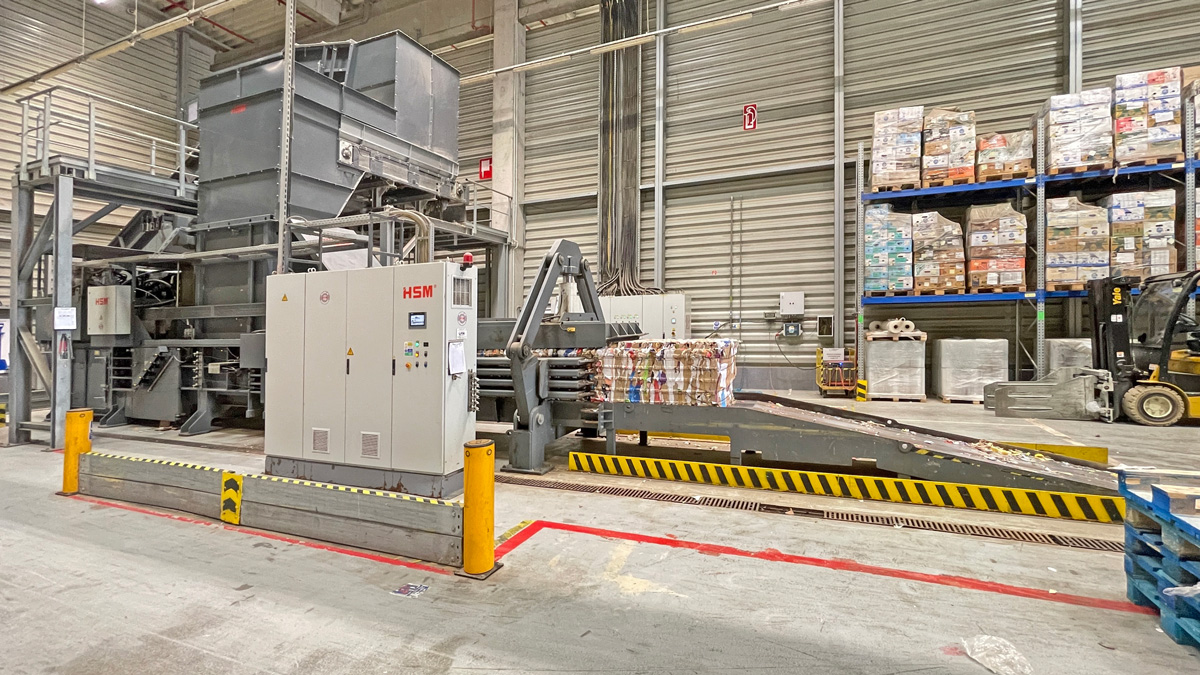

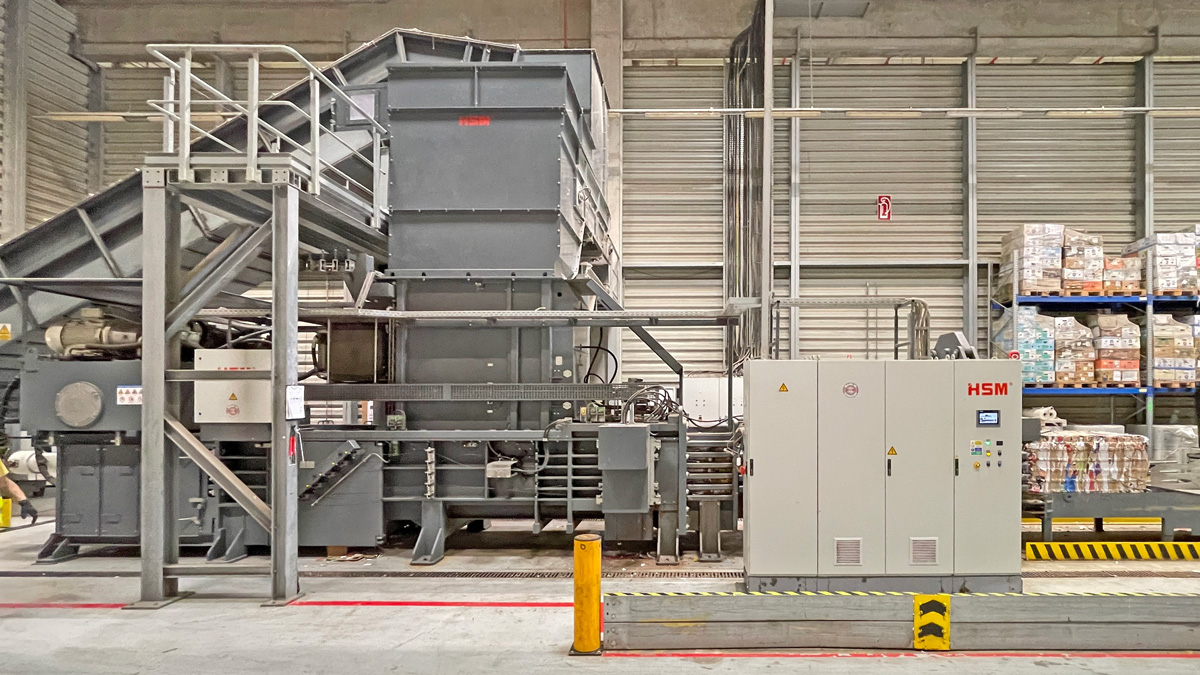

Baler HSM, type VK 8818 R-FU, 100 t pressing force, yoc 2015, only 19,750 operating hours, drive 2 x 45 kW (frequency-controlled), with complete conveyor technology

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

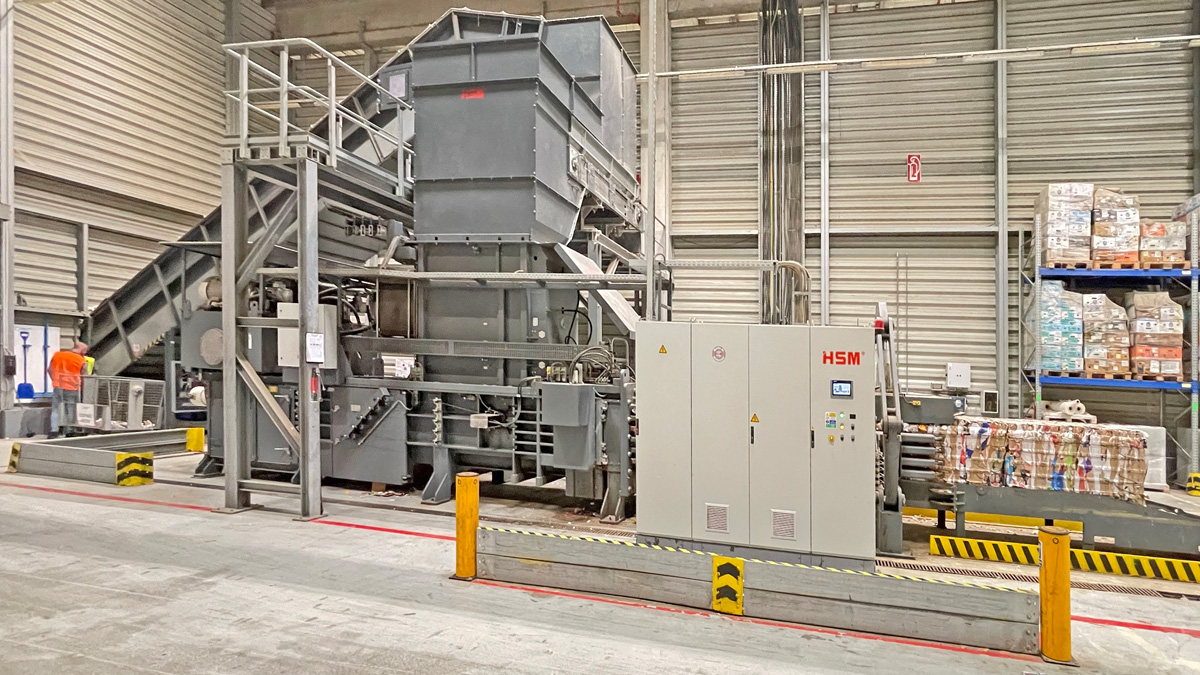

Technical data baler:

Manufacturer HSM GmbH + Co. KG, Germany

Type VK 8818 R-FU

Year of construction 2015

Operating hours 19,750 hours, as of July 2025

Number of bales pressed: 24,760 bales, as of July 2025

Main press force 1000 kN

Specific pressing force 120 N/cm²

Pressing force cutting edges free rammer 121 kN

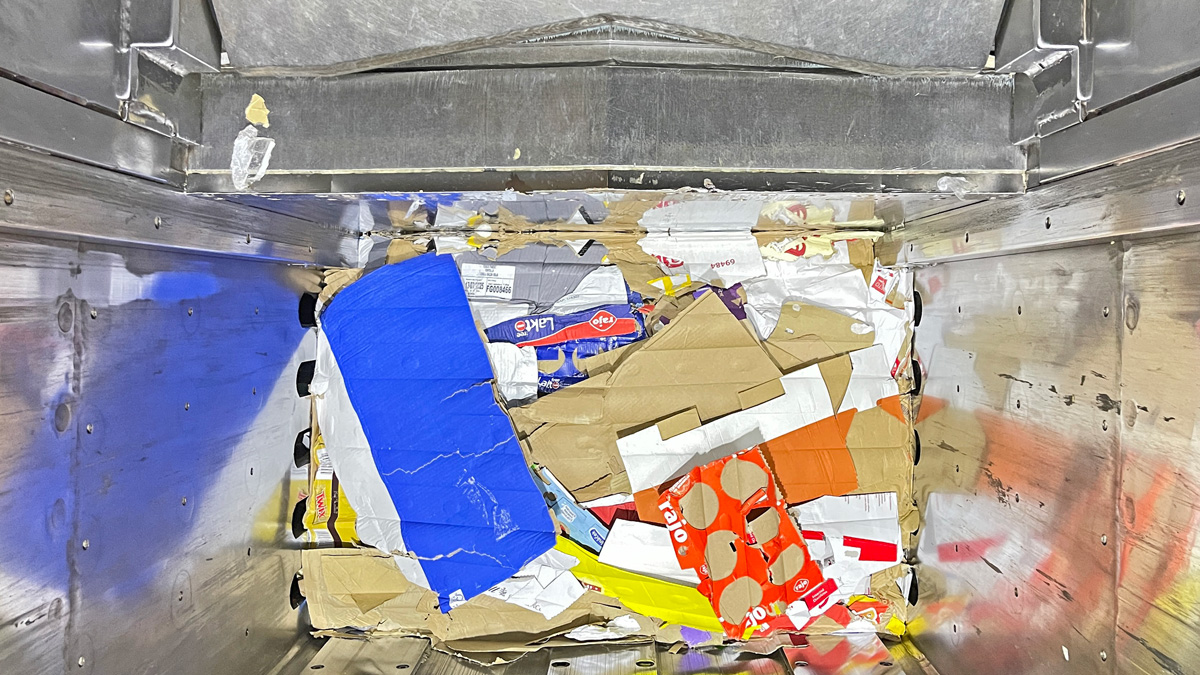

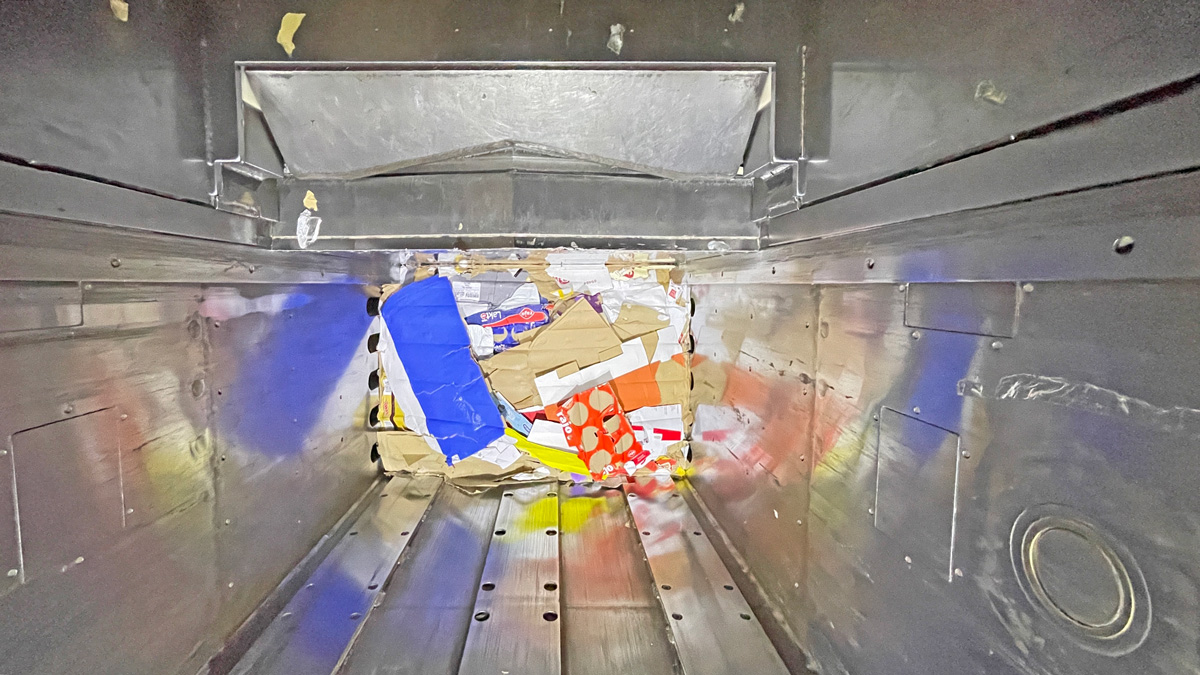

Dimensions of feed chute 970 x 1,800 mm

Theoretical cycle time in idle mode 8.3 seconds

Theoretical throughput capacity 643 m³/hour

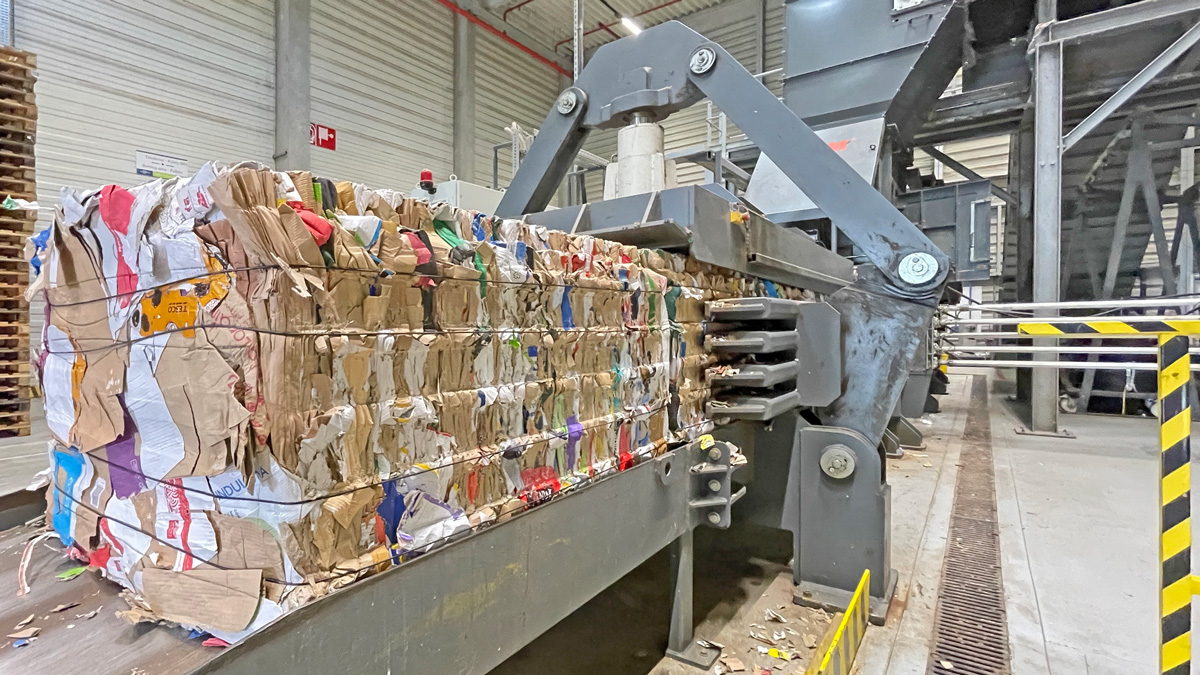

Bale dimensions 1,100 x 750 mm, the length is variable 600 up to 2000 mm

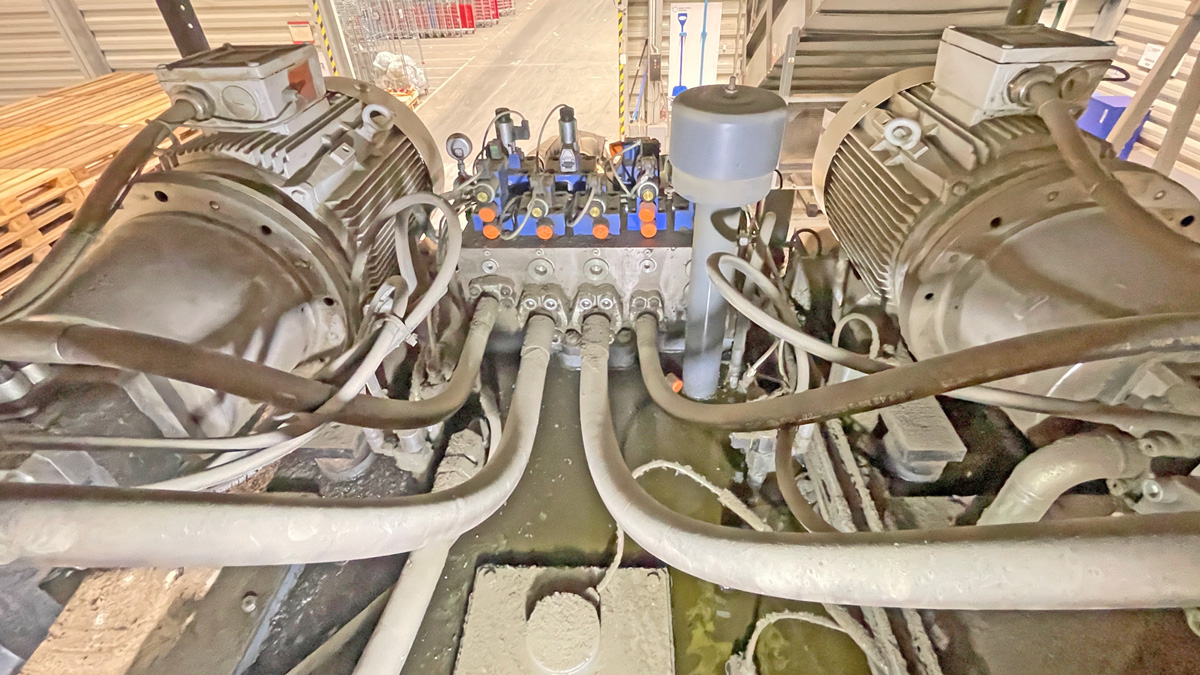

Drive power 2 x 45 kW  frequency-controlled

Connected load 110 kW

Total current consumption 213 A

Fuse protection 250 A slow-blow

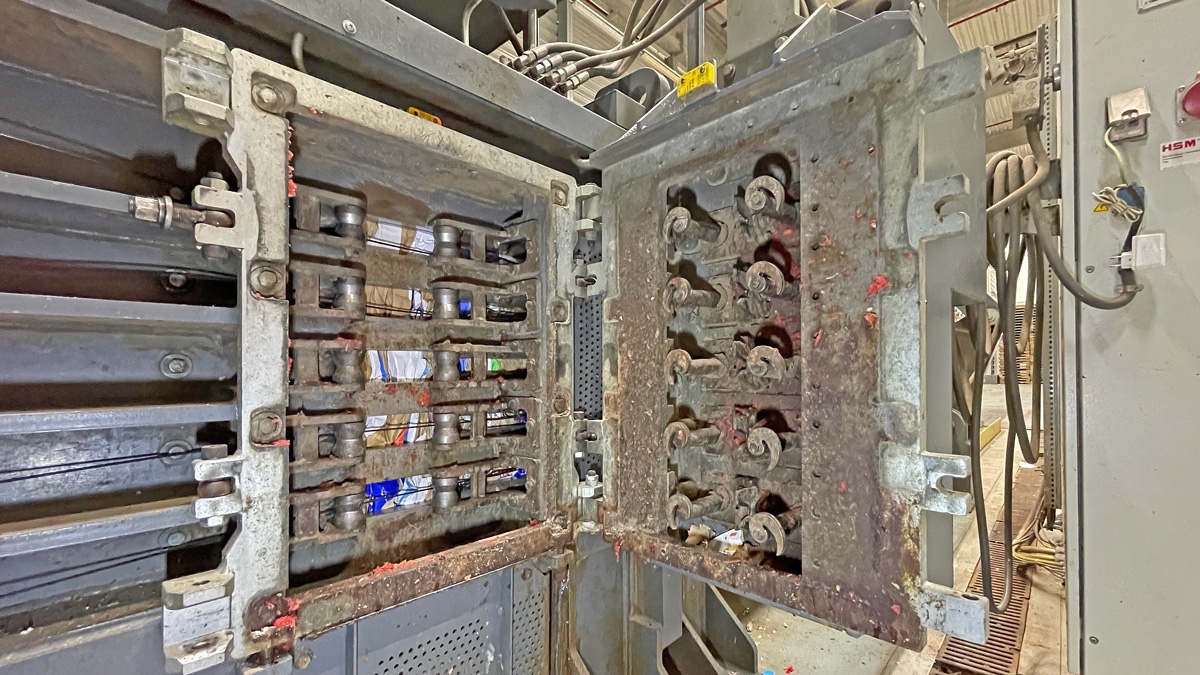

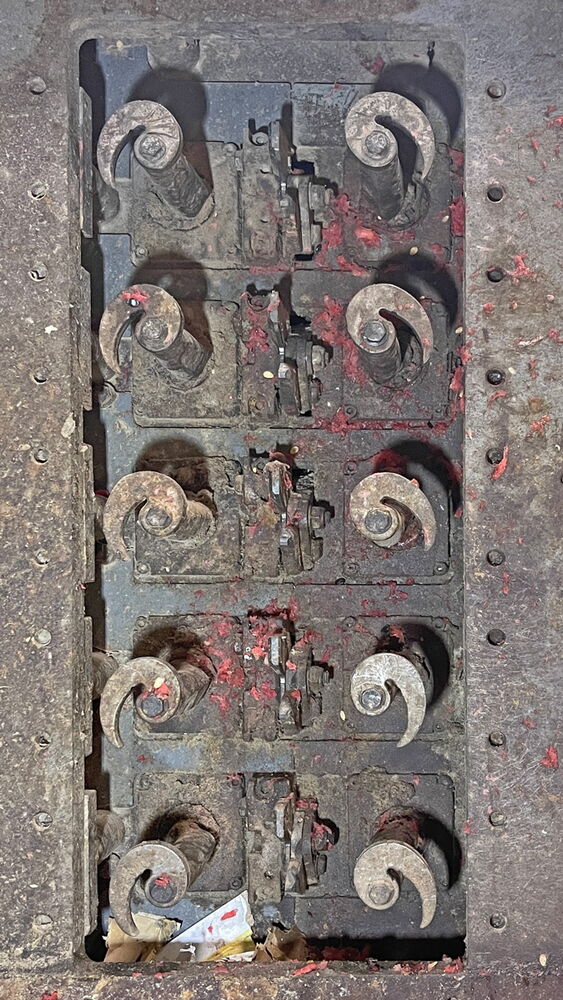

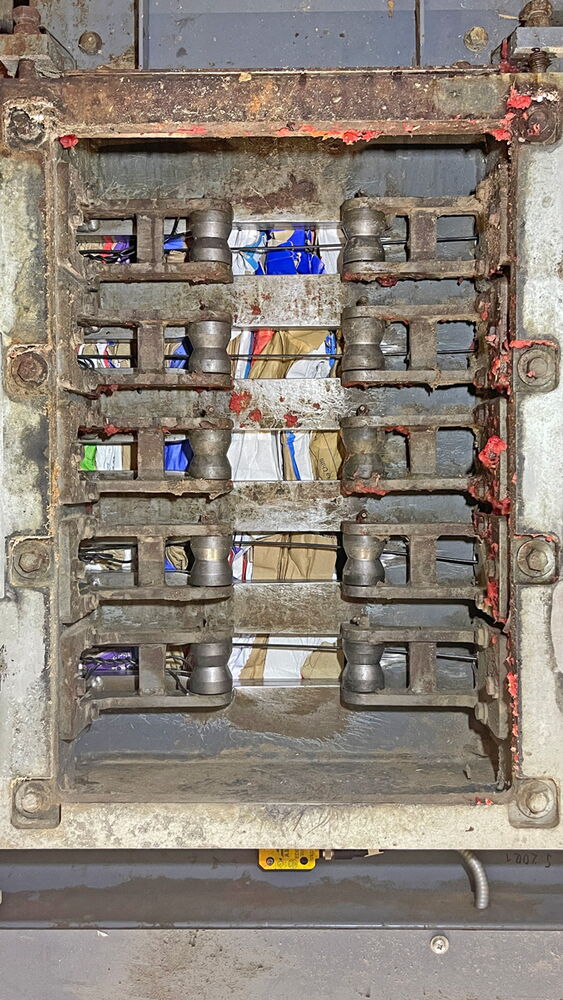

5-fold horizontal tying, fully automatic

Throughput rates with a

bulk density of 20 kg/cbm 12.86 t/hour

Bulk weight of 50 kg/cbm 32.15 t/hour

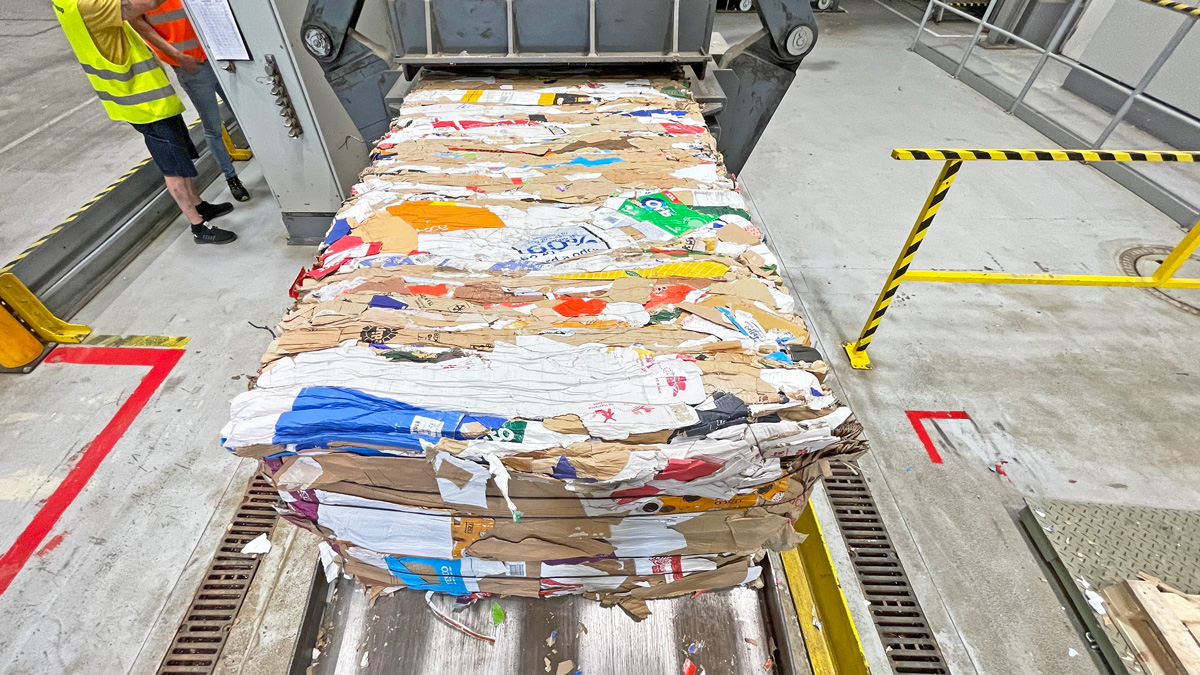

Bale weights with a bale length of approx. 1.2 m 650 up to 750 kg/bale, depends on materiel

Hydraulic oil tank capacity 2000 litres

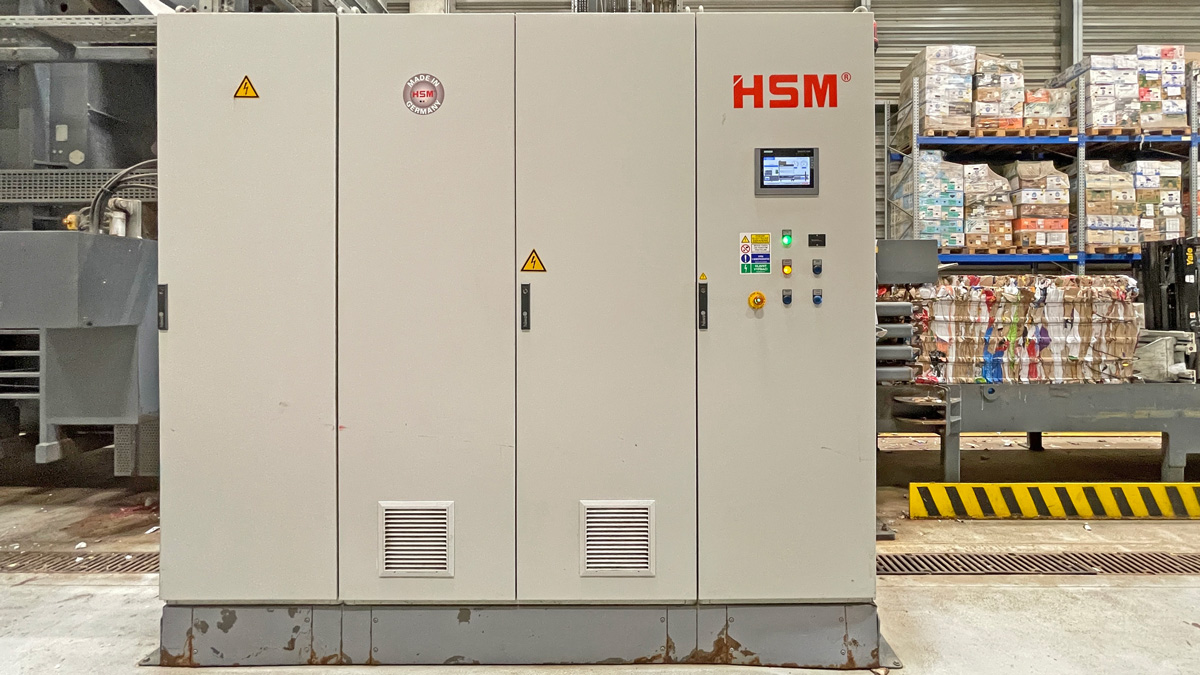

PLC control Siemens S7-300

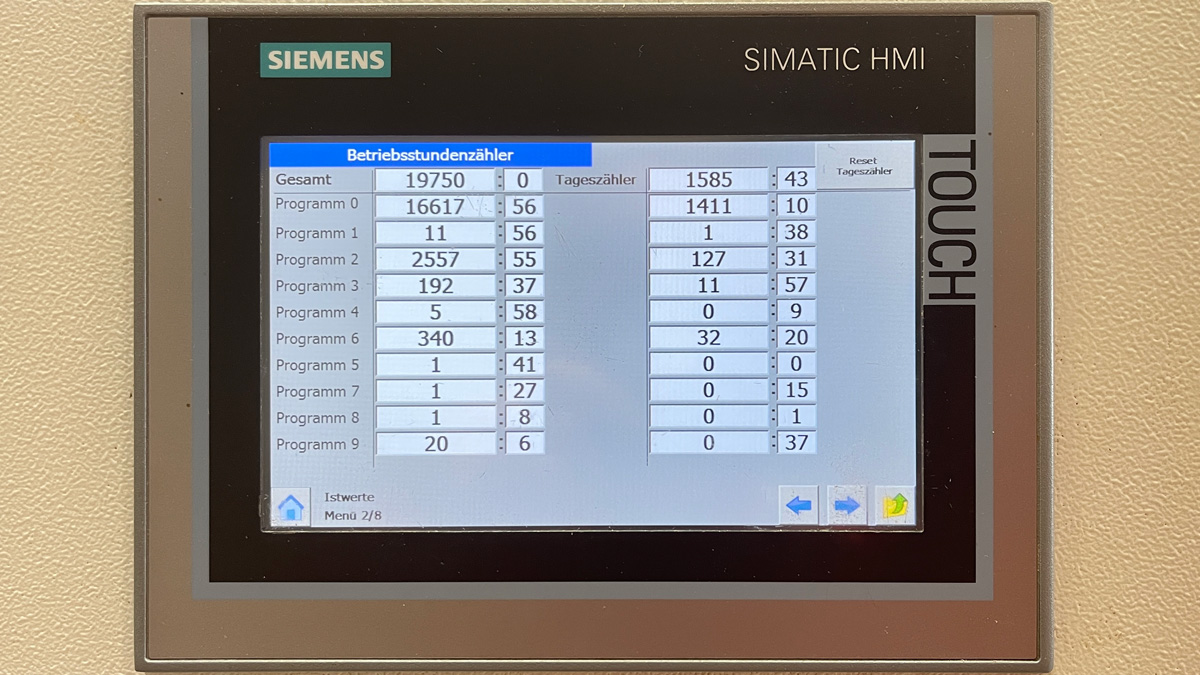

Siemens TP 700 control panel

Press dimensions assembled 12,130 x 4,800 x 3.270 mm (l x w x h)

Press dimensions with conveyor system 35,000 x 8,480 x 7,745 mm (l x w x h)

Transport weight baler approx 33 t (Main press approx. 12 t, press channel with bale clamp approx. 10 t)



Special machine equipment:

Access locking by means of key transfer system

Electro-hydraulic locking of the press carriage during the tying process so that the press plunger does not change position with highly expansive materials



Additional optional equipment ordered:

Frequency-controlled main drive, 2 x 45 kW, with up to 40 % energy savings compared to the standard motorisation 2 x 45 kW, with the same power output

Manual switch-off or switch-on of the number of strapping wires to save on strapping wire for non-expansive material

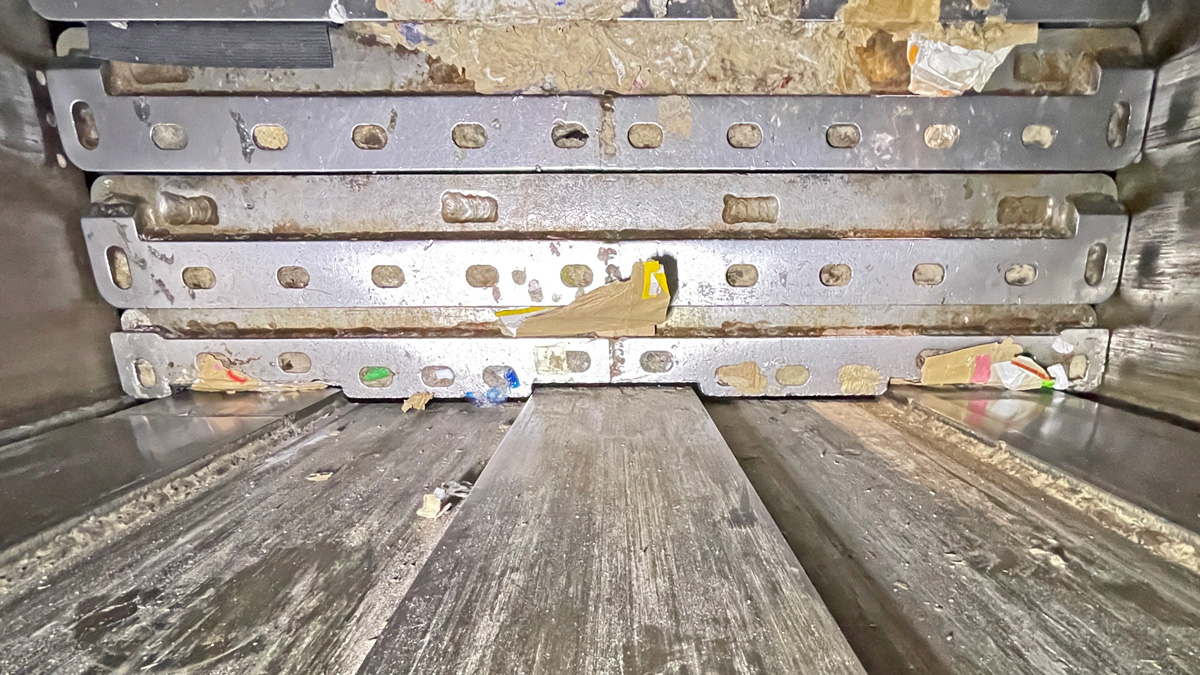

Cutting-edge frei rammer with 121 kN pressing force

Sensory wire monitoring, with press switch-off in the event of wire breakage or wire end

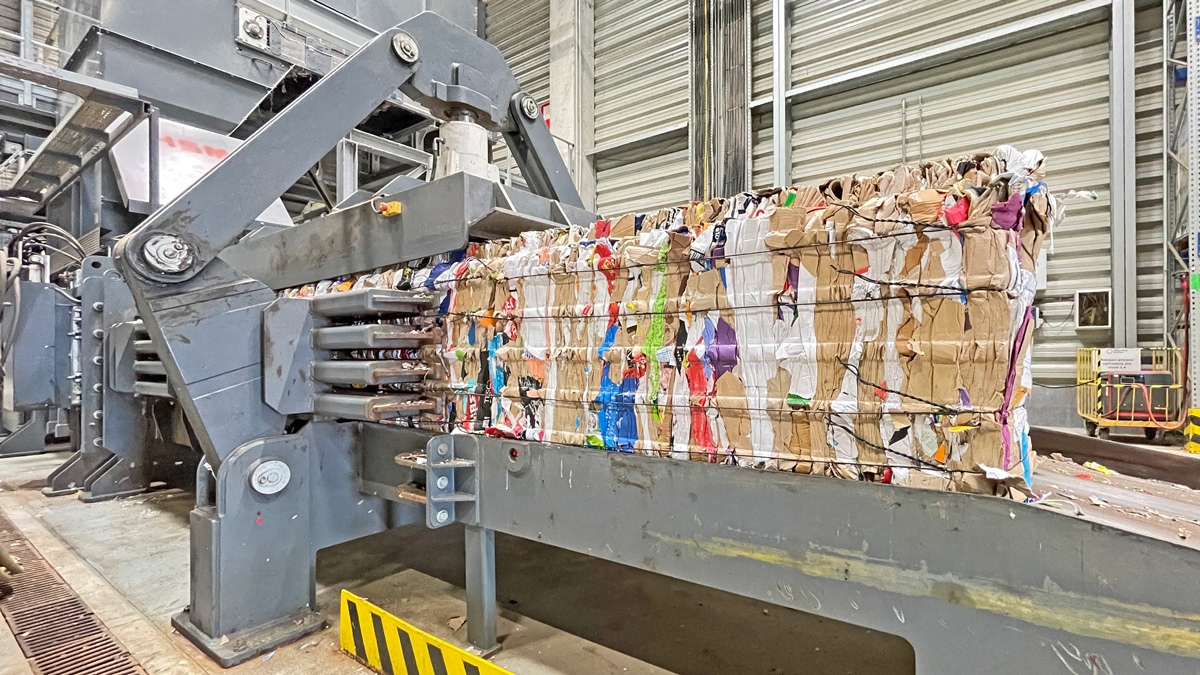

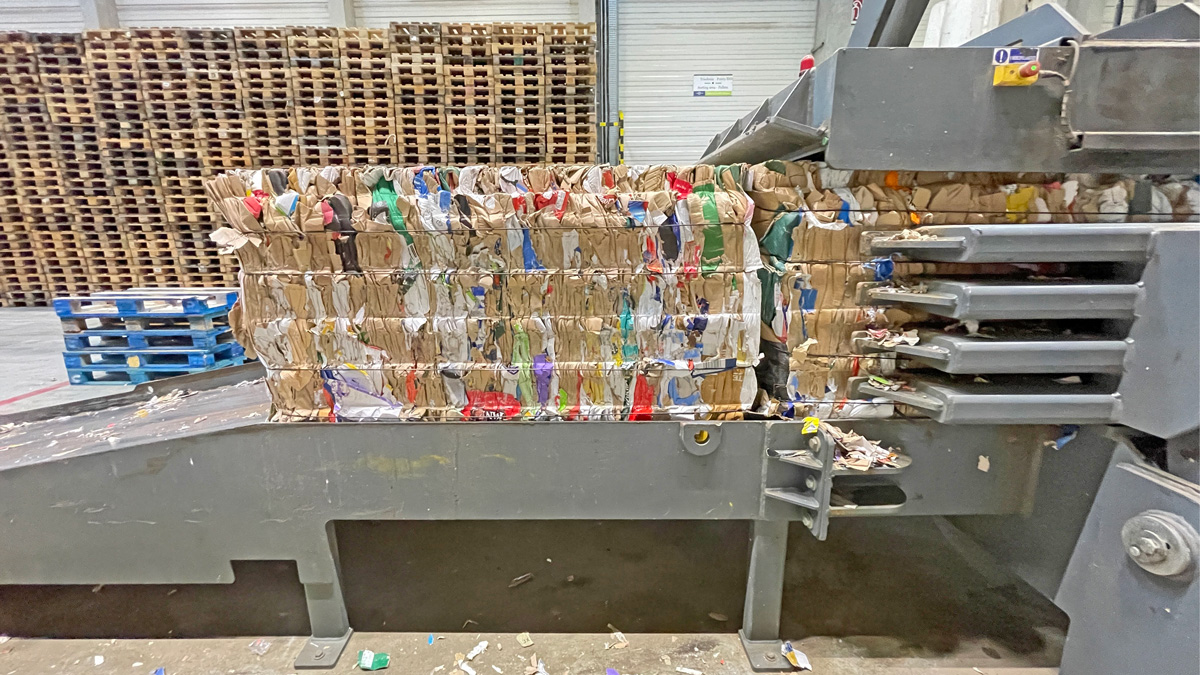

Bale chute

Visual warning signal, mounted on the control cabinet



Condition of the baler:

The entire baling system (baler and conveyor belt) is in good, operational condition and is cleaned, lubricated and maintained by the operator on a weekly basis in accordance with the manufacturer's specifications.

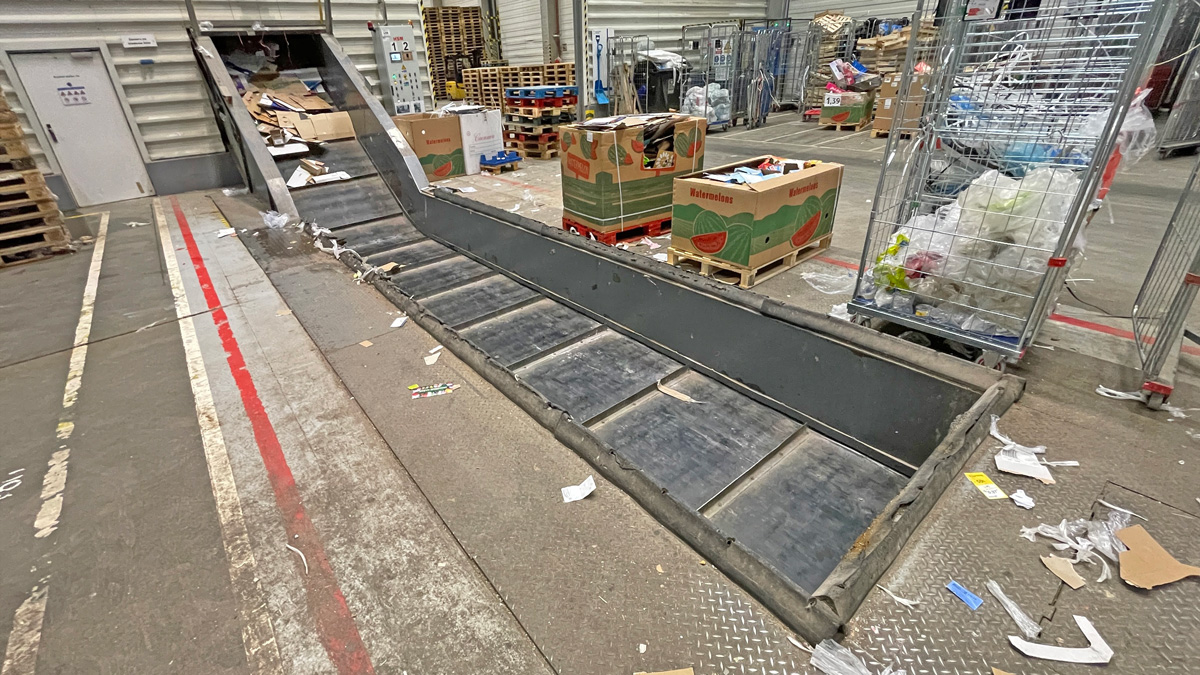

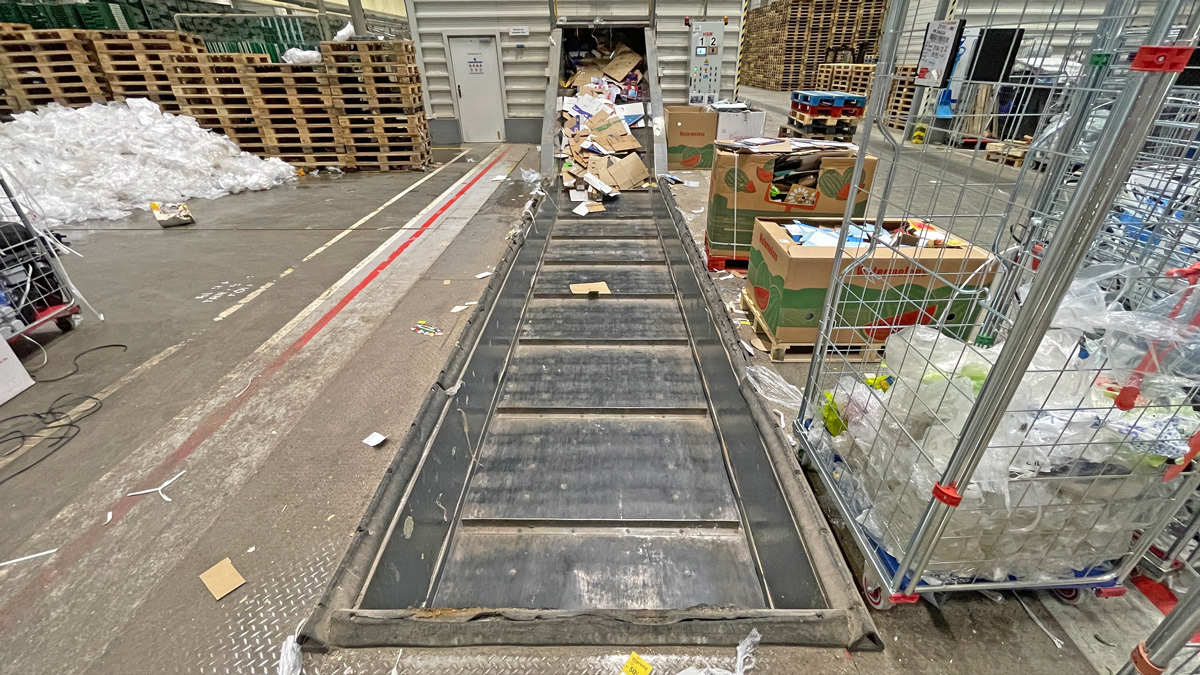

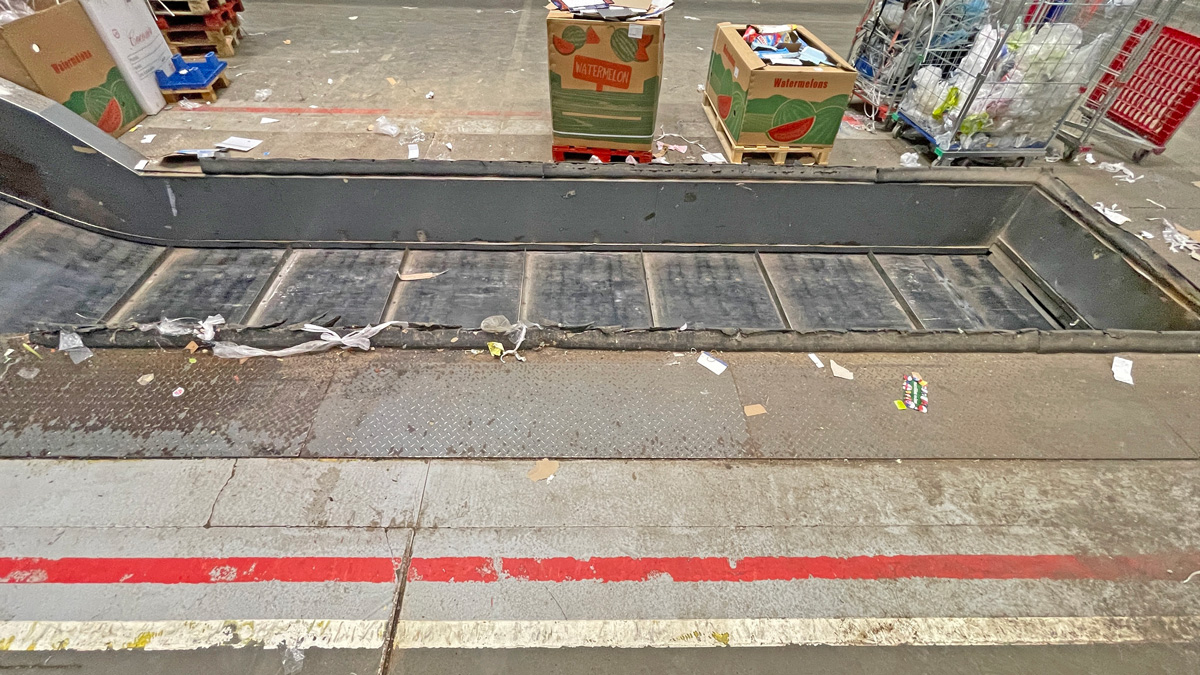

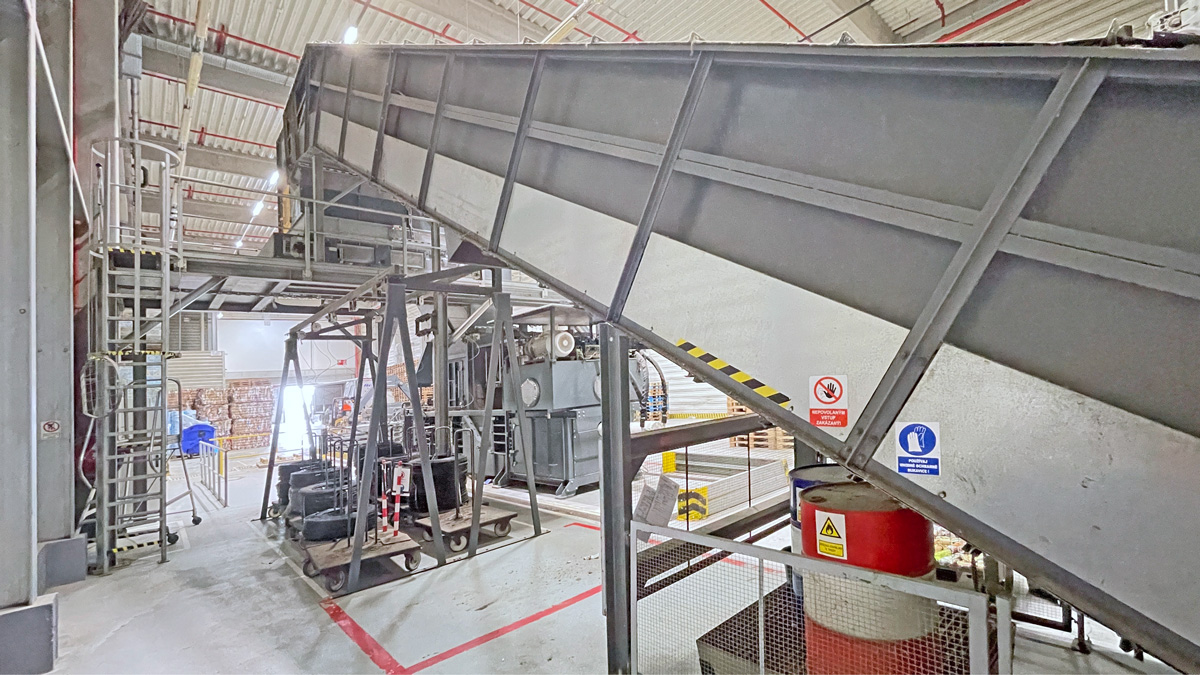

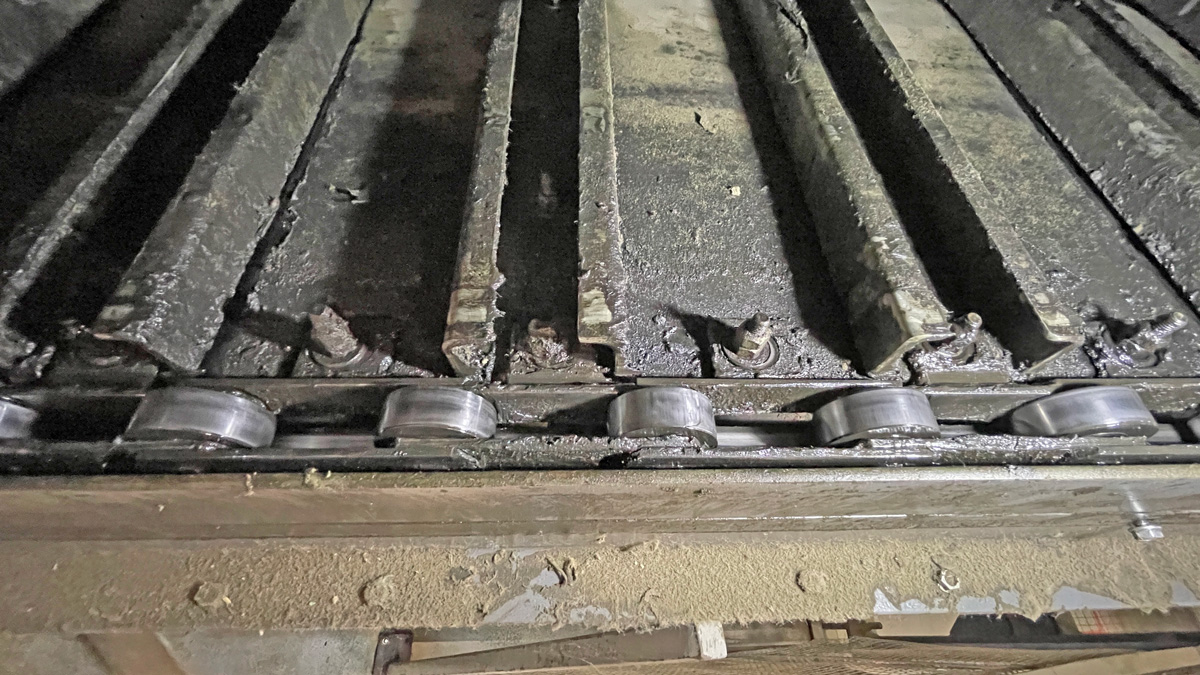

Technical data for the chain belt conveyor:

Manufacturer Stadler Anlagenbau GmbH

Typ chain belt conveyor KF 1800

Year of construction 2015

Belt speed 0,36 m/sec.

Length feeding conveyor 7,000 mm

Length elevating conveyor 14,500 mm

Length goose neck 1,550 mm

Grade 30°

Nominal width 1,800 mm

Effecting width 1,638 mm

Height conveyor over all 7,745 mm

Pit dimensions to conveyor belt 11,200 x 3,000 x 1,250 (l x w x h)



Scope of delivery:

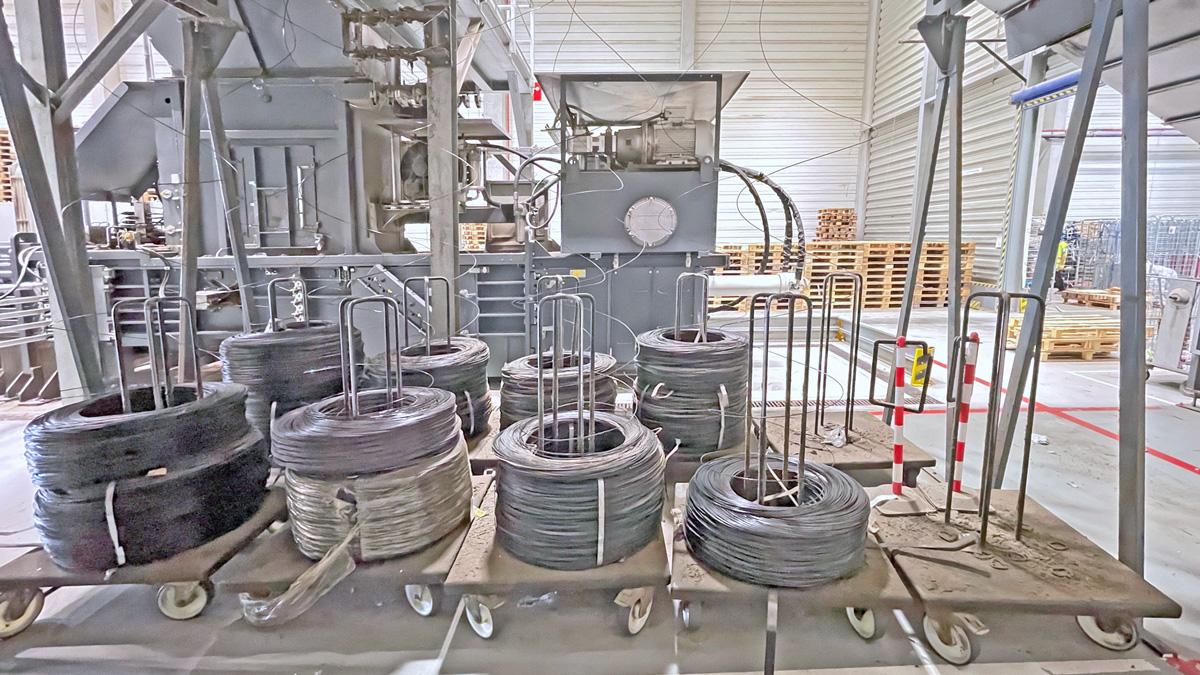

The conveyor belt, the transverse distribution belt and the baling press are for sale, with bale chute but without wire pulling stations and without wire.



Comments:

The documentation (Manual, CE-declaration, electr./hydr.-drawings), are completely available.  Inspections are possible after agreement.  We will not assume liability for the given technical data and possible errors.

Please note:

  • All technical data refer to specifications of producer/owner. We will not assume liability for the given statements and possible errors.
  • This offer is non-binding, prior sale excepted und revocable at any time.
  • Inspections possible after agreement.
  • The sale is ex location, as it stands and lays, without liability and guarantee.
