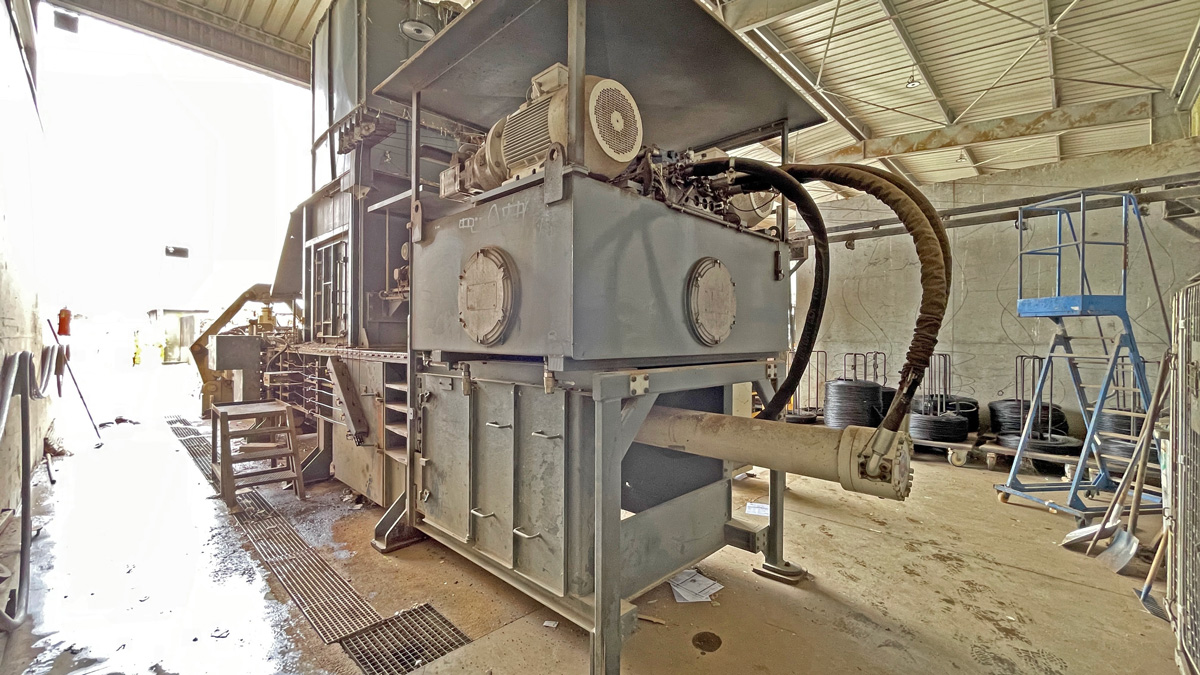

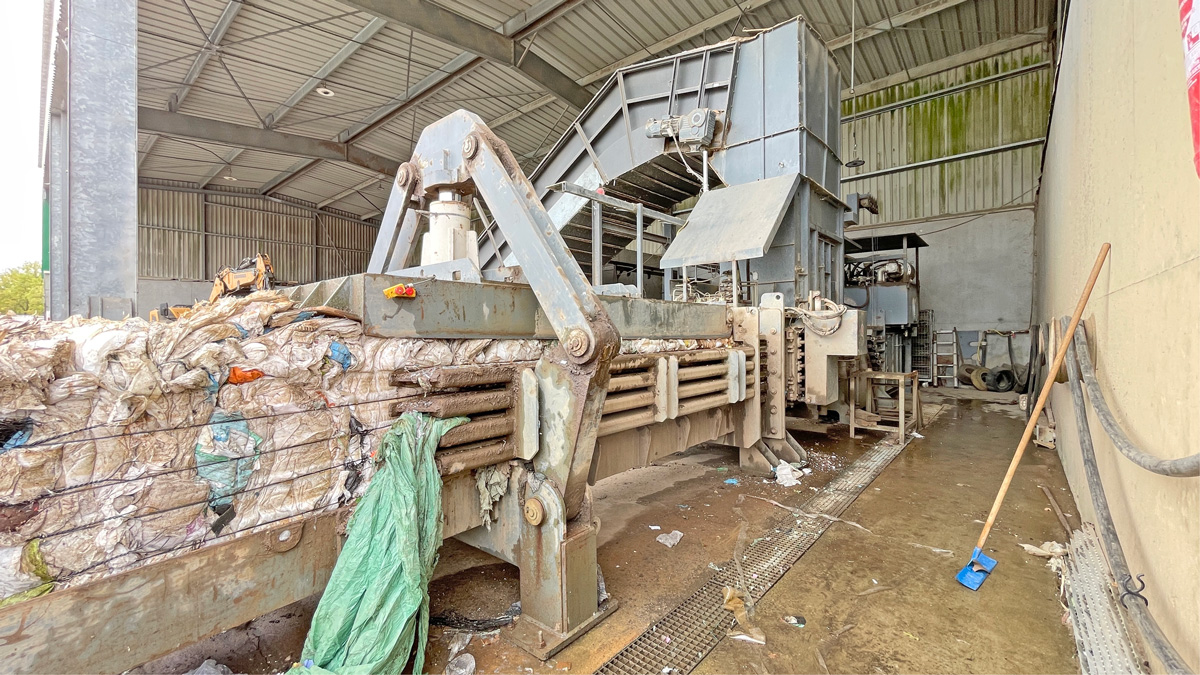

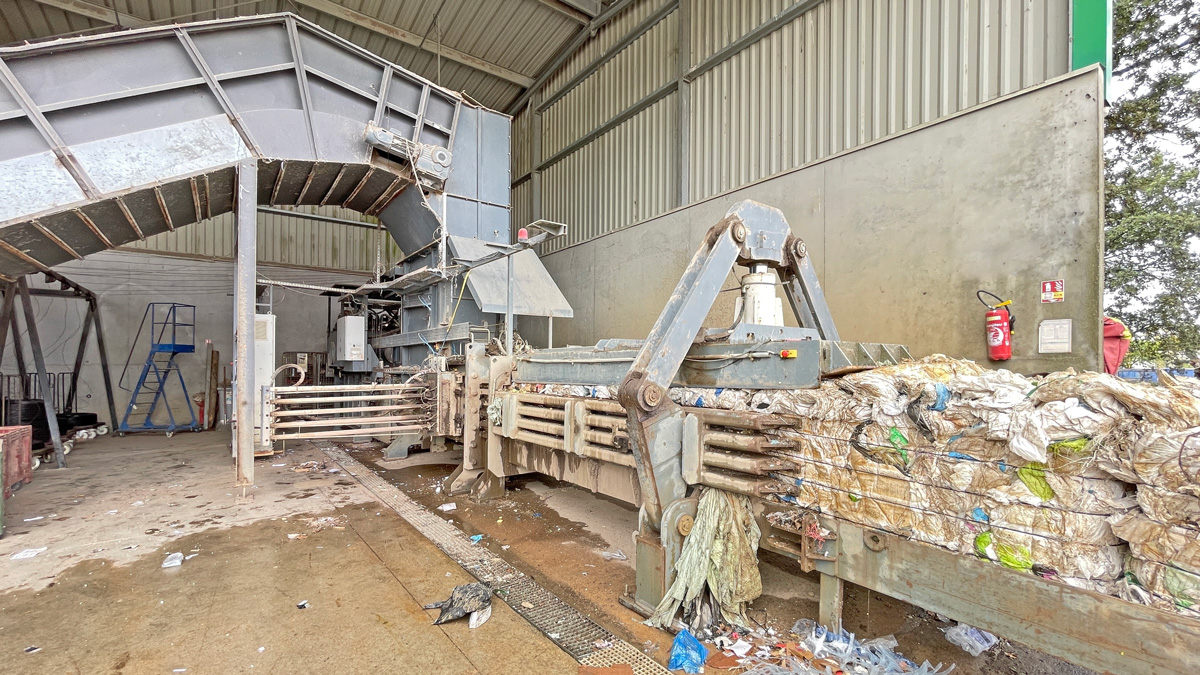

Baler HSM, type VK 8818 R-FU, 880 kN pressing force, yoc 2012, only 12,078 operating hours, drive power 2 x 45 kW frequency controlled, incl. conveyor system
|
Technical data baler: |
|
Manufacturer HSM GmbH + Co. KG, Germany |
|
Type VK 8818 R-FU |
|
Year of construction 2012 |
|

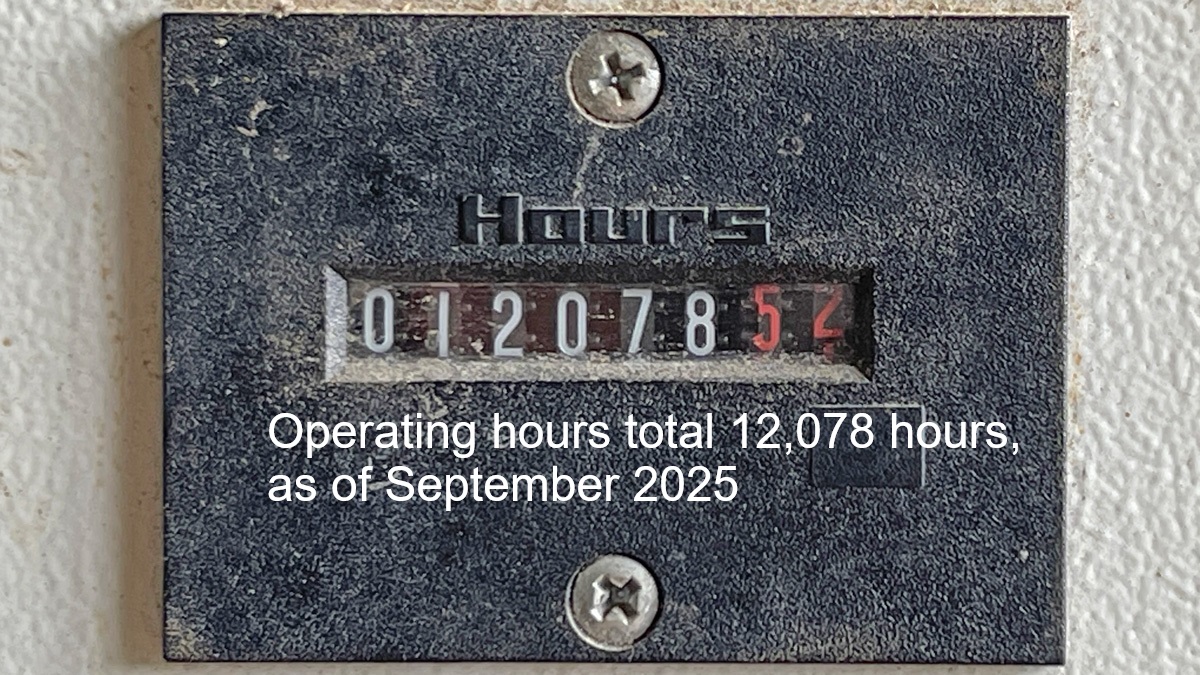

Total operating hours: 12,078 hours, as of September 2025 |
|

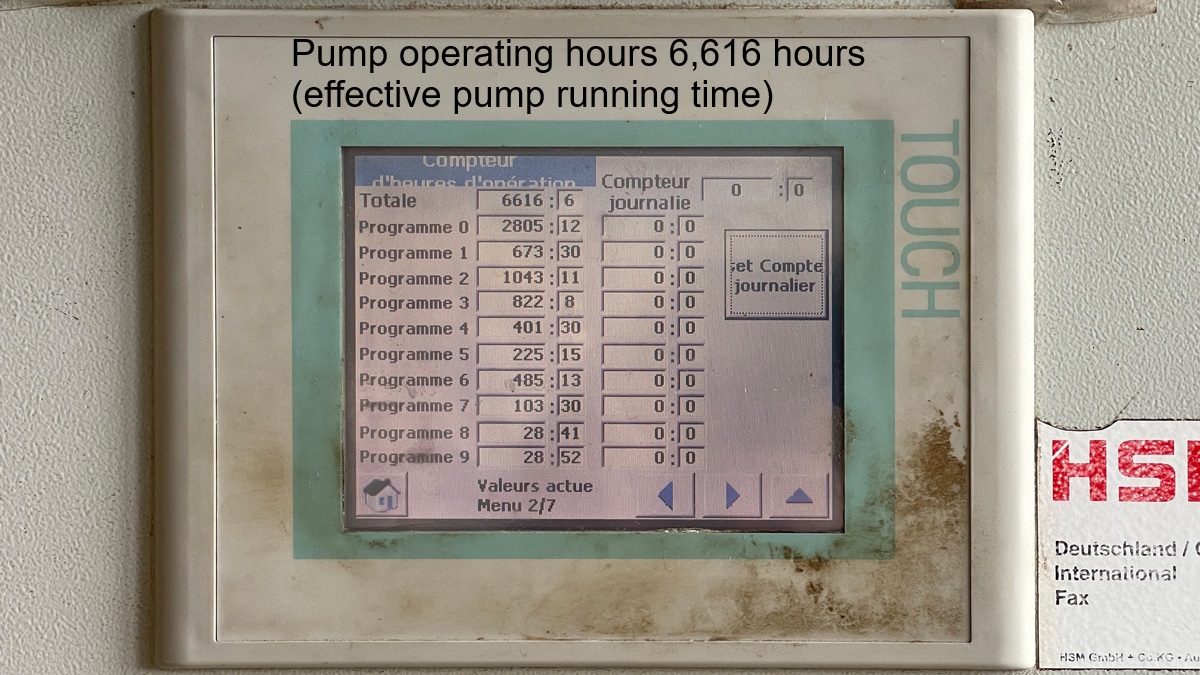

Pump operating hours 6,616 hours (effective pump running time) |
|

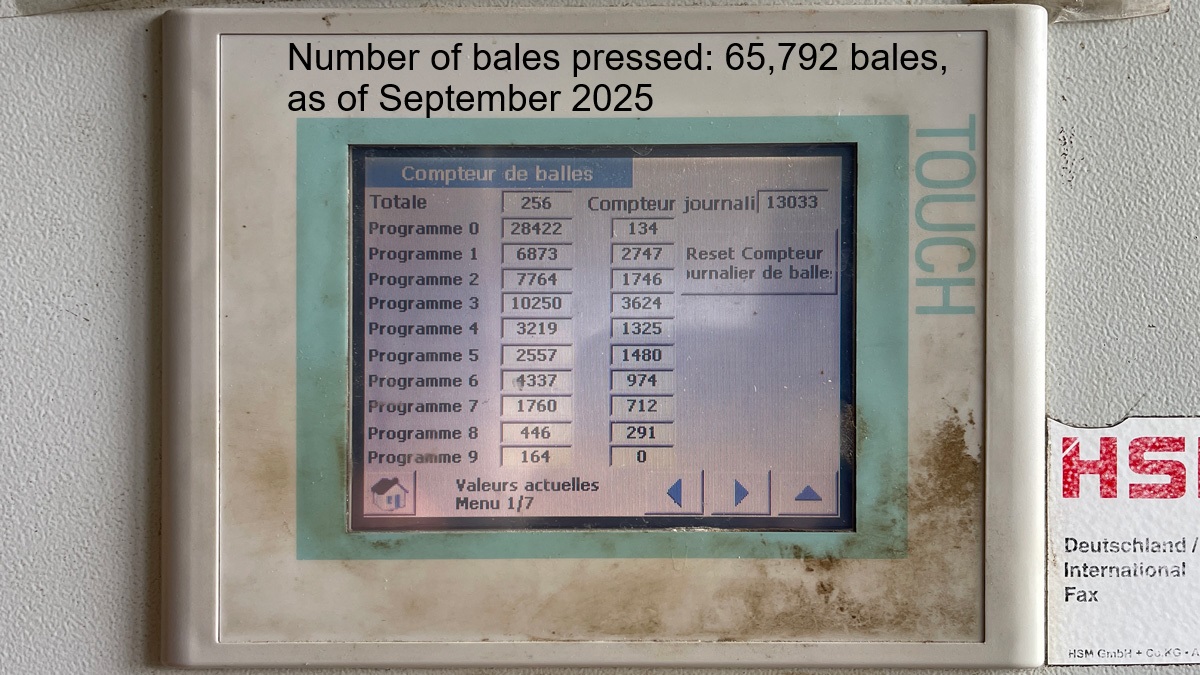

Number of bales pressed: 65,792 bales, as of September 2025 |
|
Main press force 880 kN |
|
Specific pressing force 120 N/cm² |
|
Pressing force cutting edges free rammer 120 kN |
|
Dimensions of feed chute 970 x 1,800 mm |
|
Theoretical cycle time in idle mode 8.3 seconds |
|
Theoretical throughput capacity 643 m³/hour |
|
Bale dimensions 1,100 x 750 mm, the length is variable 600 up to 2000 mm |
|

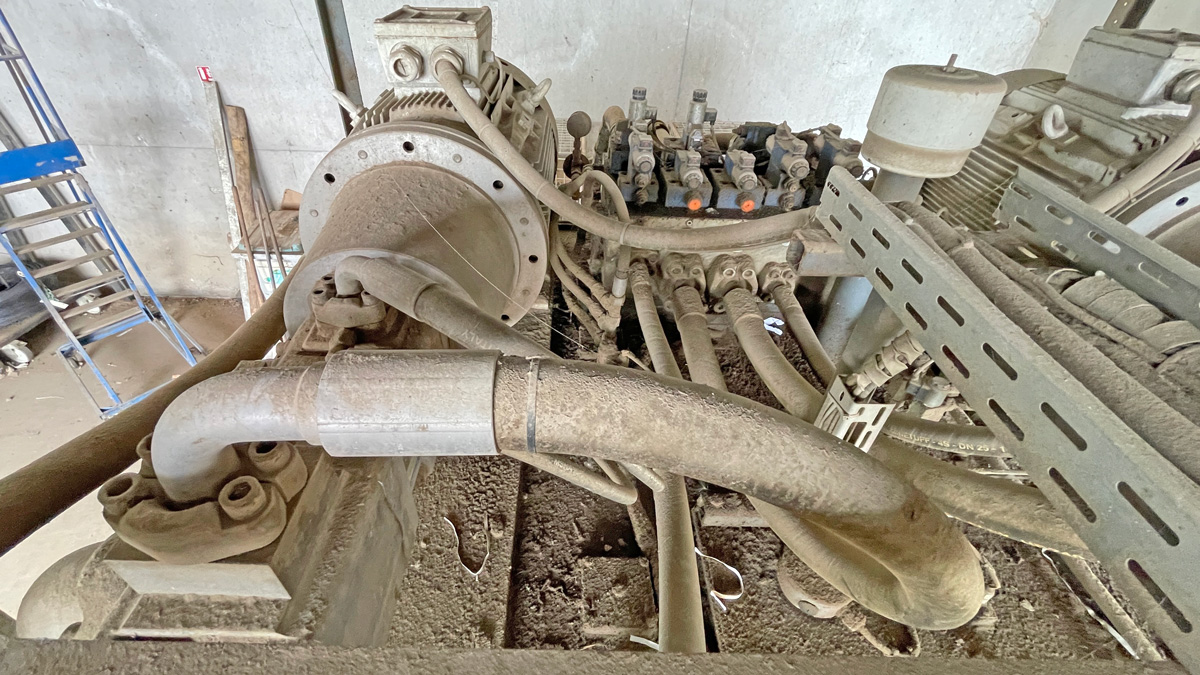

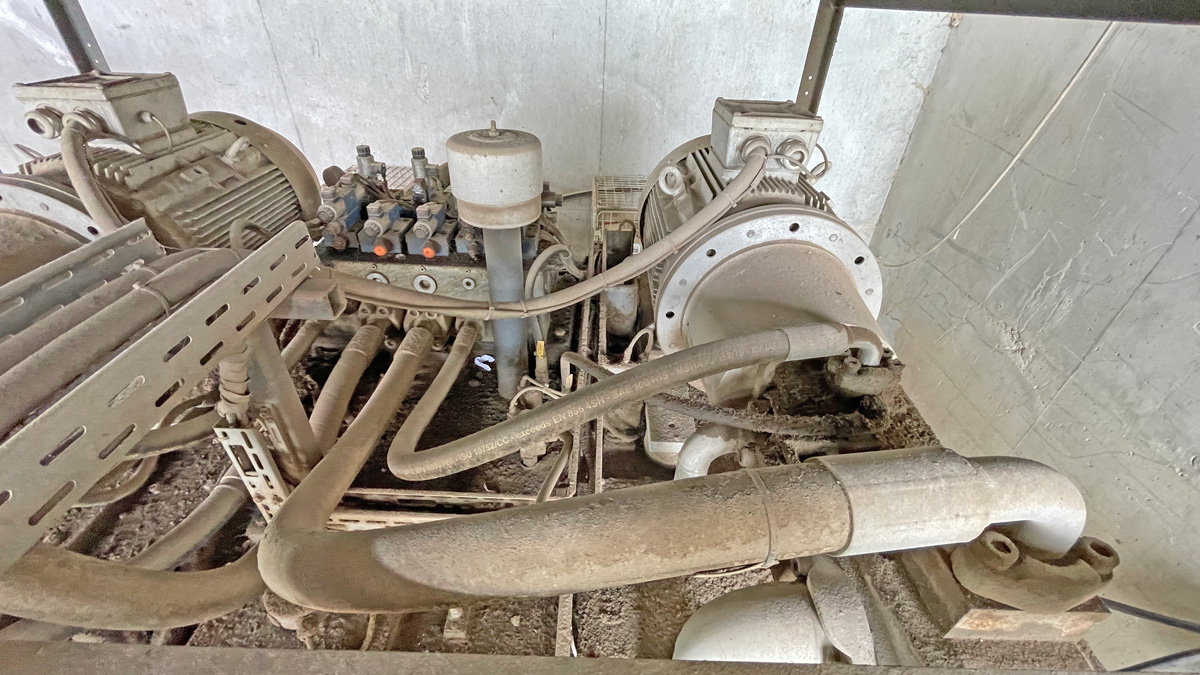

Drive power 2 x 45 kW frequency-controlled |
|
Connected load 98 kW |
|
Total current consumption 192 A |
|
Fuse protection 250 A slow-blow |
|

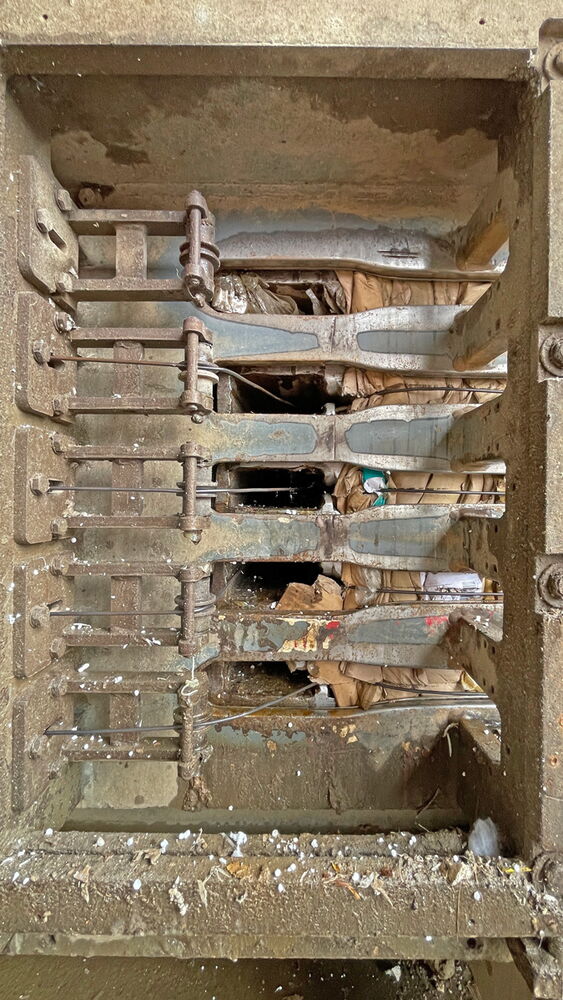

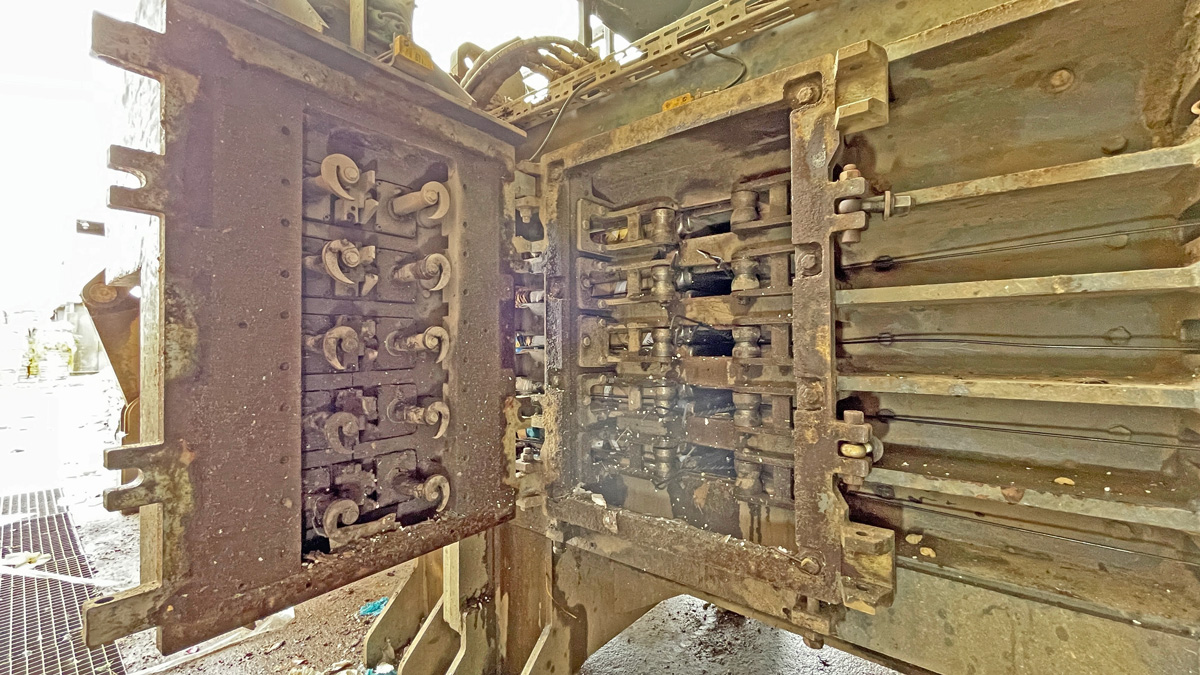

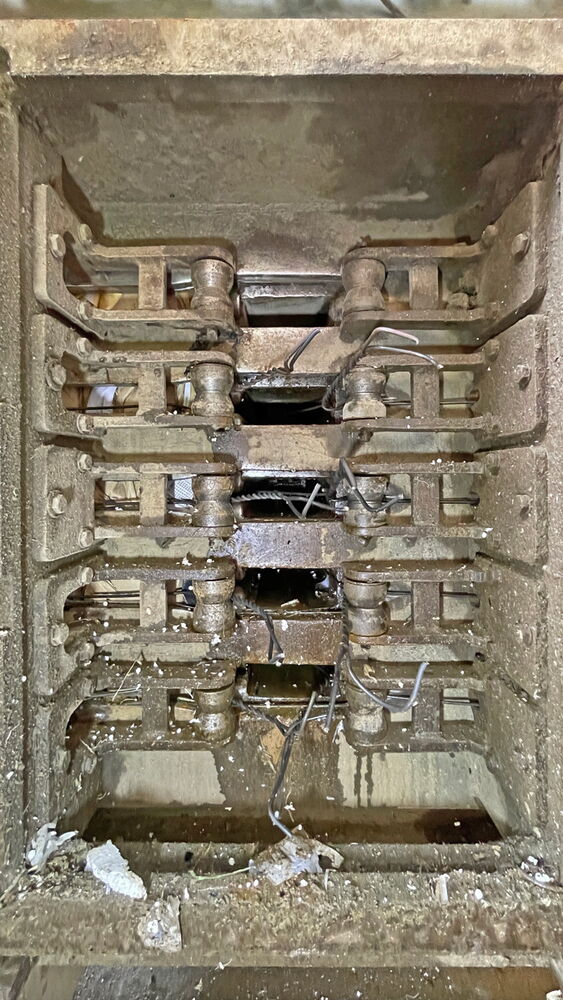

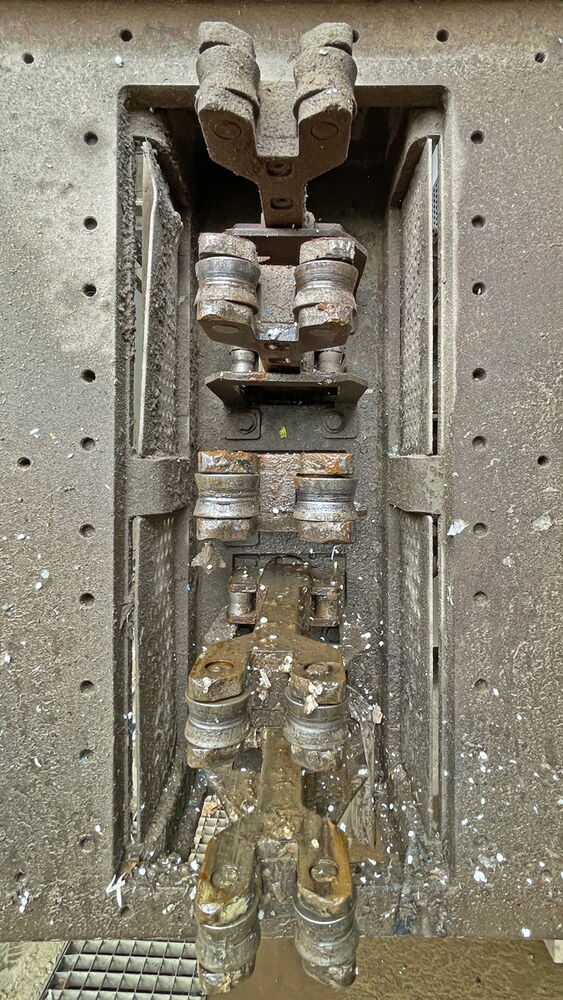

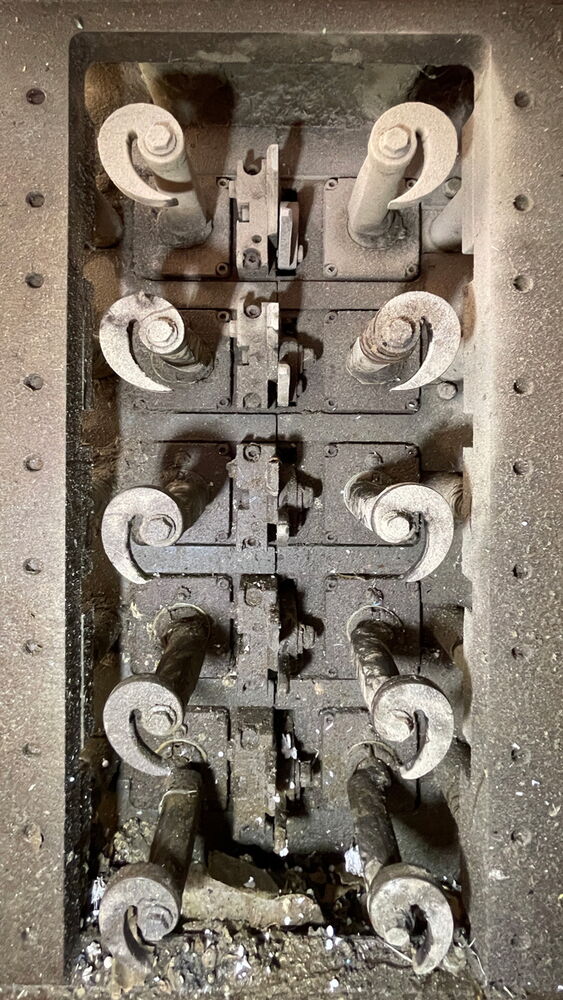

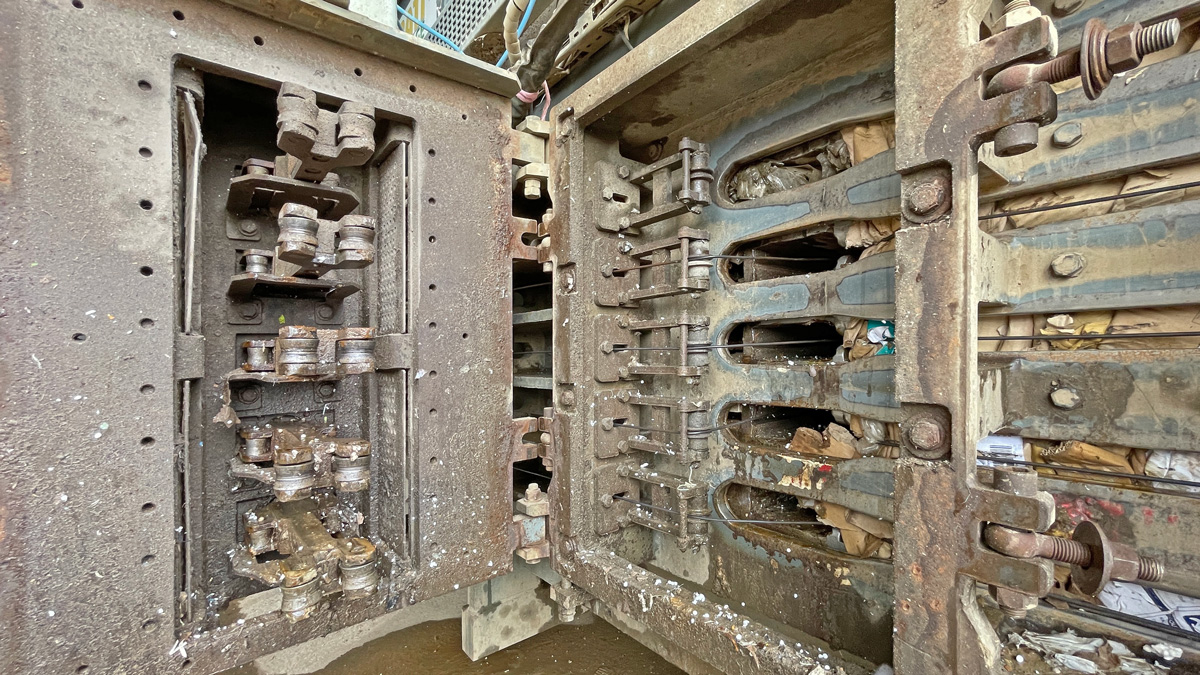

5-fold horizontal tying, fully automatic |
|
Throughput rates with a |
|
bulk density of 20 kg/cbm 12.86 t/hour |
|
Bulk weight of 50 kg/cbm 32.15 t/hour |
|
Bale weights with a bale length of approx. 1.2 m 650 up to 750 kg/bale, depends on materiel |
|

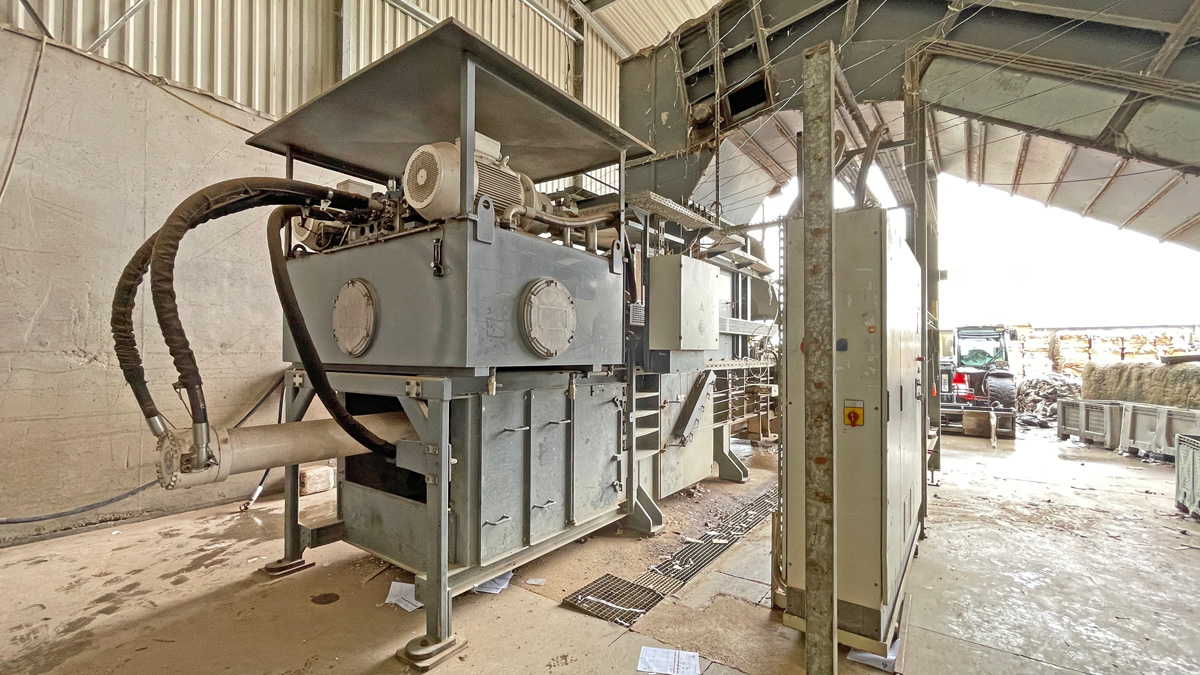

Hydraulic oil tank capacity 2000 litres |
|

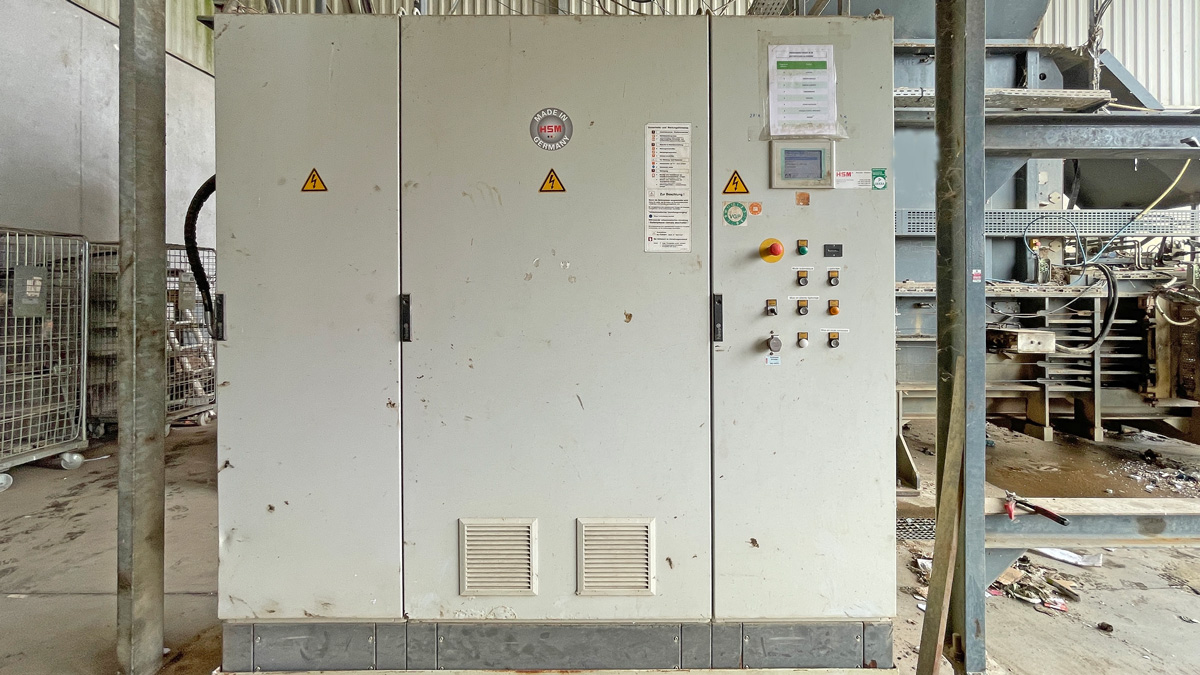

PLC control Siemens S7-300 |
|
Siemens TP 700 control panel |
|
Press dimensions assembled 18,000 x 4,300 x 3.270 mm (l x w x h) |
|
Press dimensions with conveyor system 18,000 x 22,000 x 5,765 mm (l x w x h) |
|
Transport weight baler approx 30 t (Main press approx. 20 t, press channel with bale clamp approx. 10 t) |
|
|
|
Special machine equipment: |
|
Access locking by means of key transfer system |
|
Electro-hydraulic locking of the press carriage during the tying process so that the press plunger does not change position with highly expansive materials |
|
|
|
Additional optional equipment ordered: |
|
Frequency-controlled main drive, 2 x 45 kW, with up to 40 % energy savings compared to the standard motorisation 2 x 45 kW, with the same power output |
|
Manual switch-off or switch-on of the number of strapping wires to save on strapping wire for non-expansive material |
|

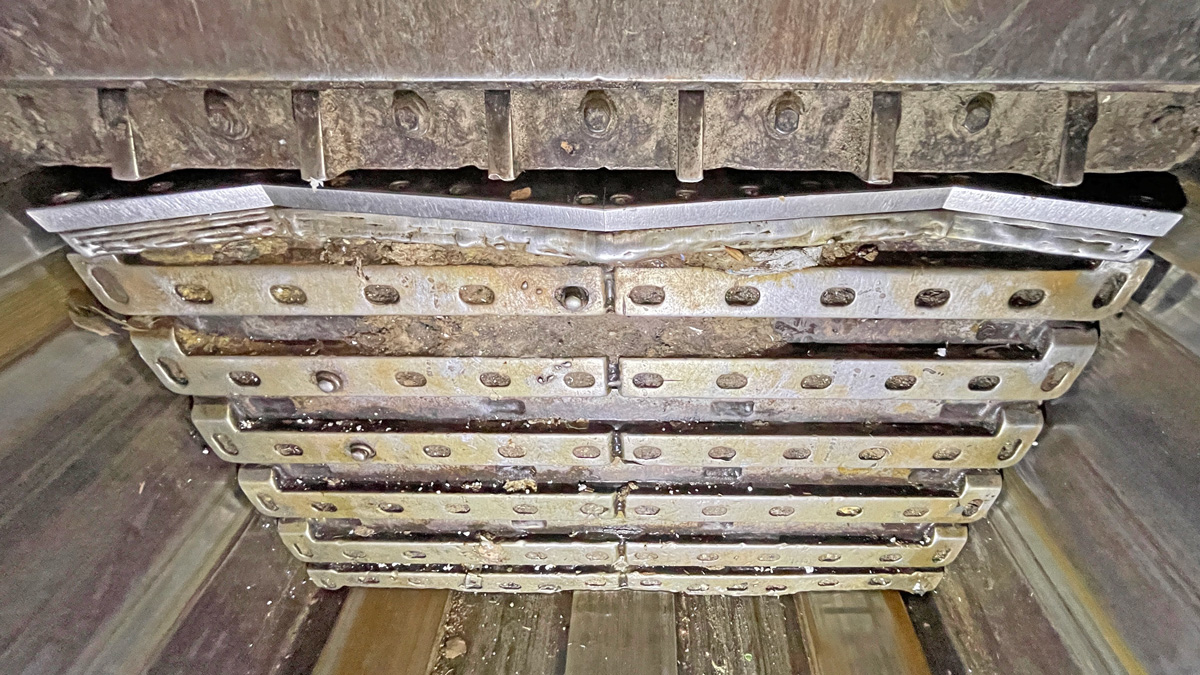

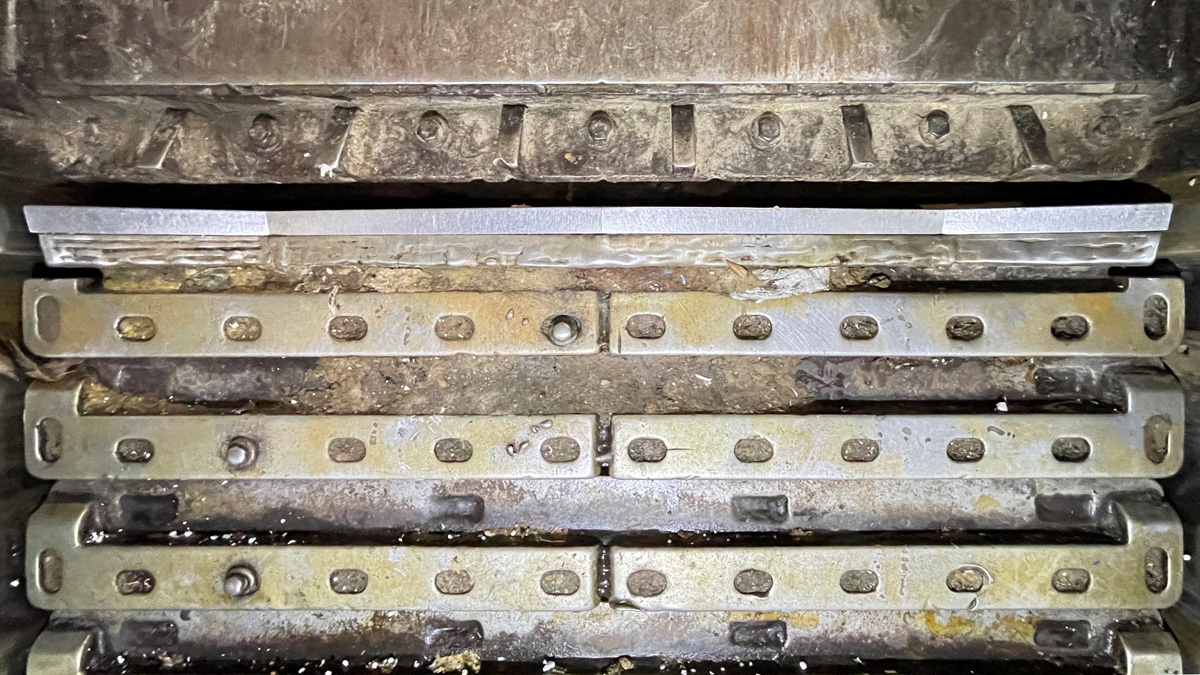

Cutting-edge frei rammer with 121 kN pressing force |
|
Sensory wire monitoring, with press switch-off in the event of wire breakage or wire end |
|
Bale chute |
|
Visual warning signal, mounted on the control cabinet |
|
|
|
Condition of the baler: |
|

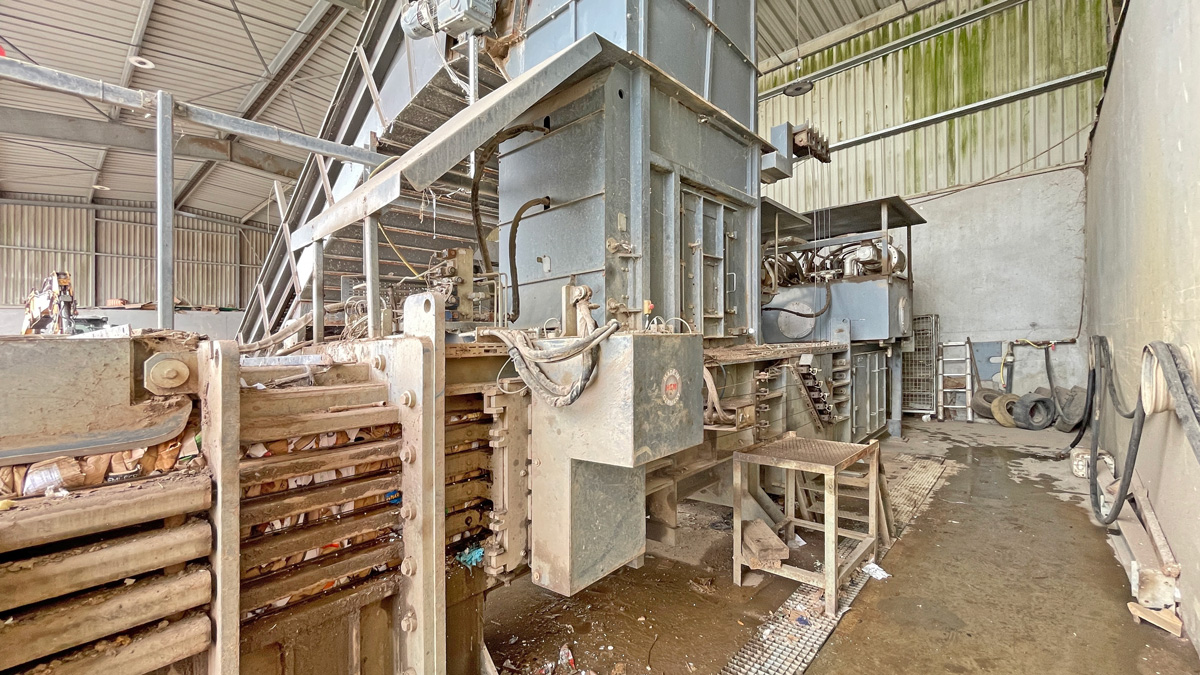

The entire baling system (baler and conveyor belt) is in good, operational condition. |
|
|
|

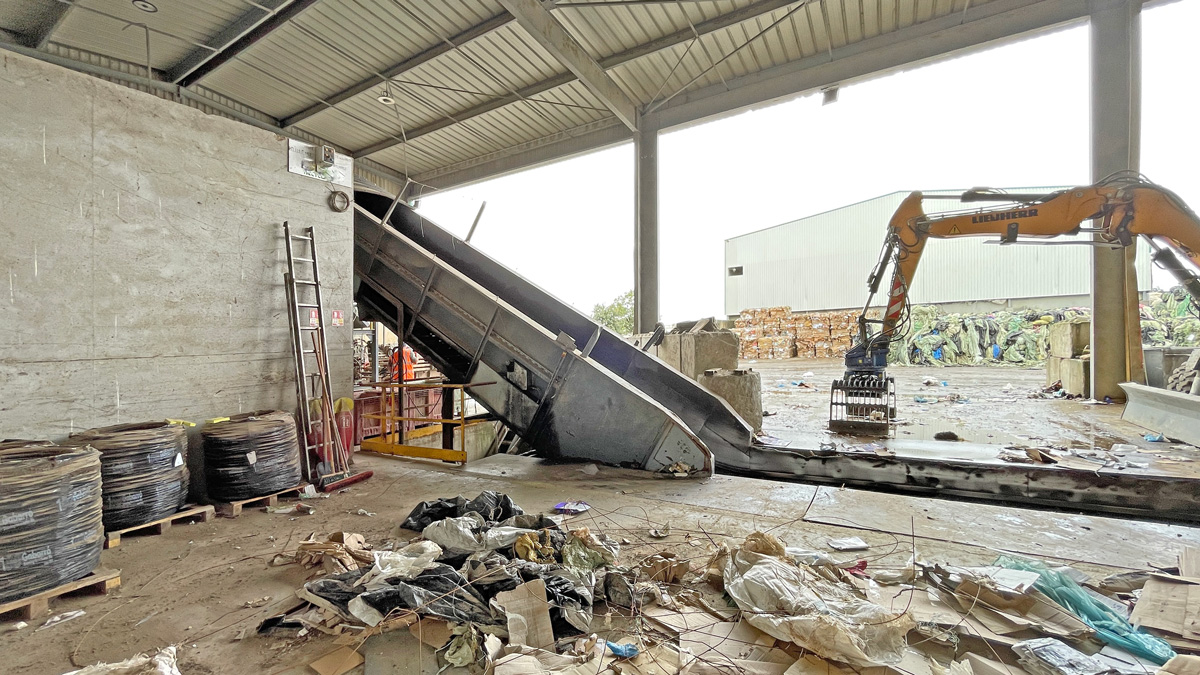

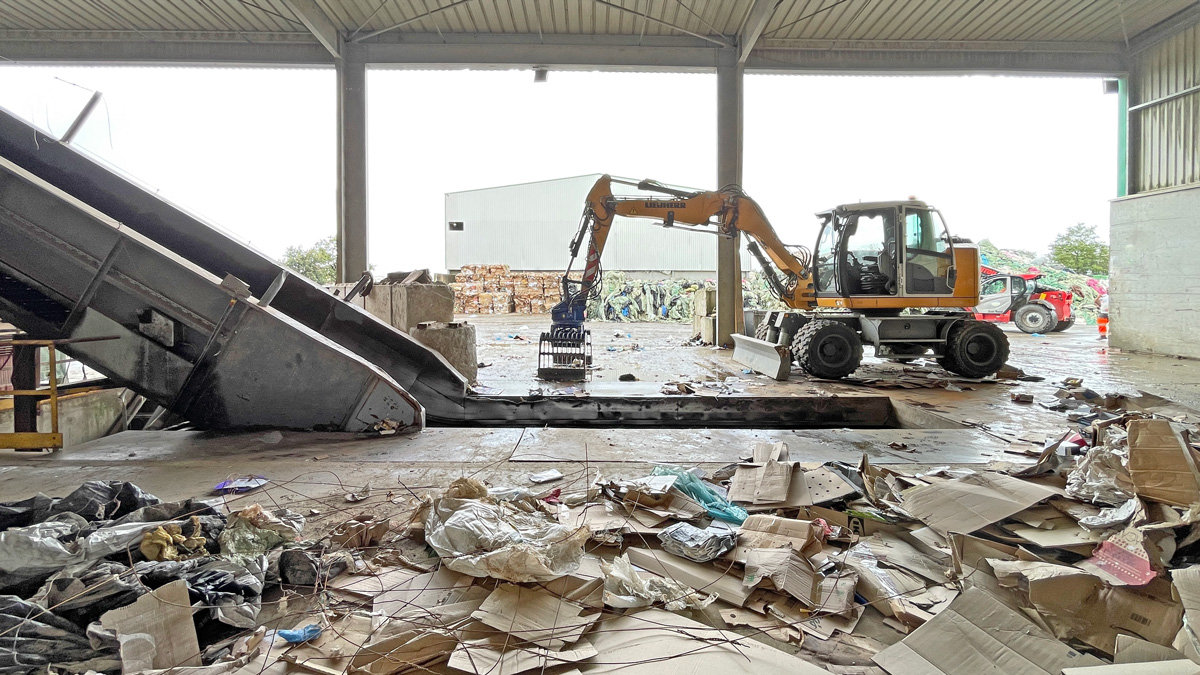

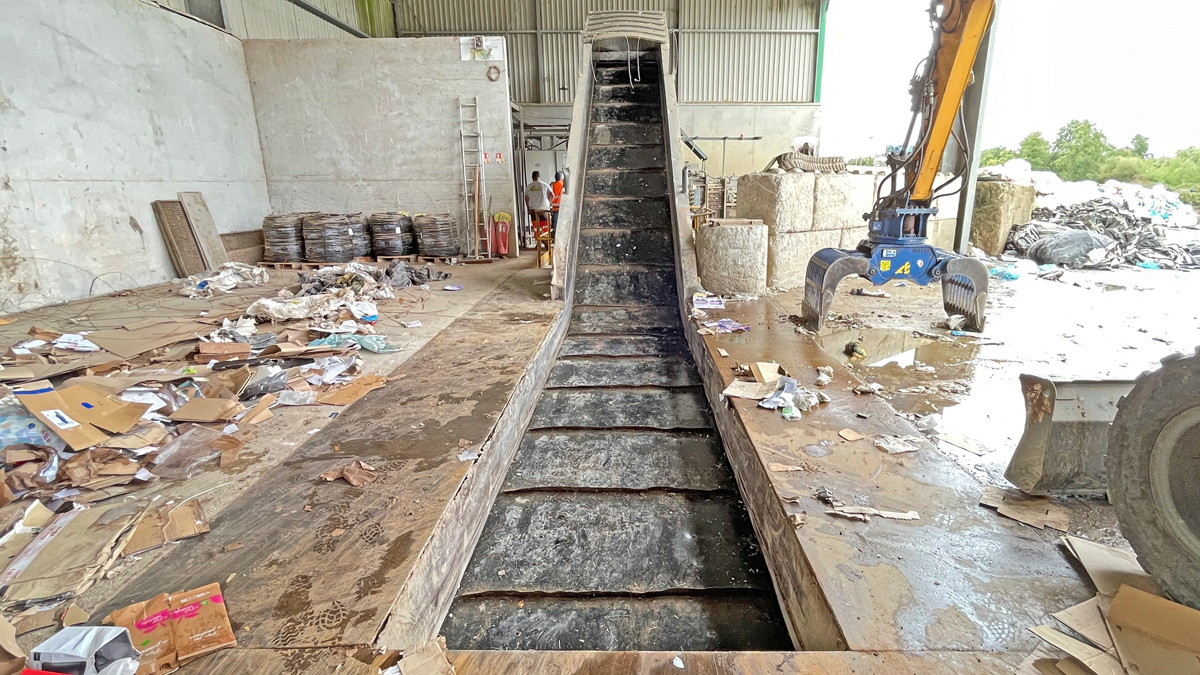

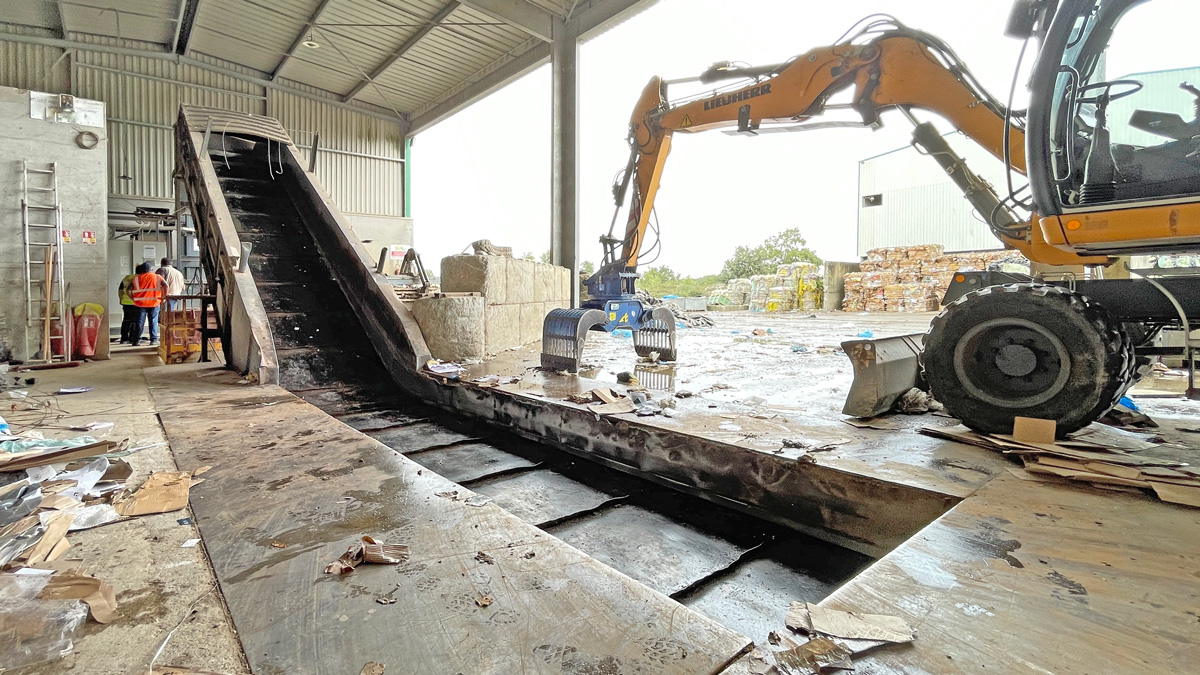

Technical data for the chain belt conveyor: |
|
Manufacturer Stadler Anlagenbau GmbH |
|
Typ chain belt conveyor KF 1800 |
|
Year of construction 2012 |
|
Drive power 7.5 kW |
|
Belt speed 0.05 – 0.4 m/second |
|
Length of feeding conveyor 6,000 mm |
|
Height of side wall from feeding conveyor 400 mm |
|
Length of incline conveyor 9,000 mm |
|
Height of side wall from incline conveyor 800 mm |
|
Length of gooseneck 1,500 mm |
|
Incline 30° |
|
Nominal width 1,800 mm |
|
Useful width 1,700 mm |
|
Belt quality EP-500/4 |
|
Steel cleats on the rubber belt 50 x 50 mm |
|

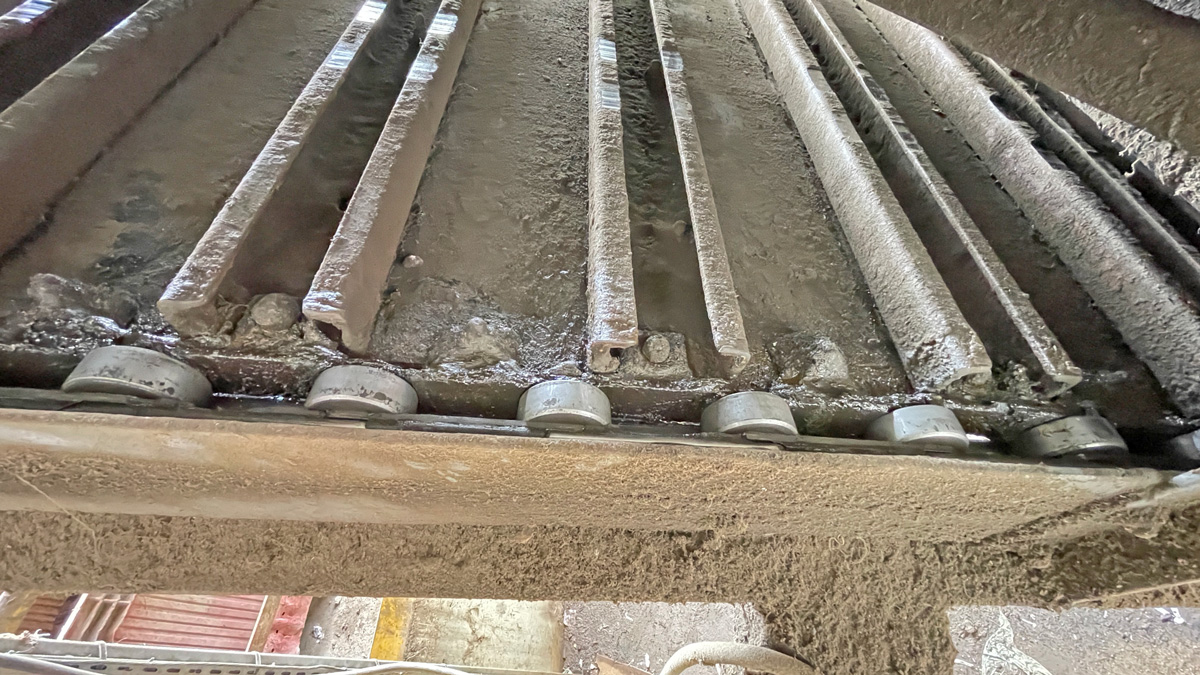

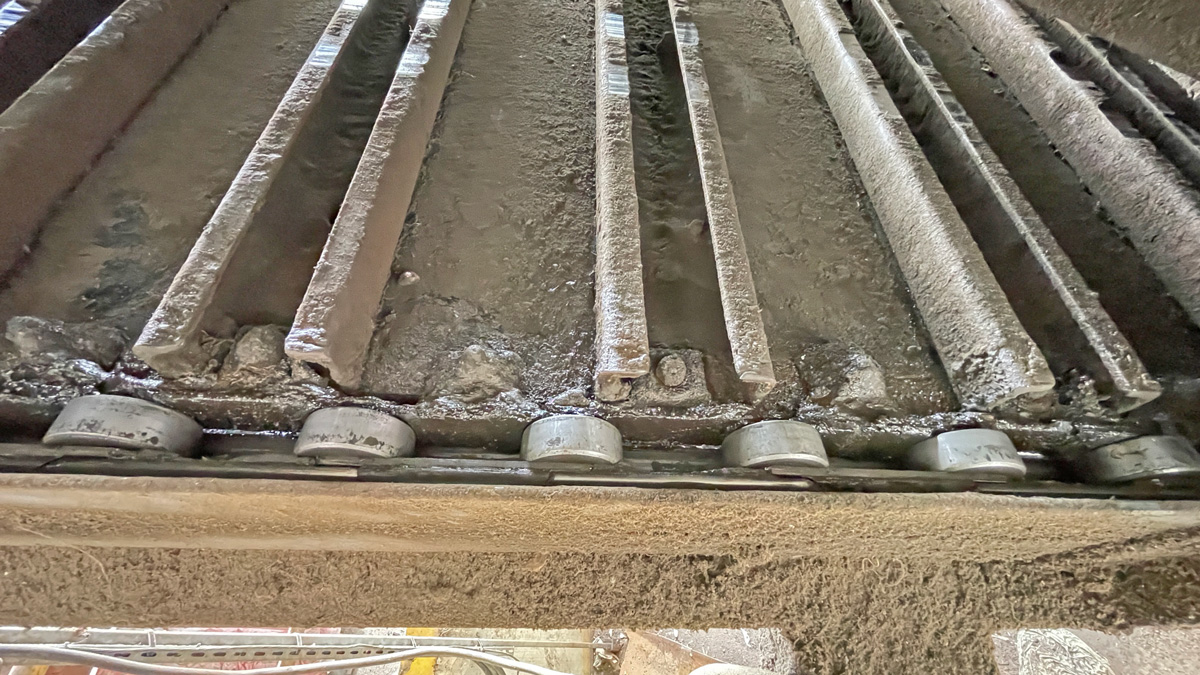

Hollow pin chain, pitch 125 mm, rollers 36 mm |
|
Height of drive axle above ground 4,284 mm |
|
Overall height of conveyor belt 5,765 mm |
|
Transport dimensions of feeding conveyor approx. 7,000 x 2,200 x 1,250 mm (l x w x h) |
|
Transport dimensions of the incline conveyor 13,000 x 2,500 x 2,900 mm (l x w x h) |
|
Pit dimensions for the conveyor belt 14,765 x 3,260 x 1,250 (l x w x h) |
|
|
|
Scope of delivery: |
|
The conveyor belt, baling press with bale chute, and wire drawing stations are available for sale, but without the wire. |
|
|
|
Comments: |
|
The documentation (Manual, CE-declaration, electr./hydr.-drawings), are completely available. Inspections are possible after agreement. We will not assume liability for the given technical data and possible errors. |
