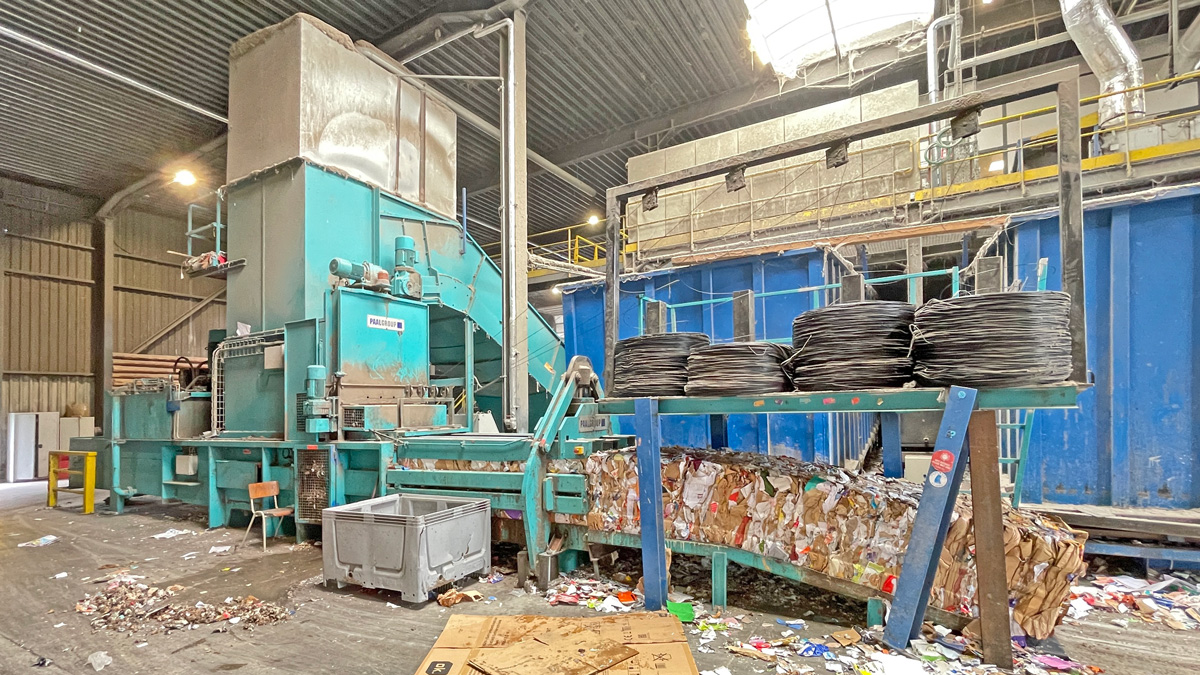

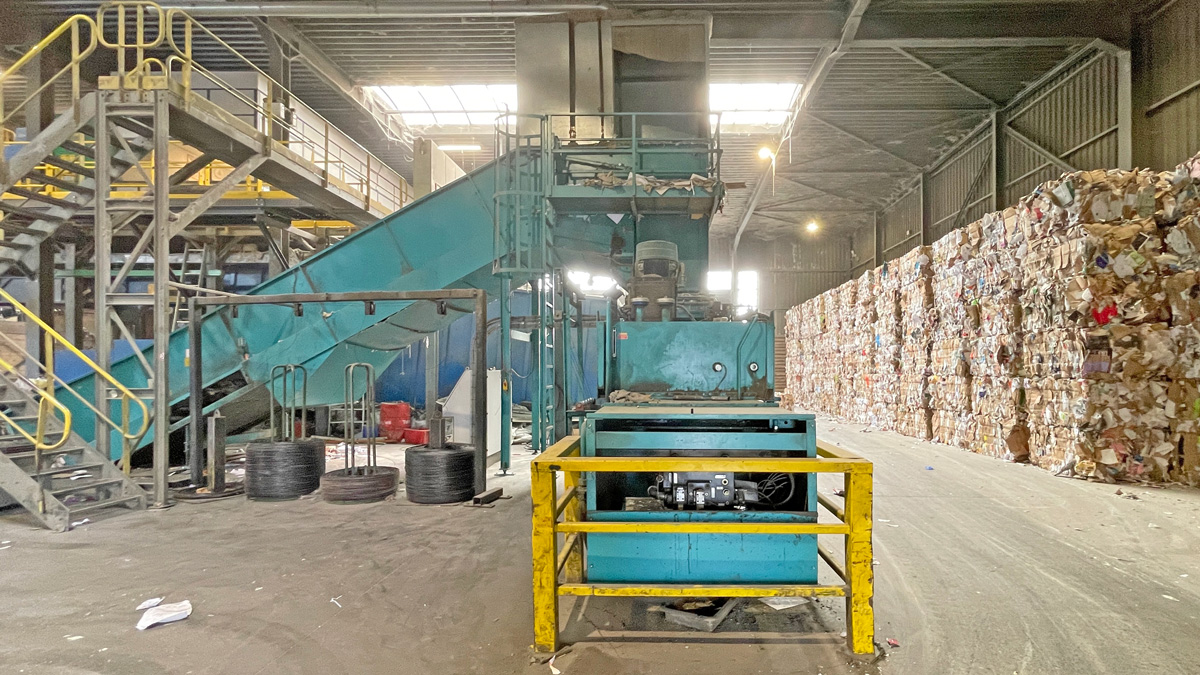

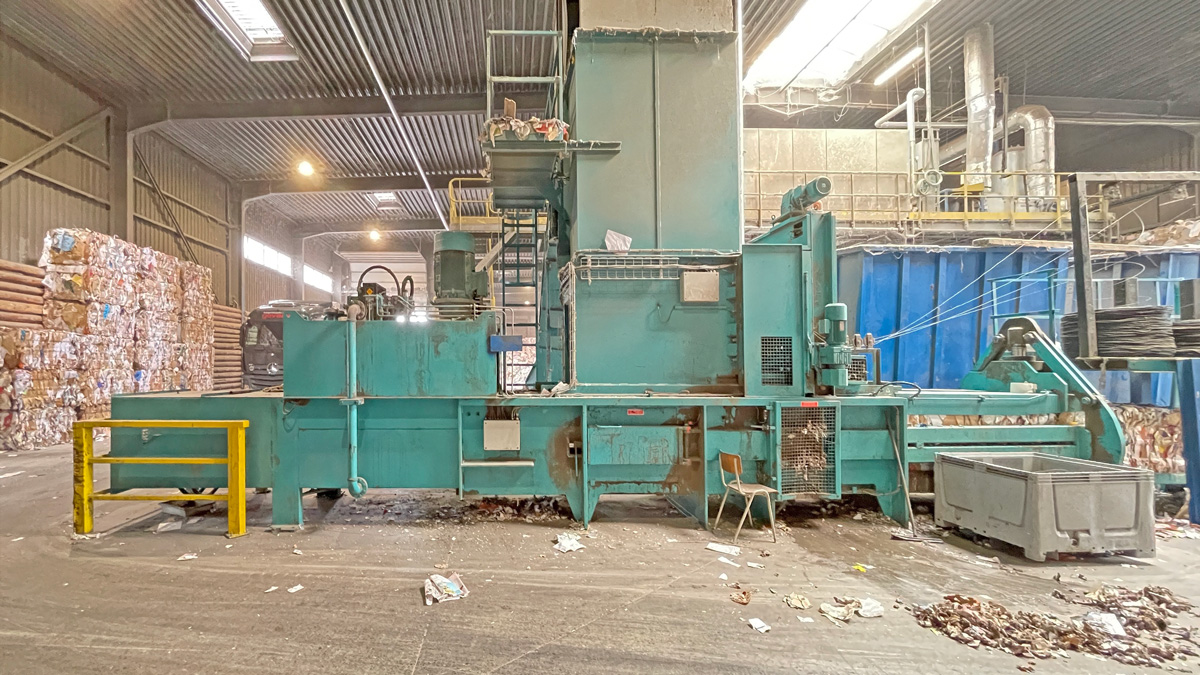

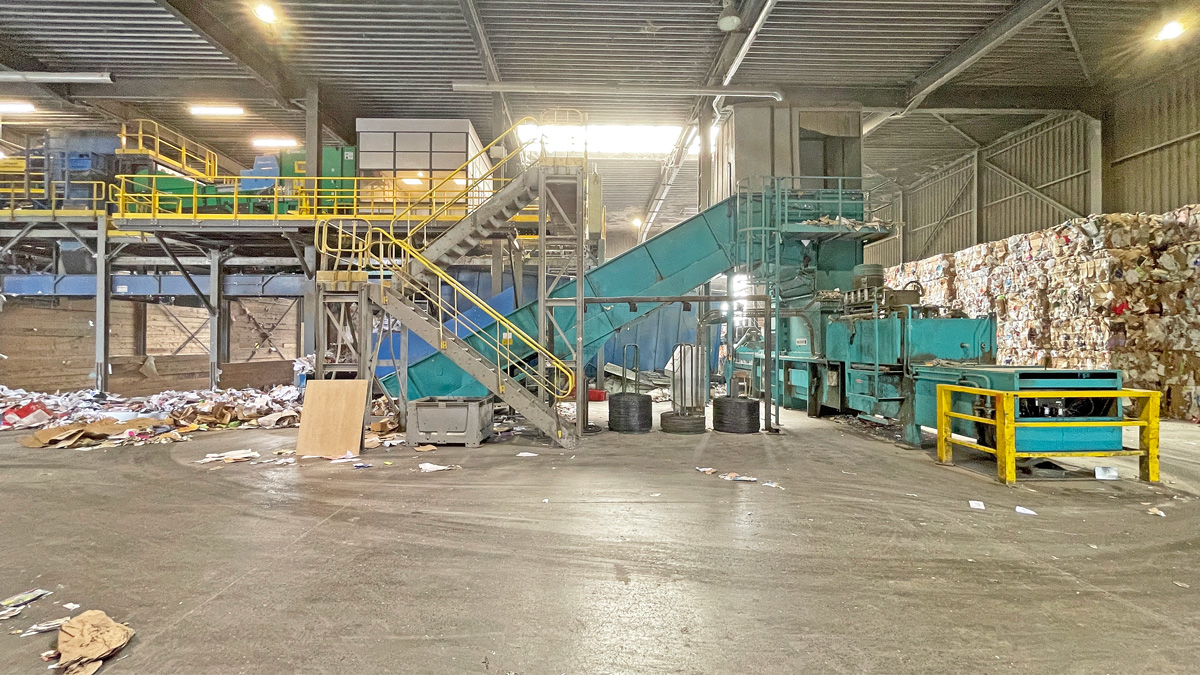

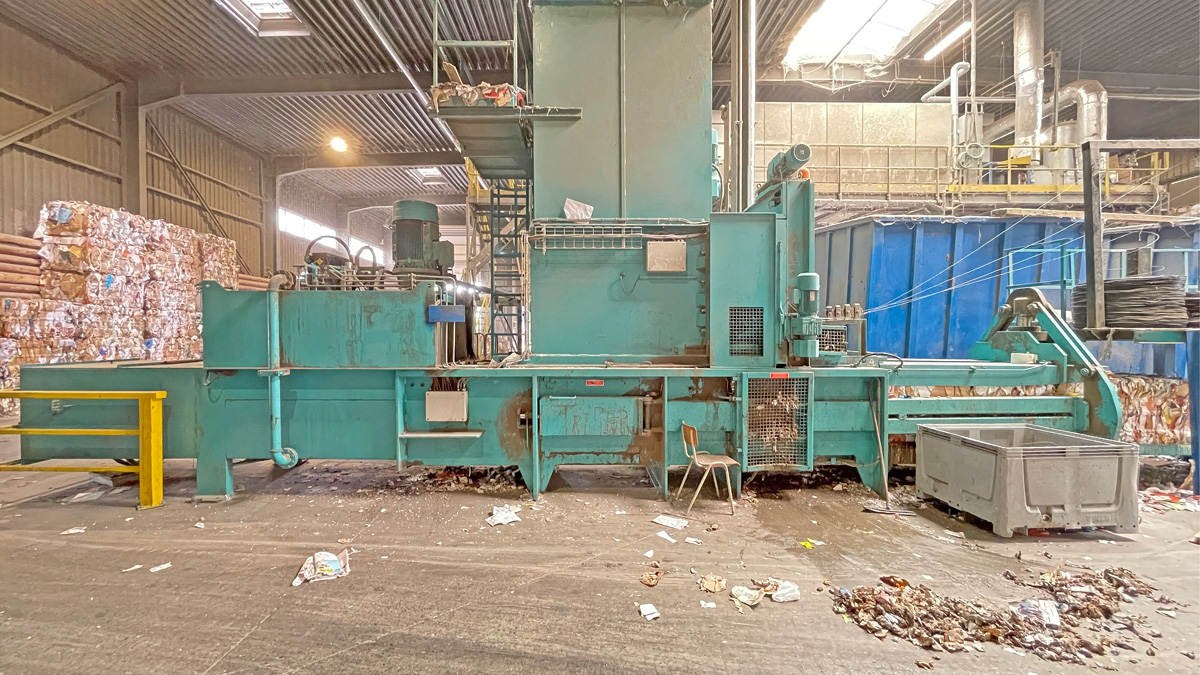

Baler Paal, type Konti 275 E, 80 t pressing force, yoc 2006, 54,050 operating hours, drive power 45 kW, incl. chain belt conveyor

Technical data baler:

Manufacturer Paal

Typ Konti 275 E

Year of construction 2006

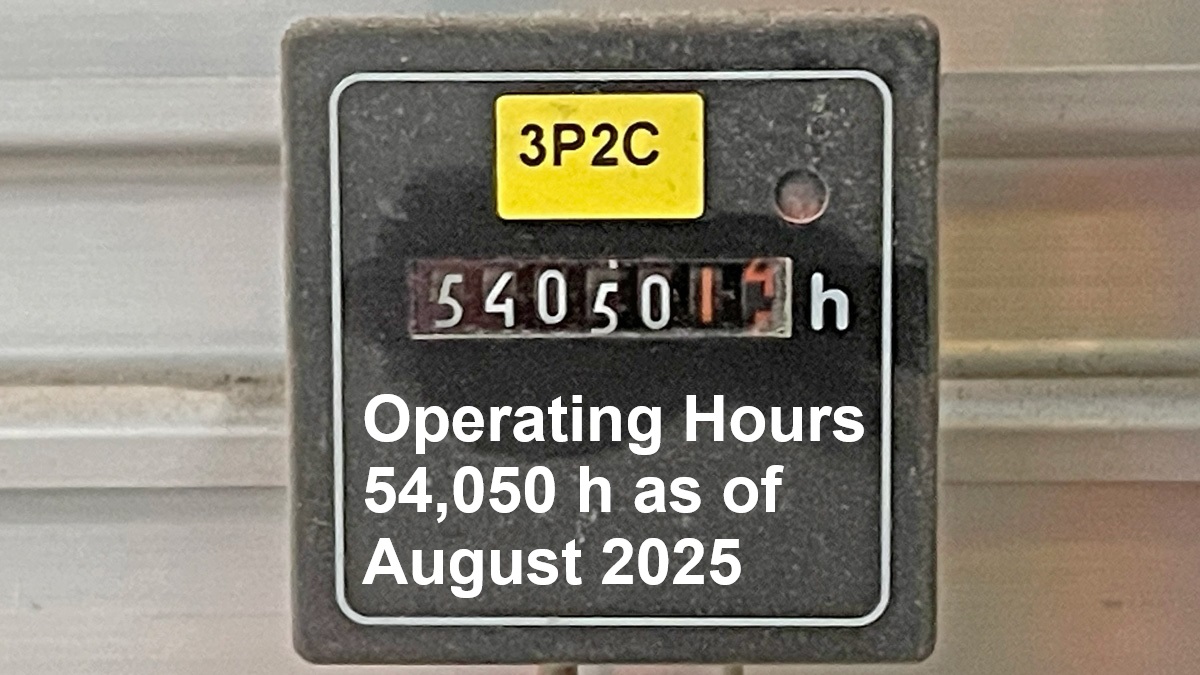

Hours of operation in total 54,050 hours

Press power main press 80 tons at 300 bar

Specific press capacity 9,7 kg/cm²

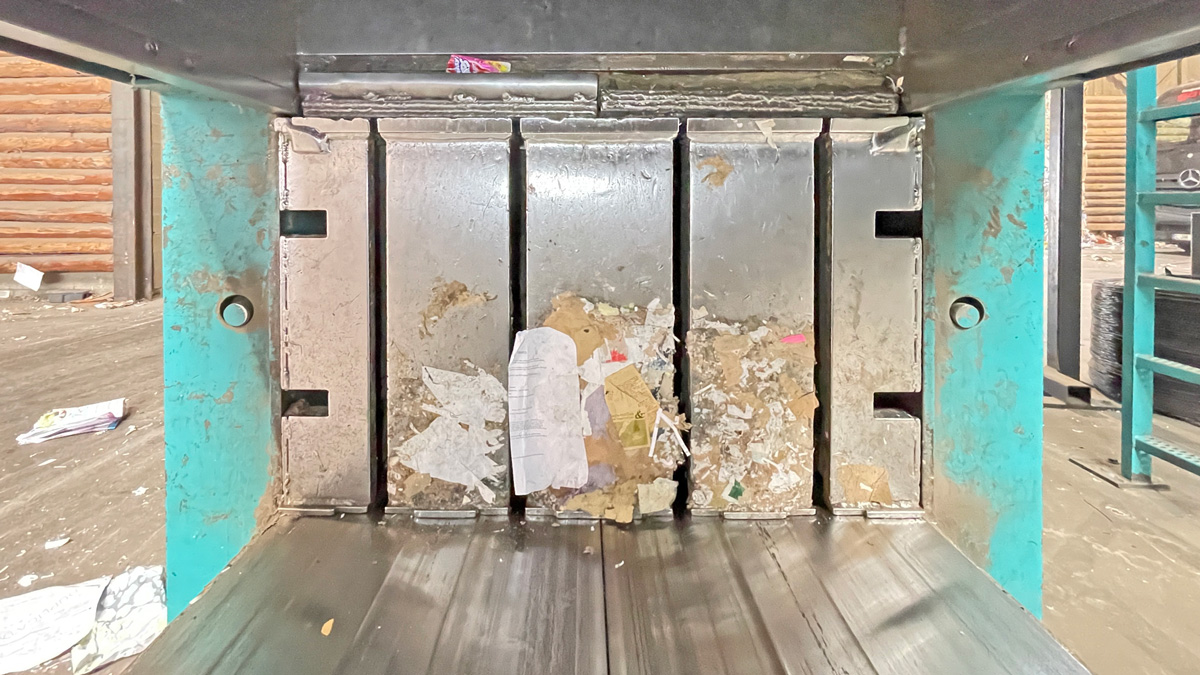

Feed channel 1,600 x 1.020 mm (l x w)

Throughput capacity under operating conditions 350 m³/hour

Bale size 750 x 1,100 mm, length variable

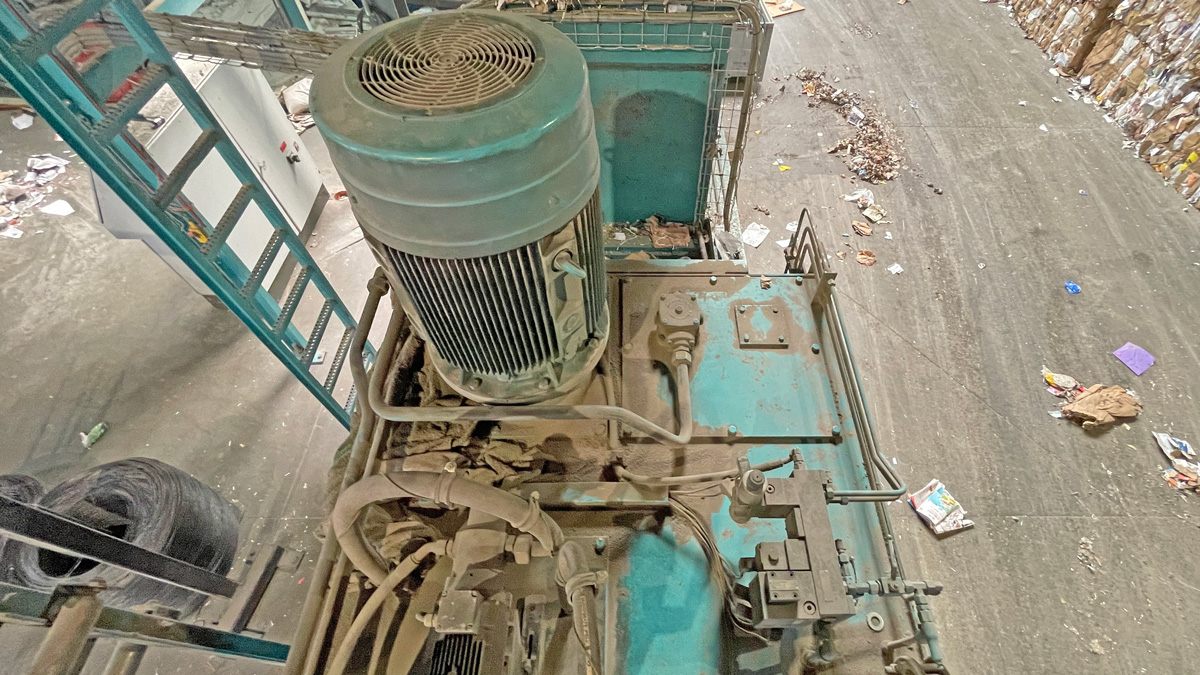

Driving motor 75 kW

Connected load 94 kW

Rated current 180 A

Tying system 4-fold vertical, fully automatic

Bale weight up to 750 kg, depends on material

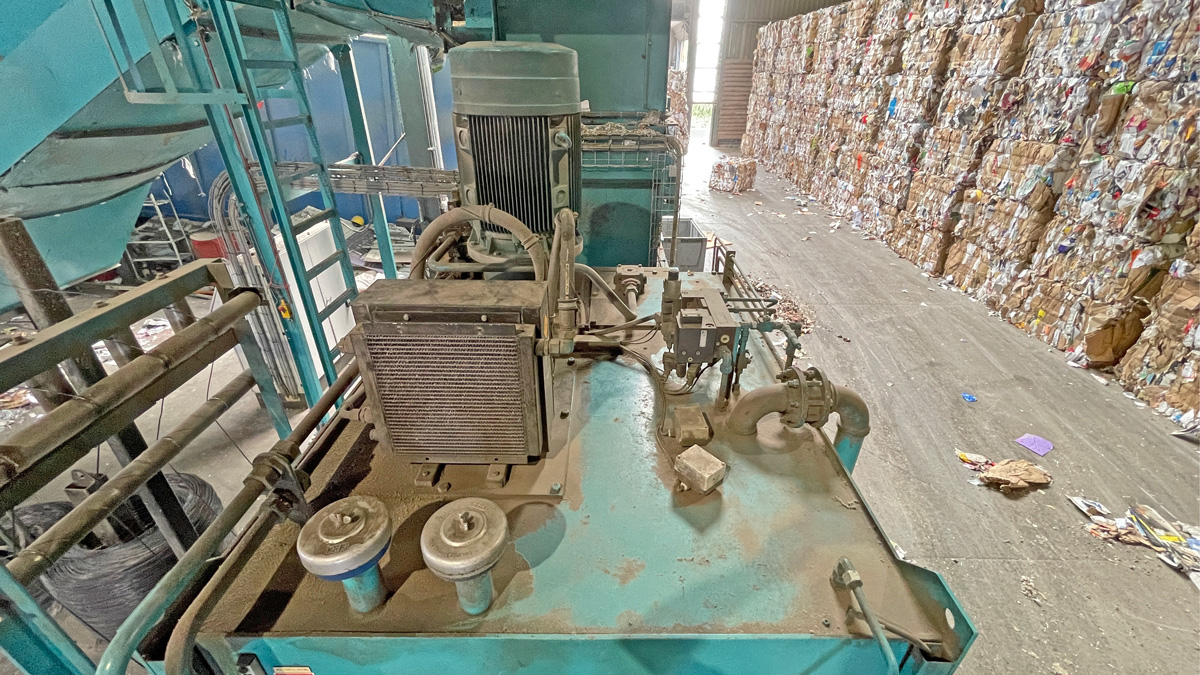

Volume hydraulic oil tank 2,100 l

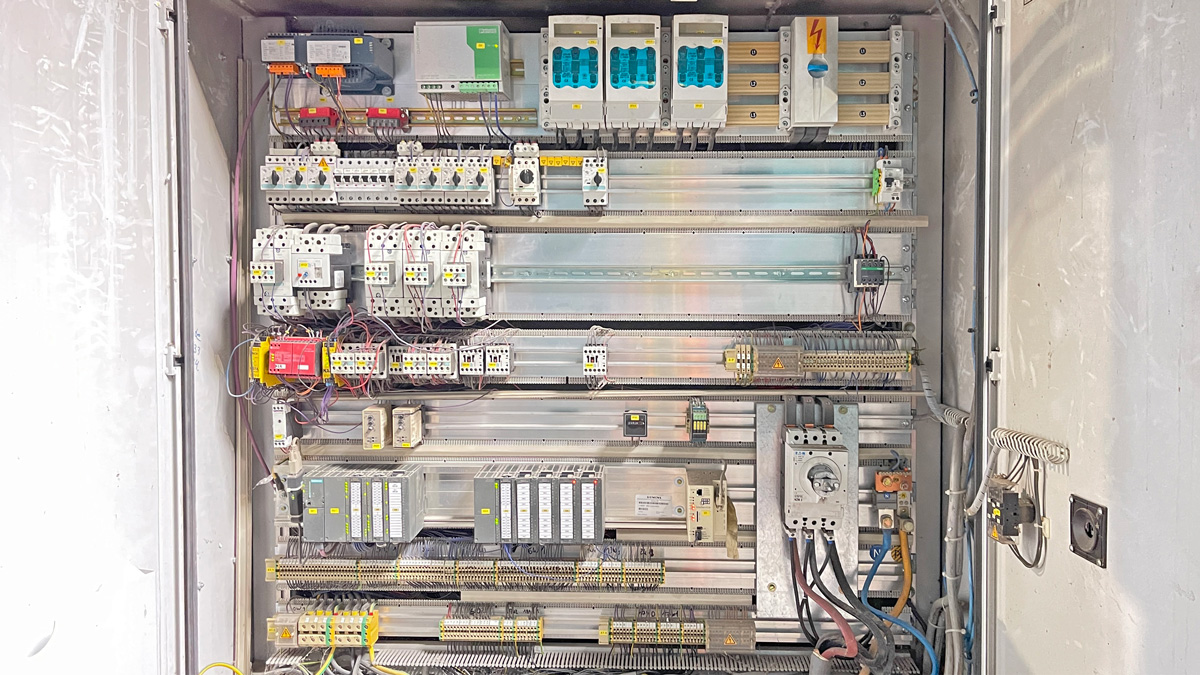

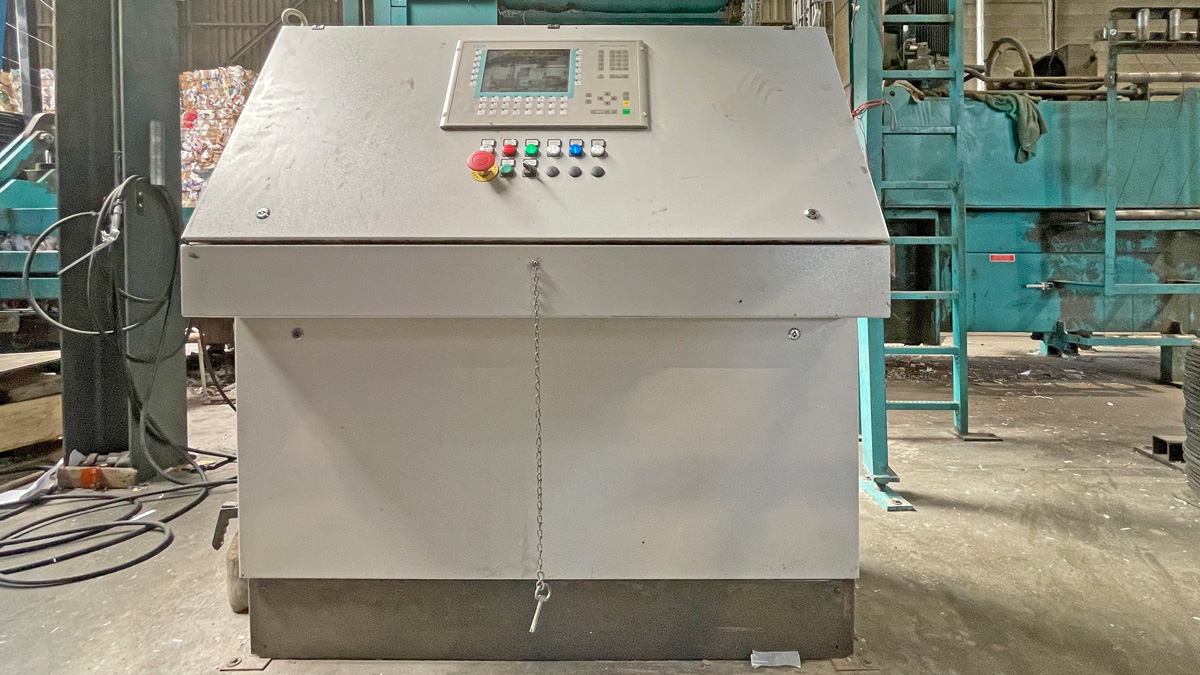

SPS controller (manuf., type) Siemens Simatic S7-300

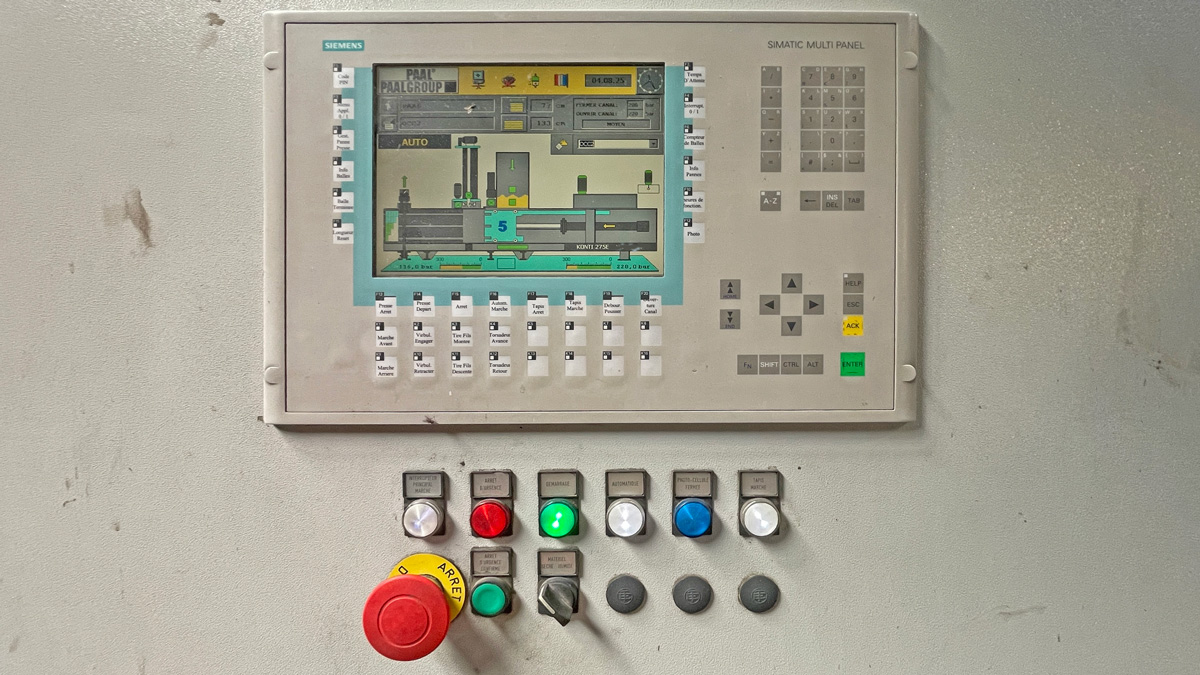

Operating panel (manuf., type) Siemens Multi Panel

Transport dimensions only baler 11,152 x 2,152 x 3,000 mm (l x w x h)

Machine weight baler approx. 21 tons

Condition of the baler:

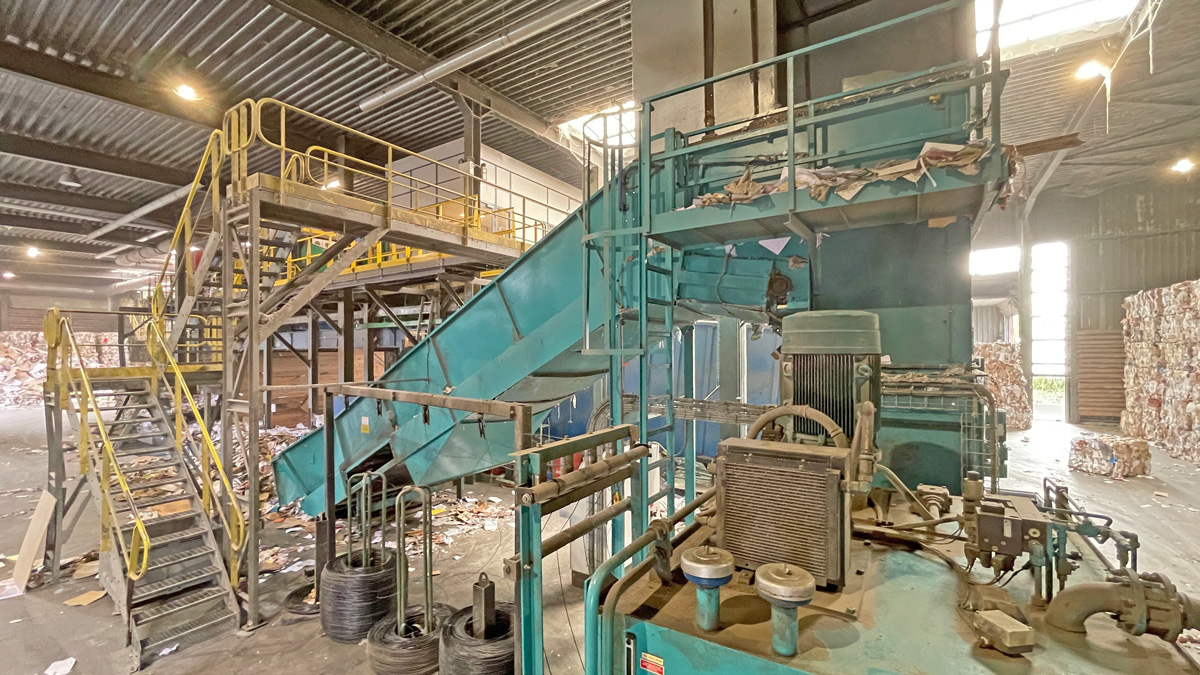

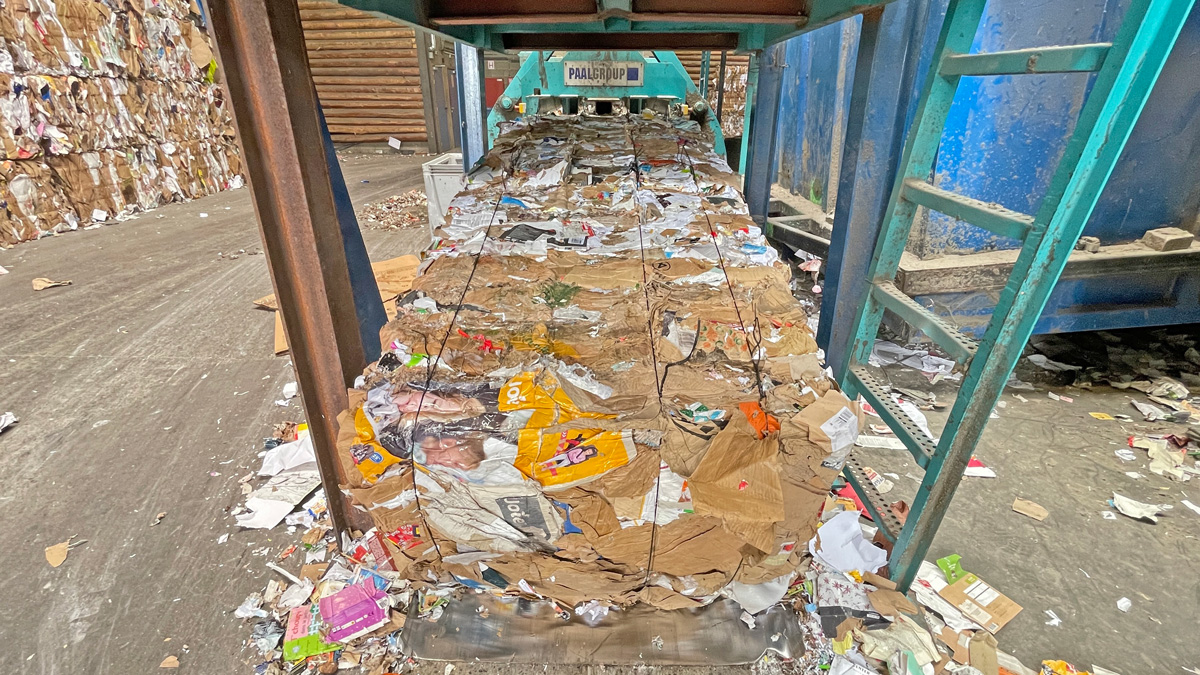

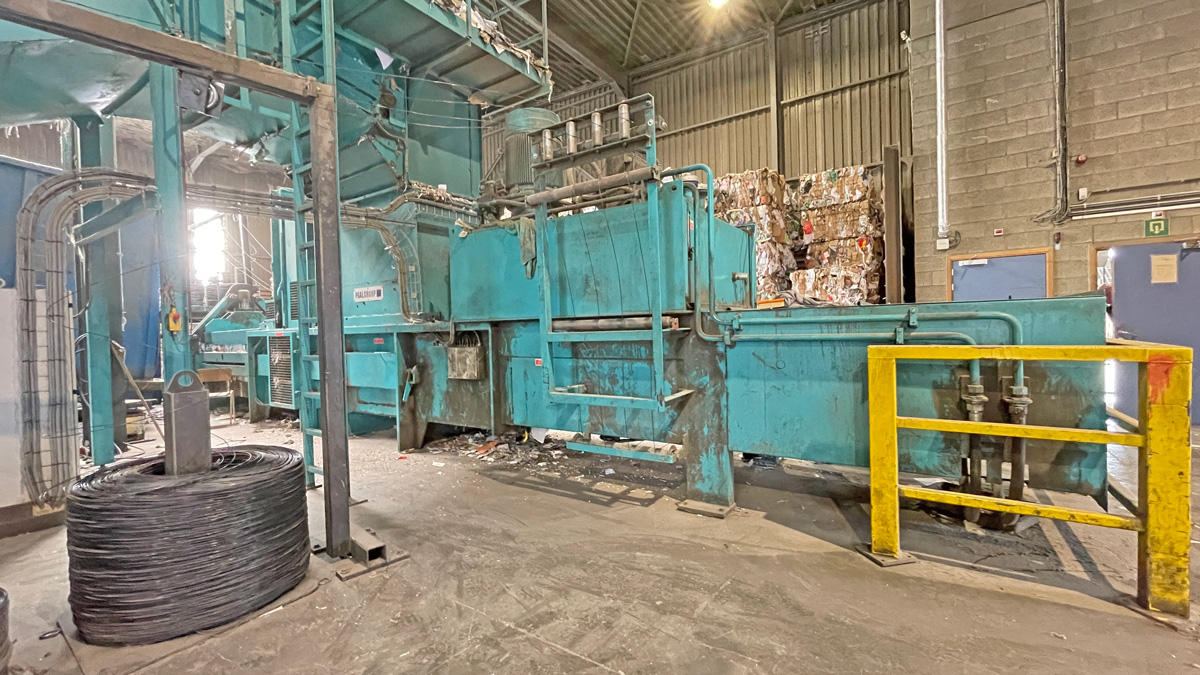

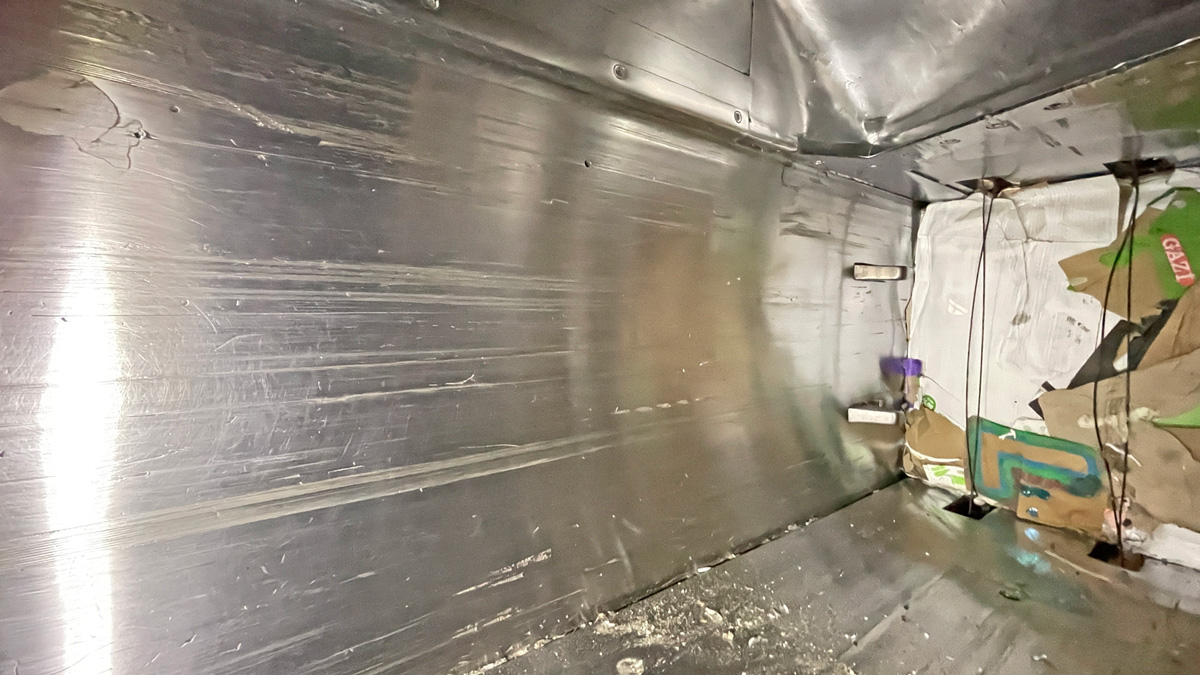

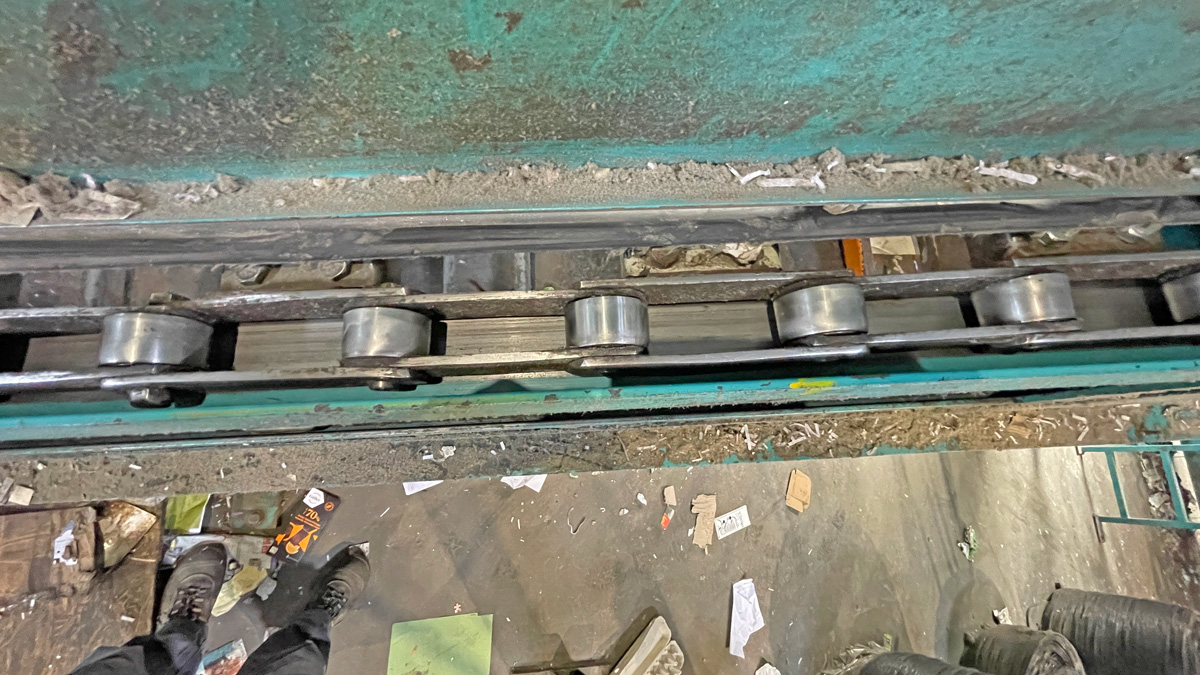

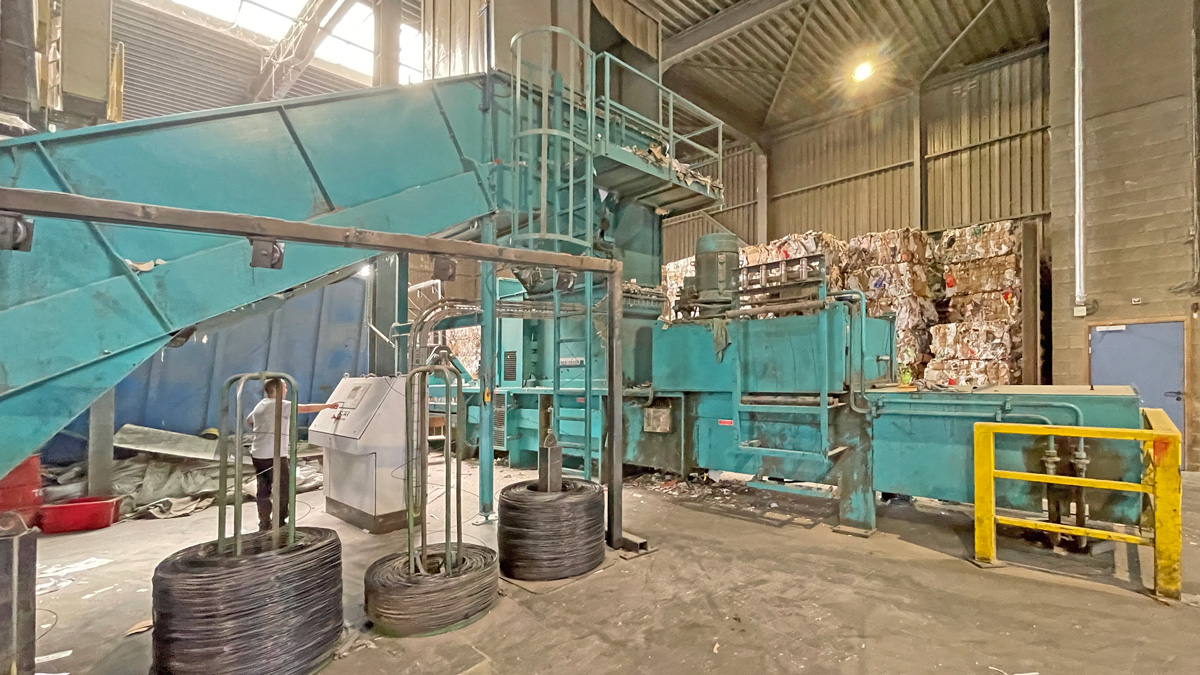

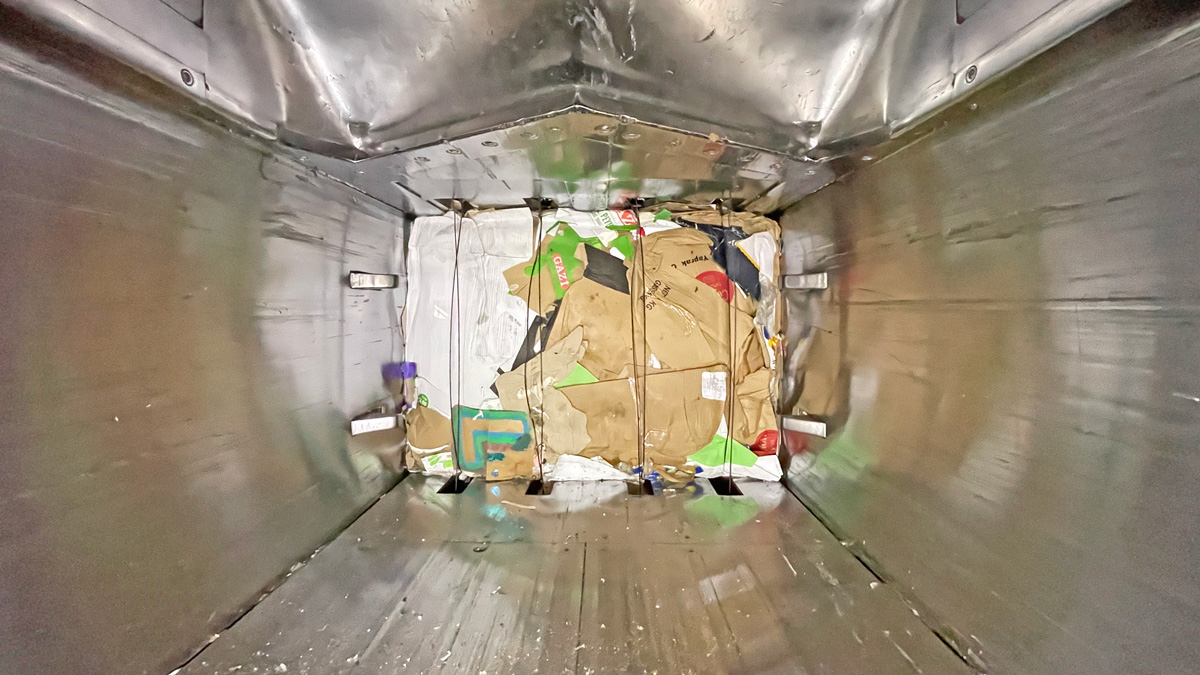

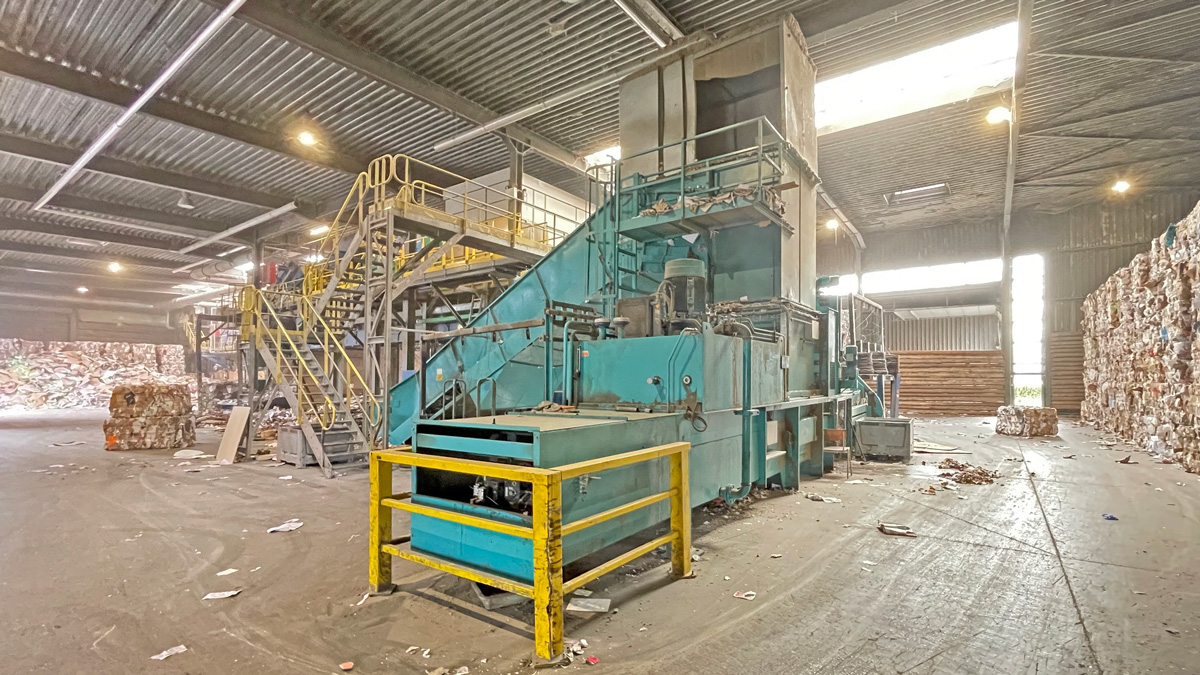

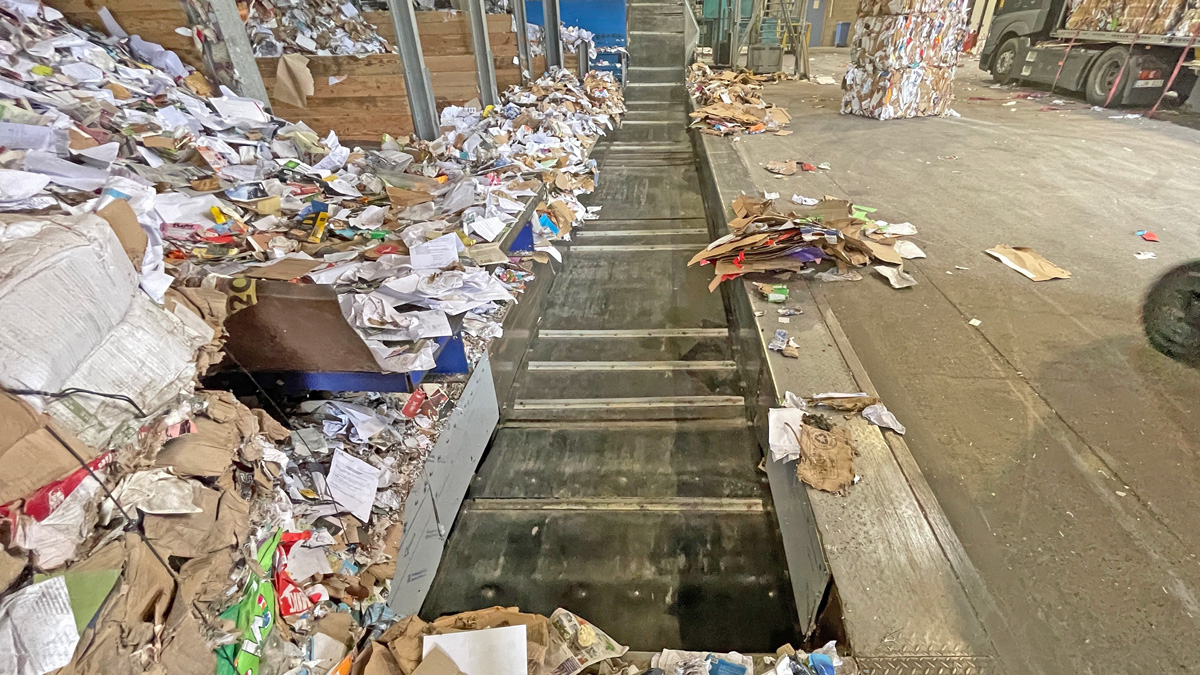

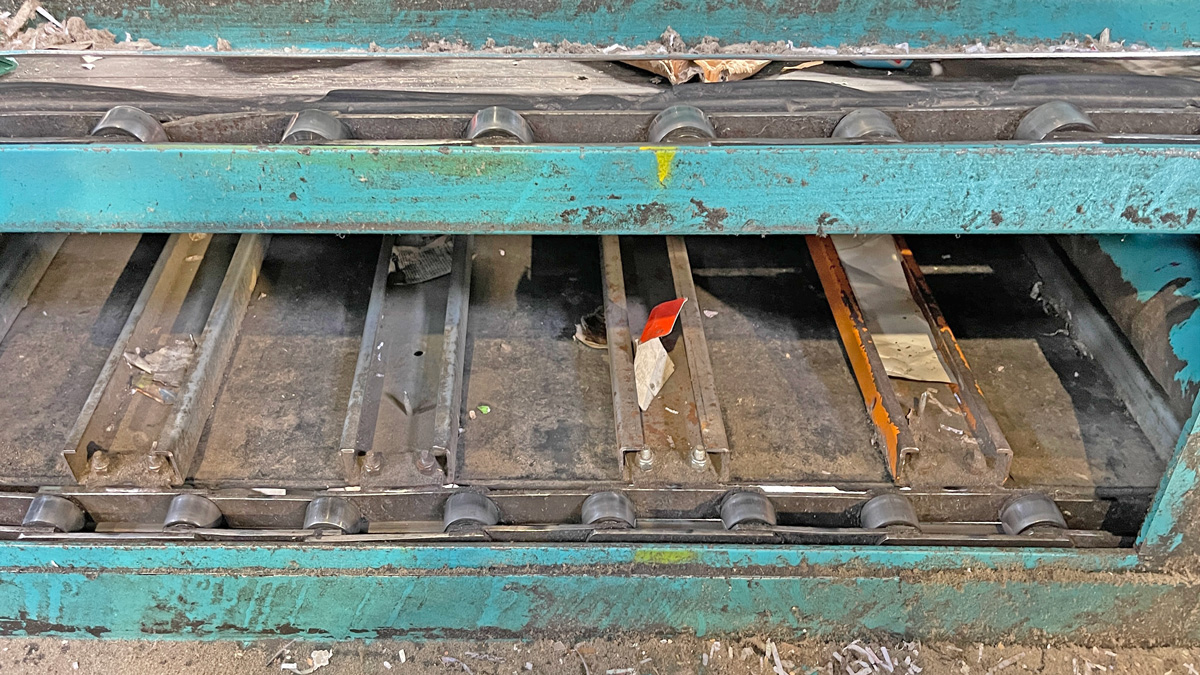

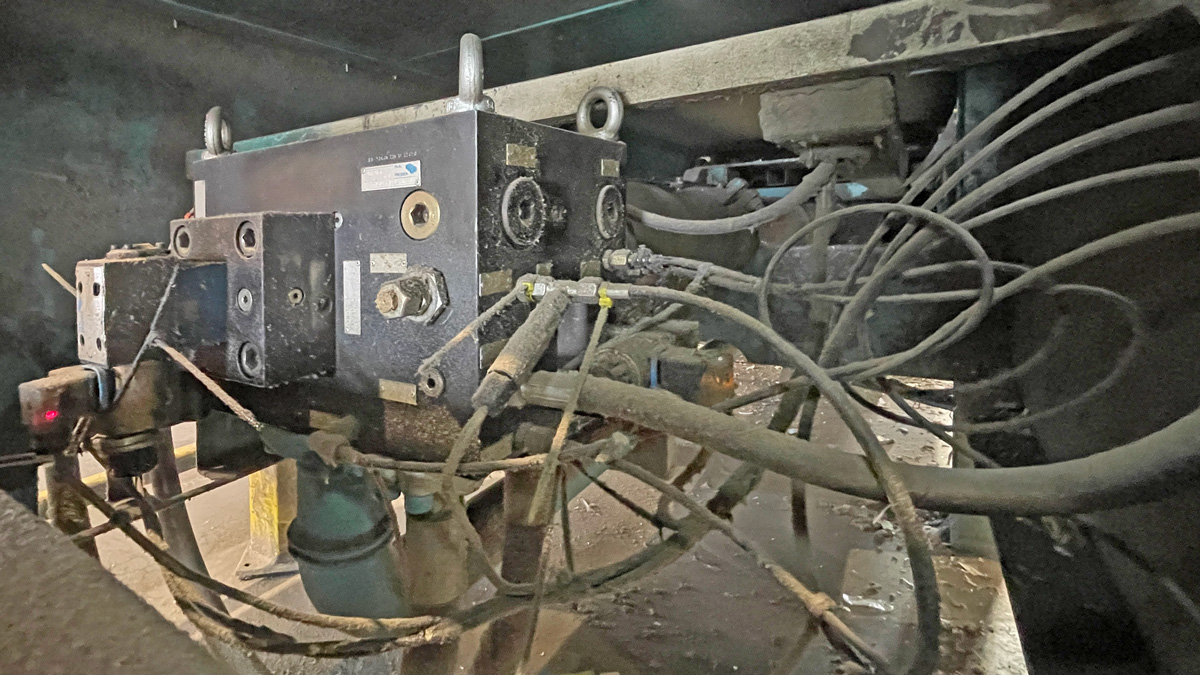

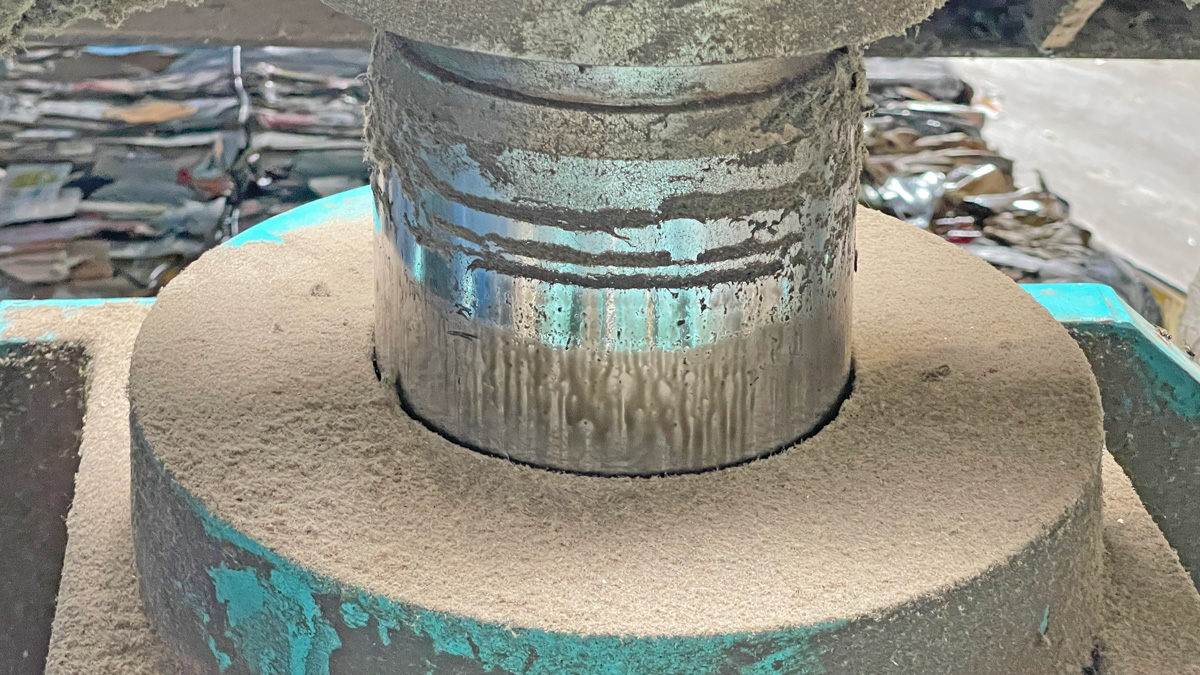

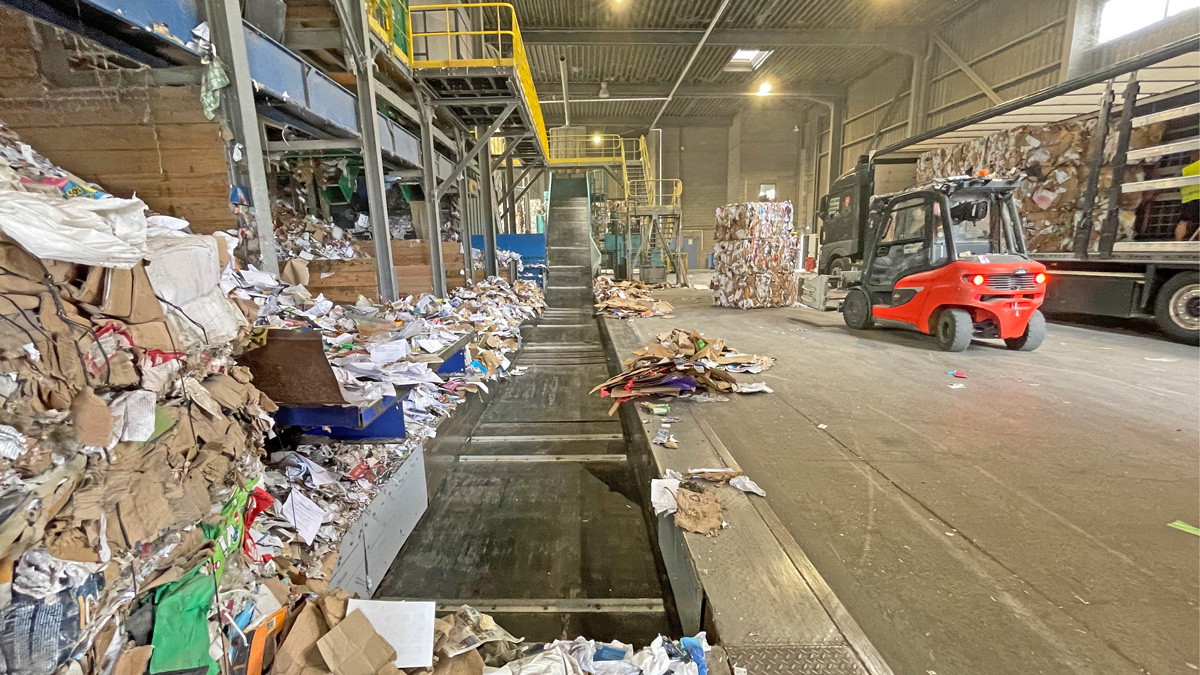

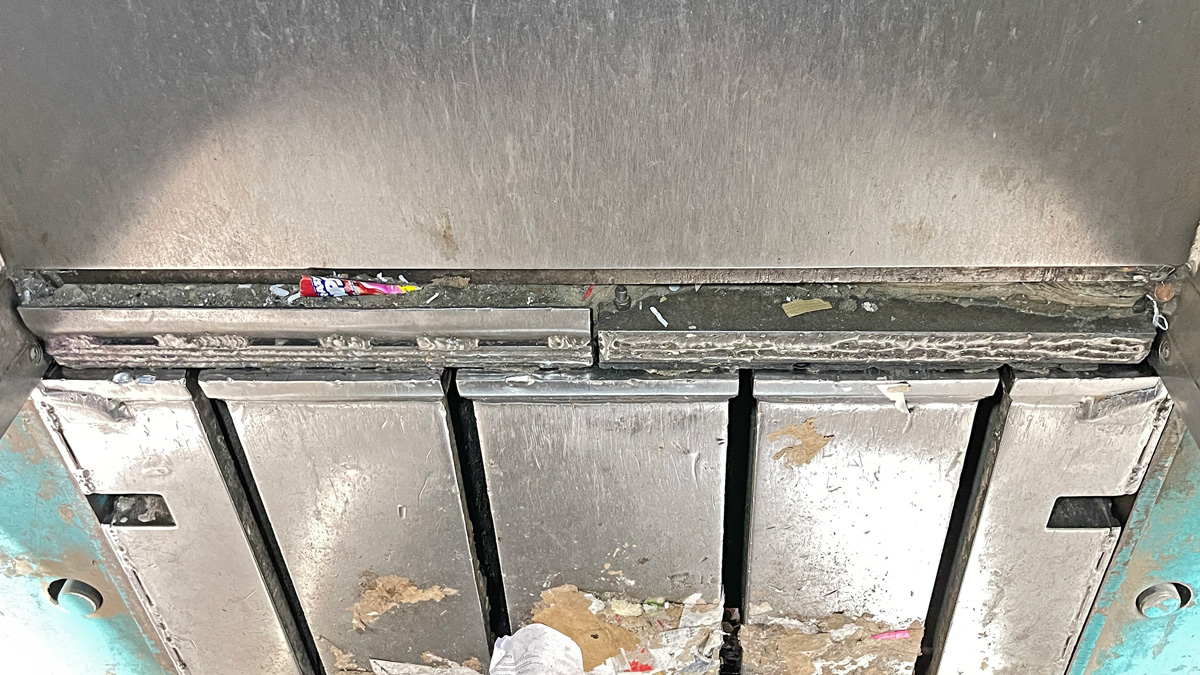

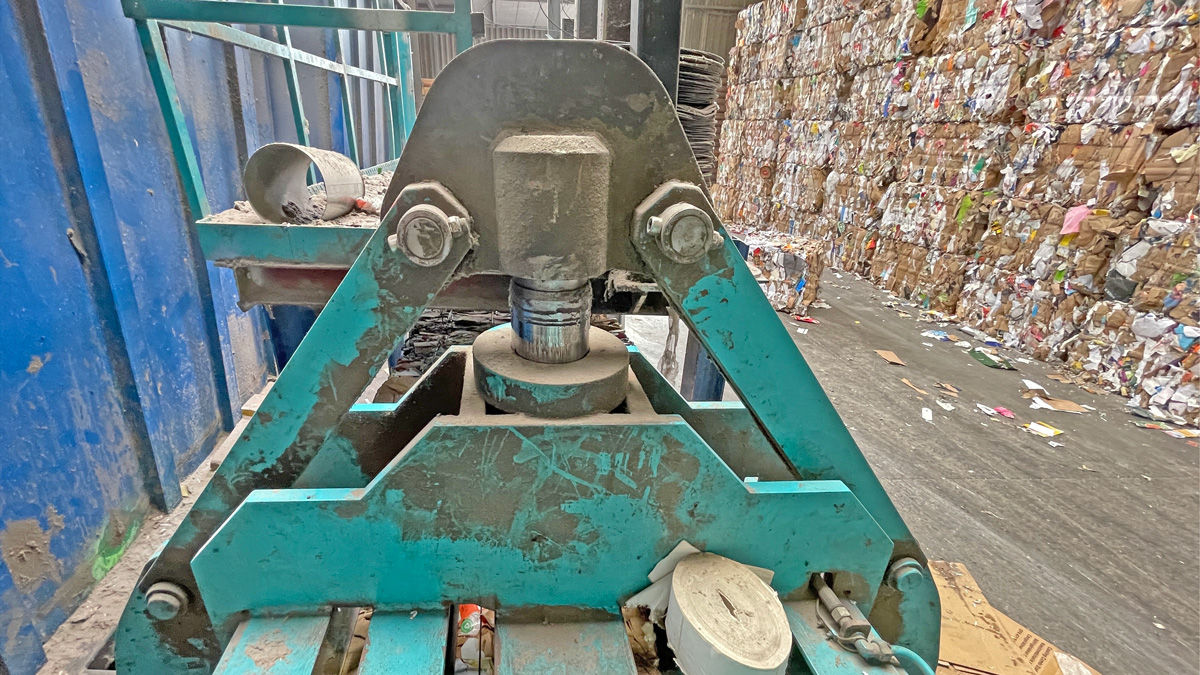

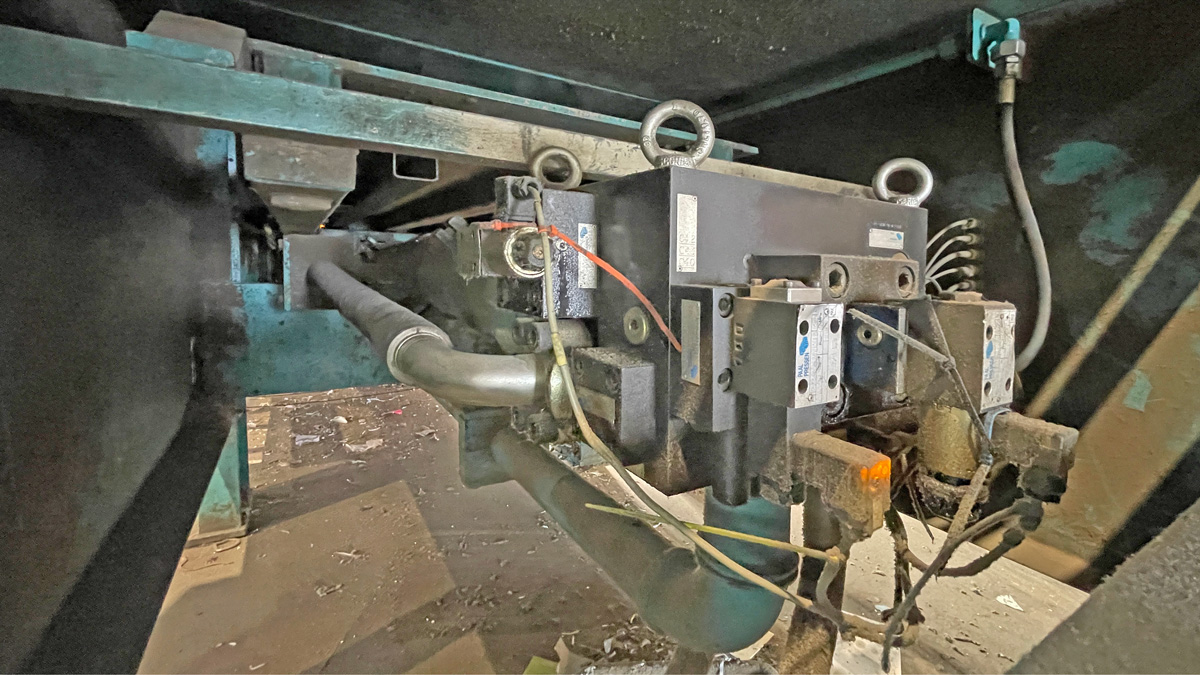

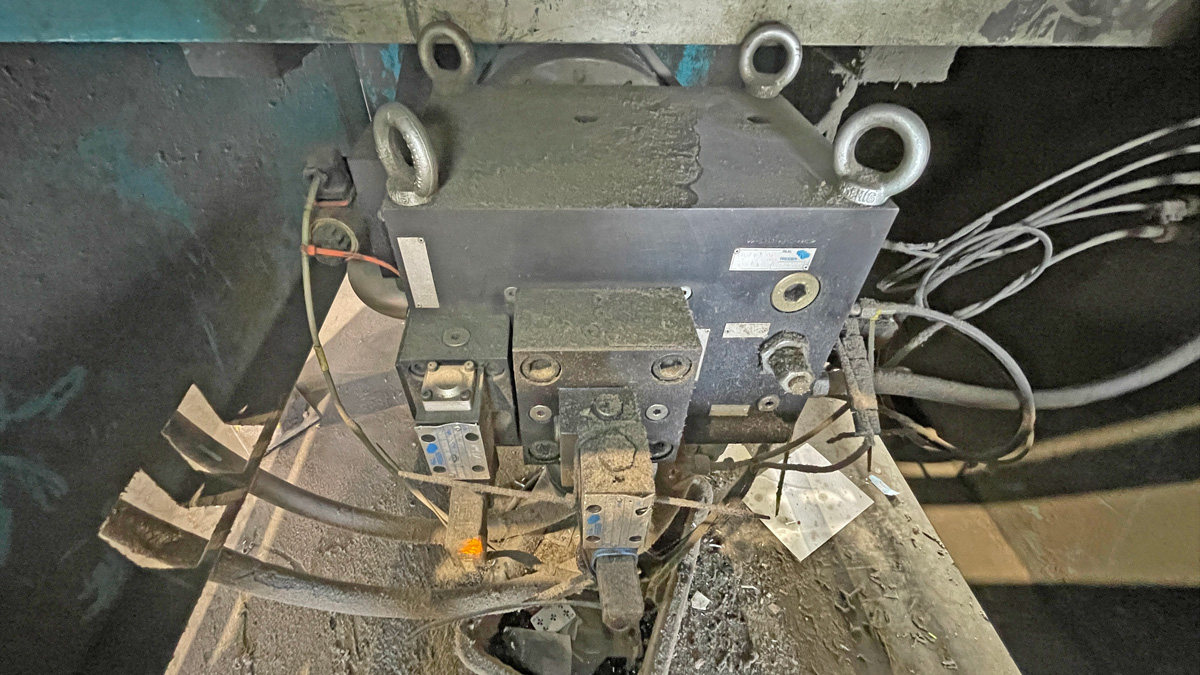

The press and conveyor belt are in satisfactory working condition, see photo documentation. Further technical data and dimensions for the conveyor belt are not currently available.  The plant is currently still in operation and is to be replaced by a larger press plant in the coming months.

Scope of delivery:

Bale press, bale chute, conveyor belt and machine documentation.

Comments:

The documentation (Manual, CE, electr./hydr.-drawings), are completely available. Dismantling and loading is the responsibility of the buyer. Inspections are possible after agreement.  We will not assume liability for the given technical data and possible errors.
