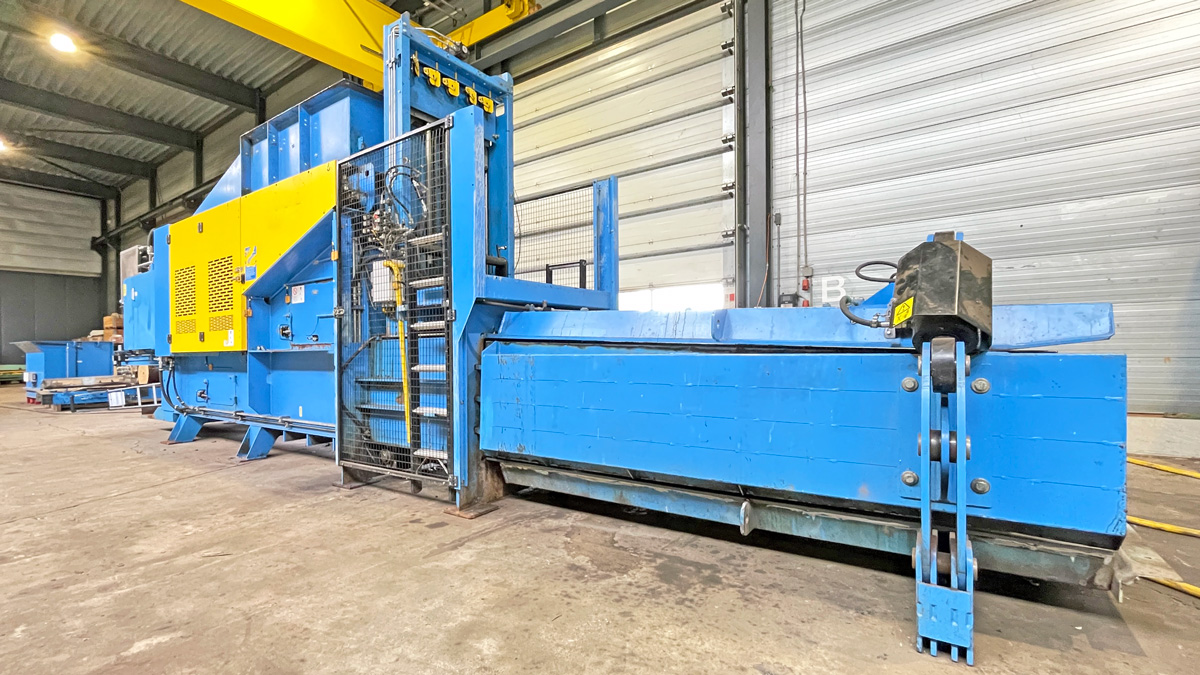

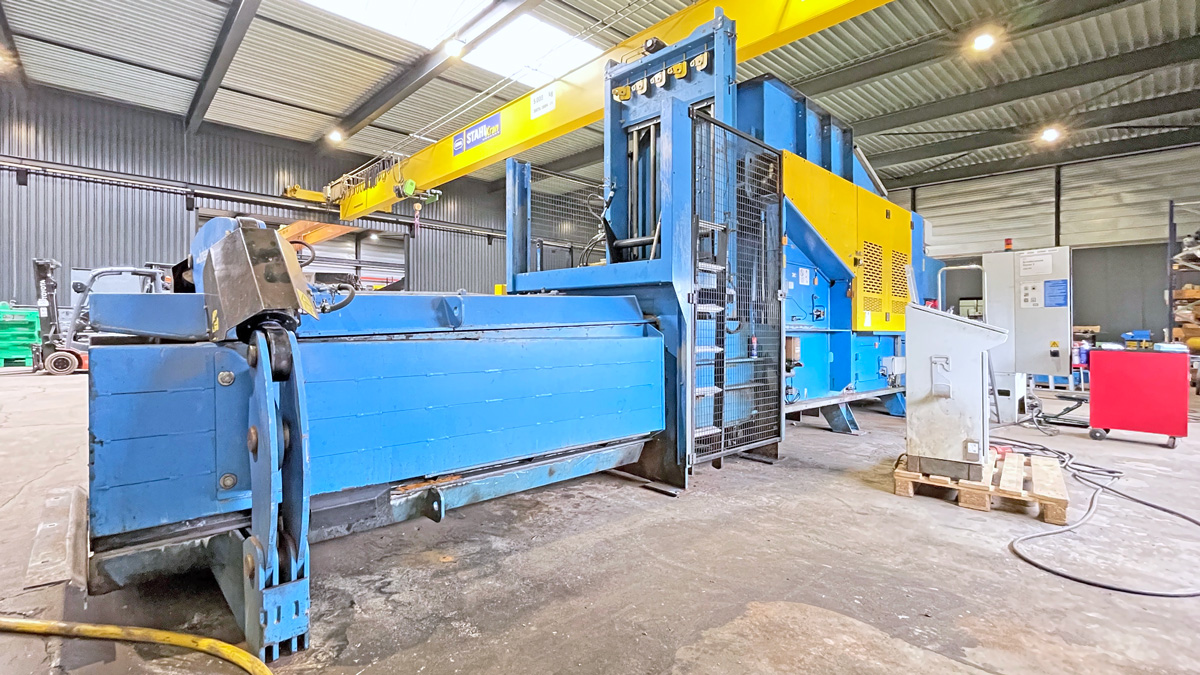

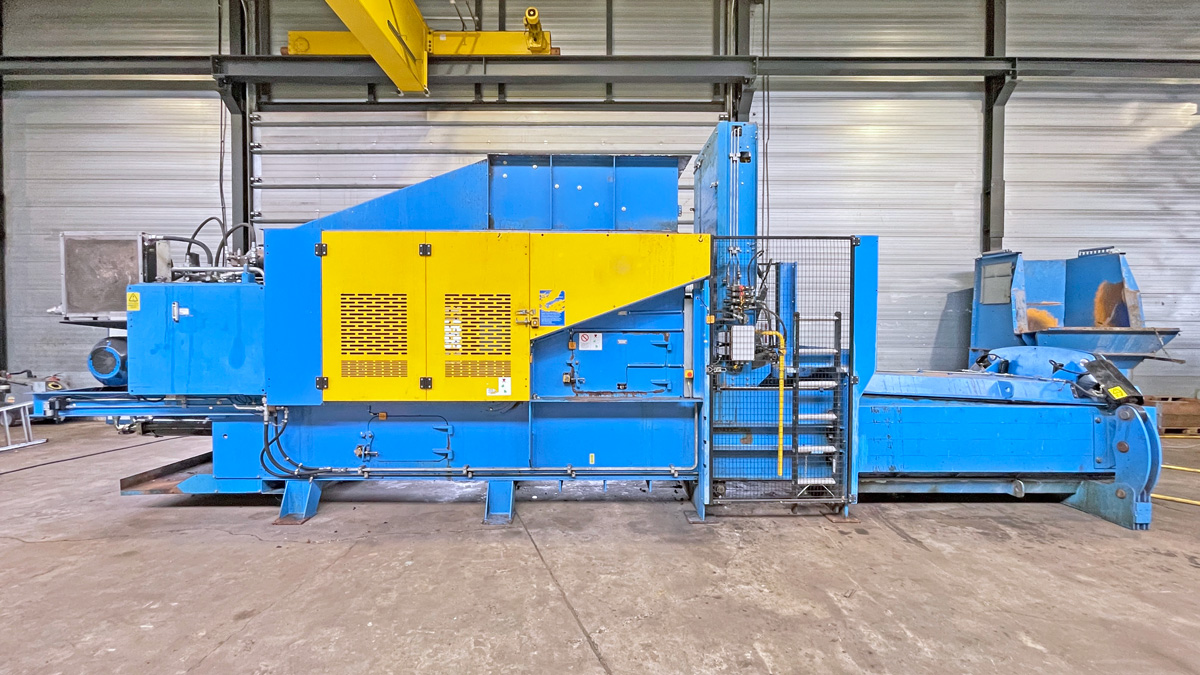

Baler Presona, type LP 60 VH1, 60 t pressing force, yoc 2015, only 30,143 operating hours, effective pump running time 6,527 hours, drive power 37 kW

Technical data baler:

Manufacturer Presona AB, Sweden

Type LP 60 VH1

Year of construction 2015

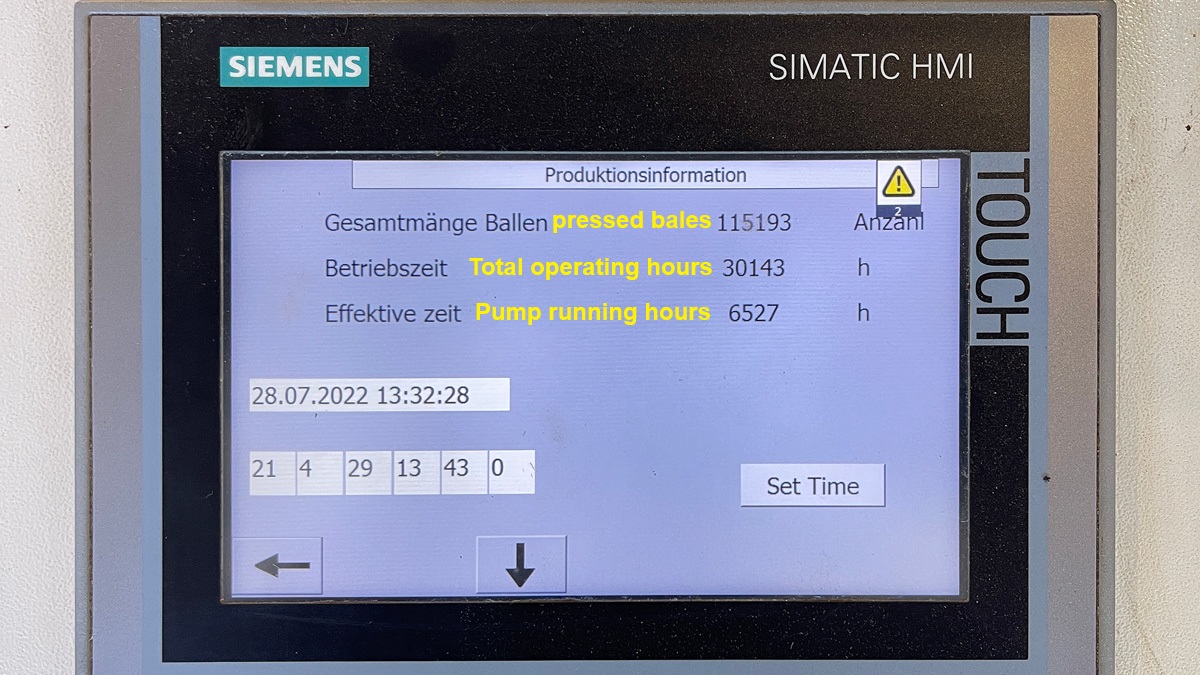

Total operating hours, 30,143 hours, as of July 2025

Effective pump running time onl 6,527 hours, as of July 2025

Number of  pressed bales 115,193 bales, as of July 2025

Press force pre press 25 t

Main press force 60 tonnes

Specific pressing force 73N/cm²

Dimensions of feed chute 1,500 x 1,100 mm

Filling volume / pressing cycle 2.7 m³

Theoretical throughput capacity 800 m³/hour

Throughput capacity under operating conditions 350 m³/hour

Bale dimensions 1,100 x 750 mm

Drive power 37 kW

Tying 5-fold vertical, fully automatic

Throughput capacity with a

Bulk weight of 50 kg/cbm 11 to 14 tonnes/hour

Bale weights 420 to 570 kg, depending on material

Hydraulic oil tank volume 600 litres

Baler dimensions assembled with hopper 10,100 x 3,750 x 4,310 mm (l x w x h)

Transport dimensions excluding press 10,100 x 2,400 x 3,000 mm (l x w x h)

Machine weight press approx. 20 tonnes

Condition of the press:

The press was partially overhauled in our workshop and then tested in manual and automatic mode.

The following overhaul work was carried out:

Machine cleaned, partially derusted and partially repainted

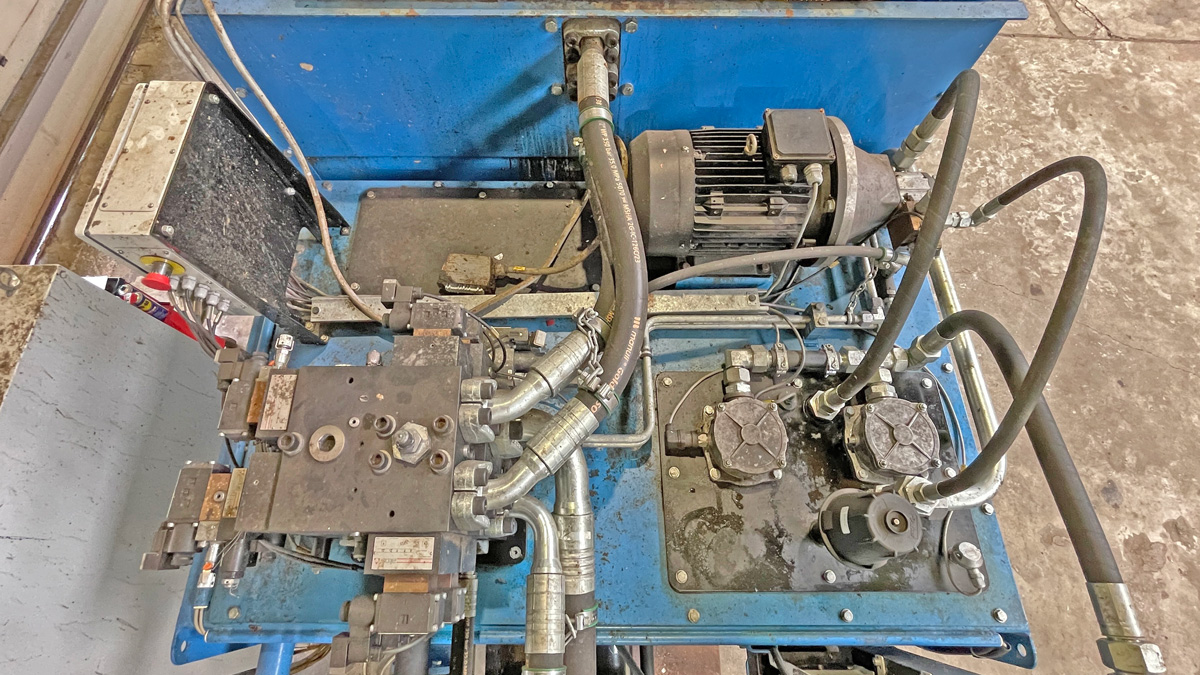

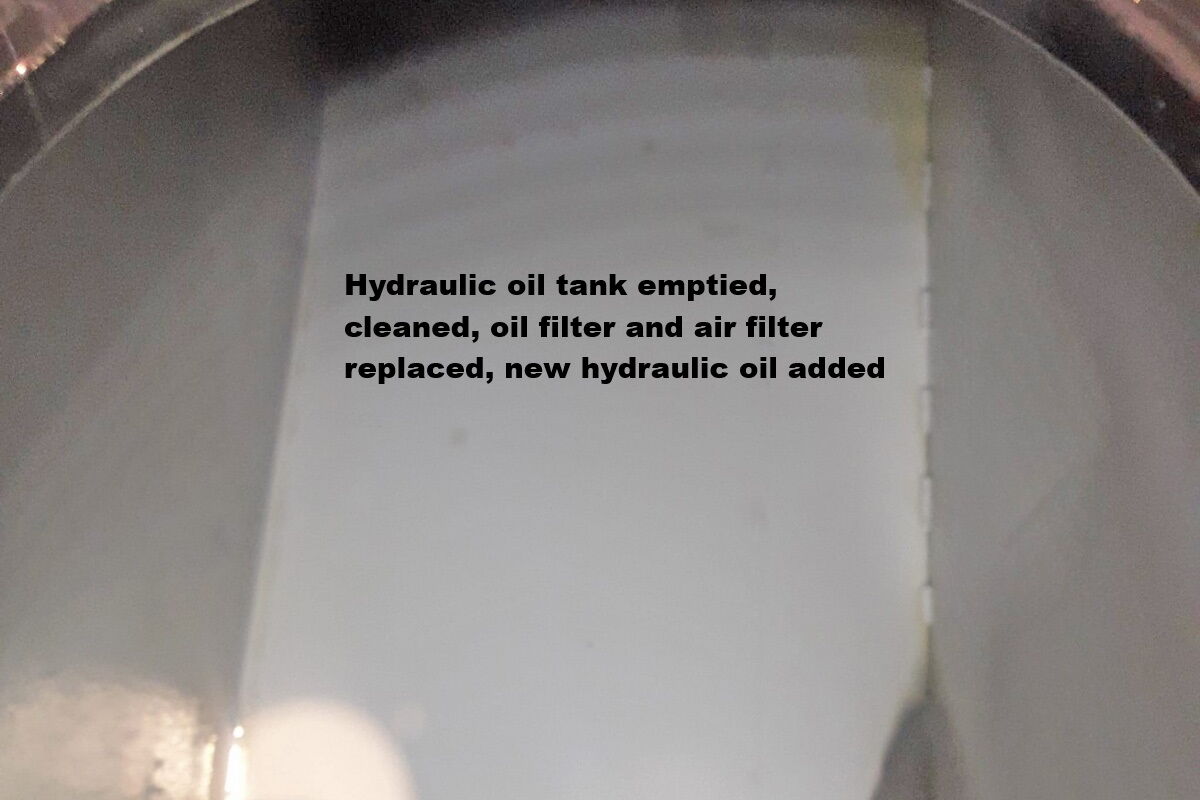

Hydraulic oil tank emptied and cleaned

Oil filter and air filter replaced, new hydraulic oil filled

Press ram dismantled and cleaned

All four rollers removed from the press ram and replaced

Grease cartridges of the automatic roller lubrication system replaced

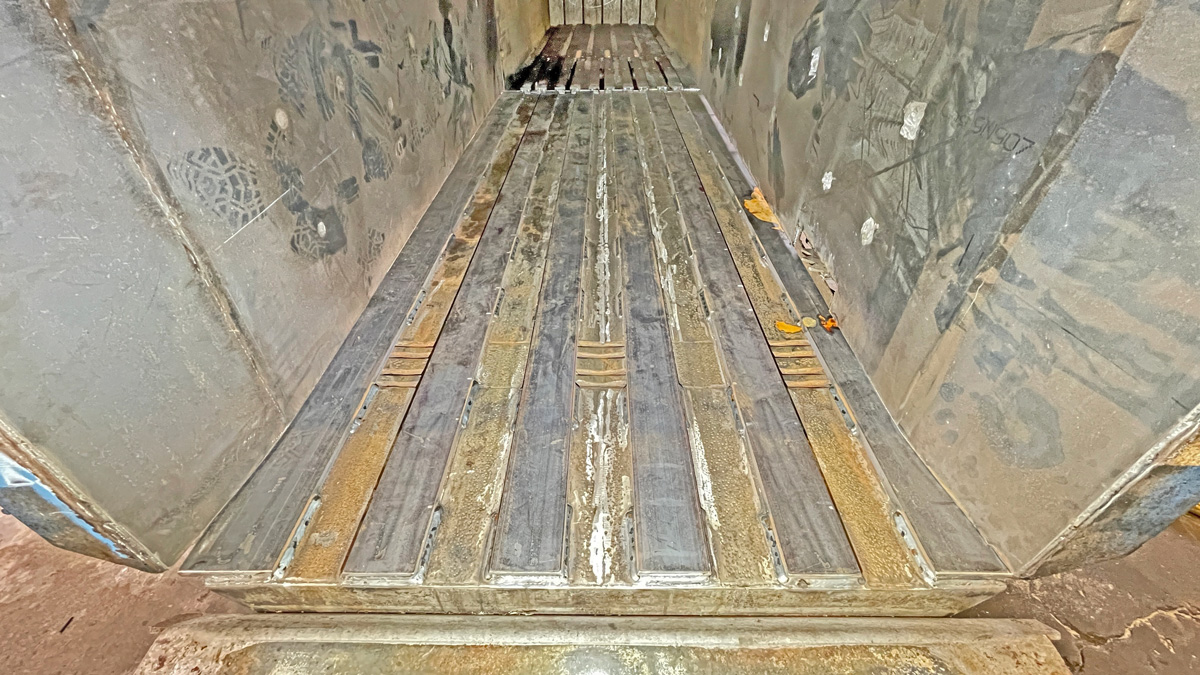

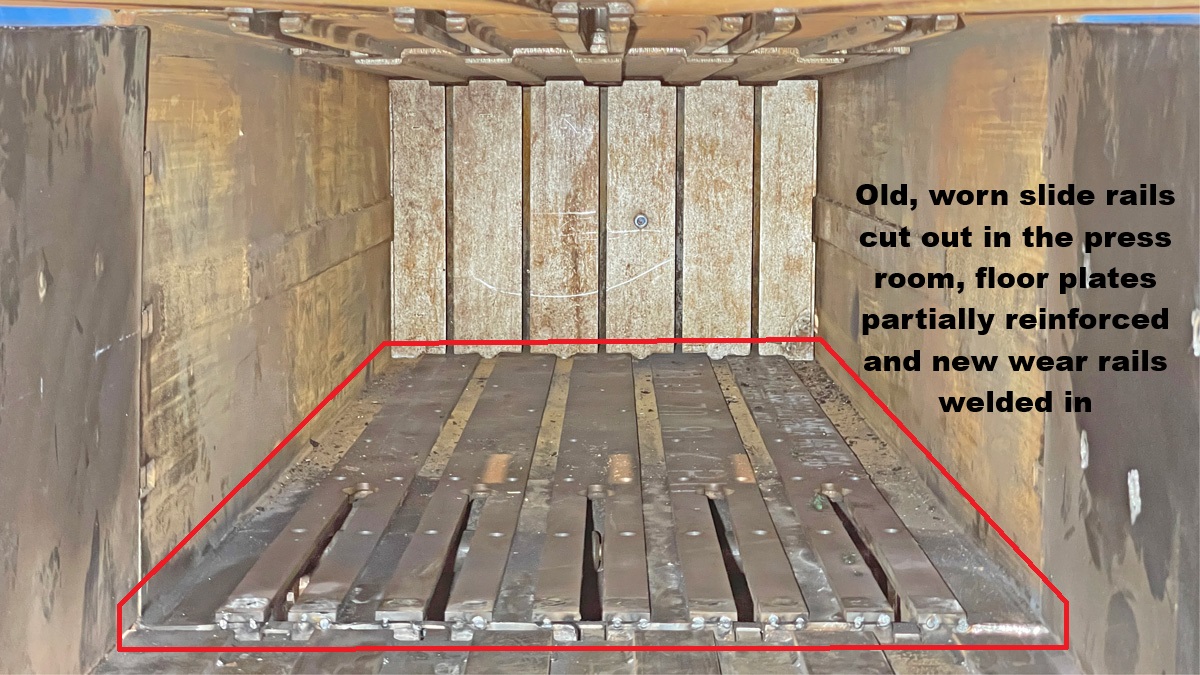

Slide rails cut out from the press floor in the press room

Underbody reinforced with welded sheets

New HARDOX slide rails welded in

Wire station with deflection rollers for the lower wire cleaned and made operational

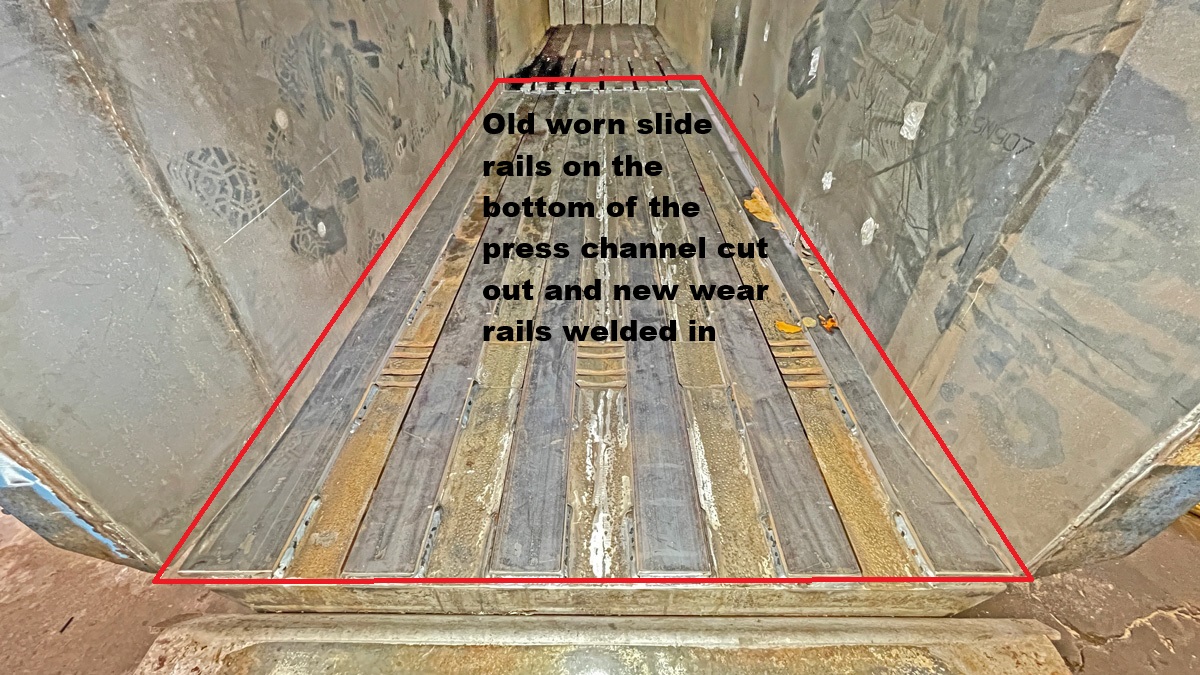

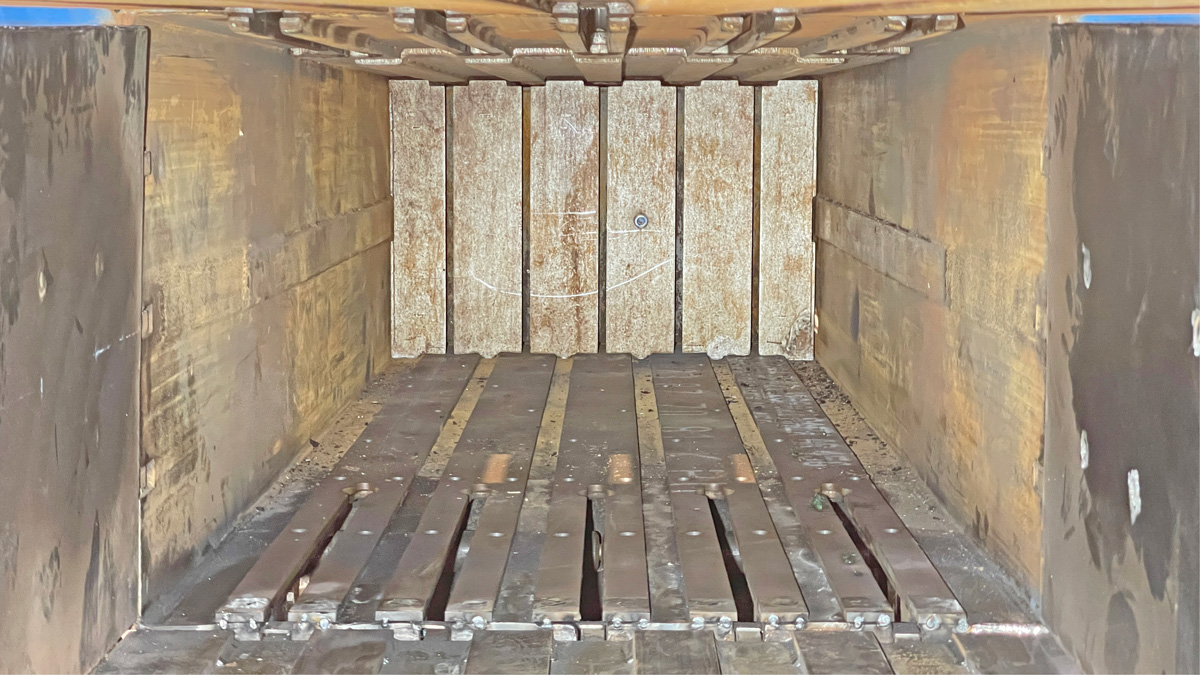

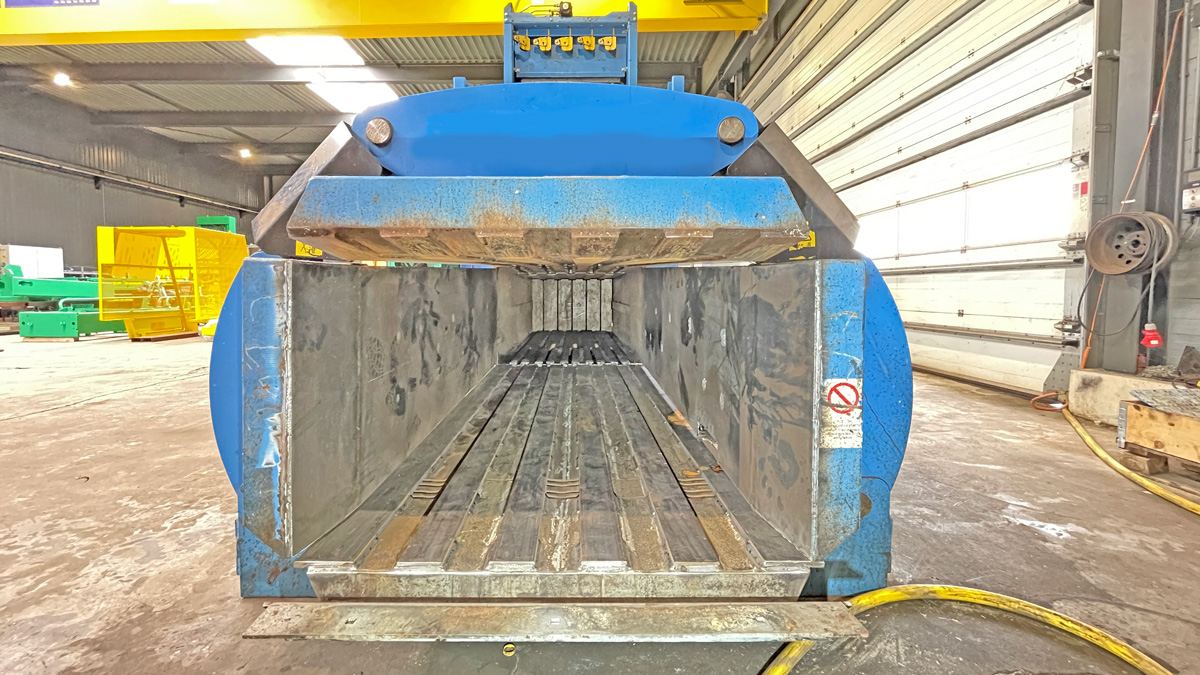

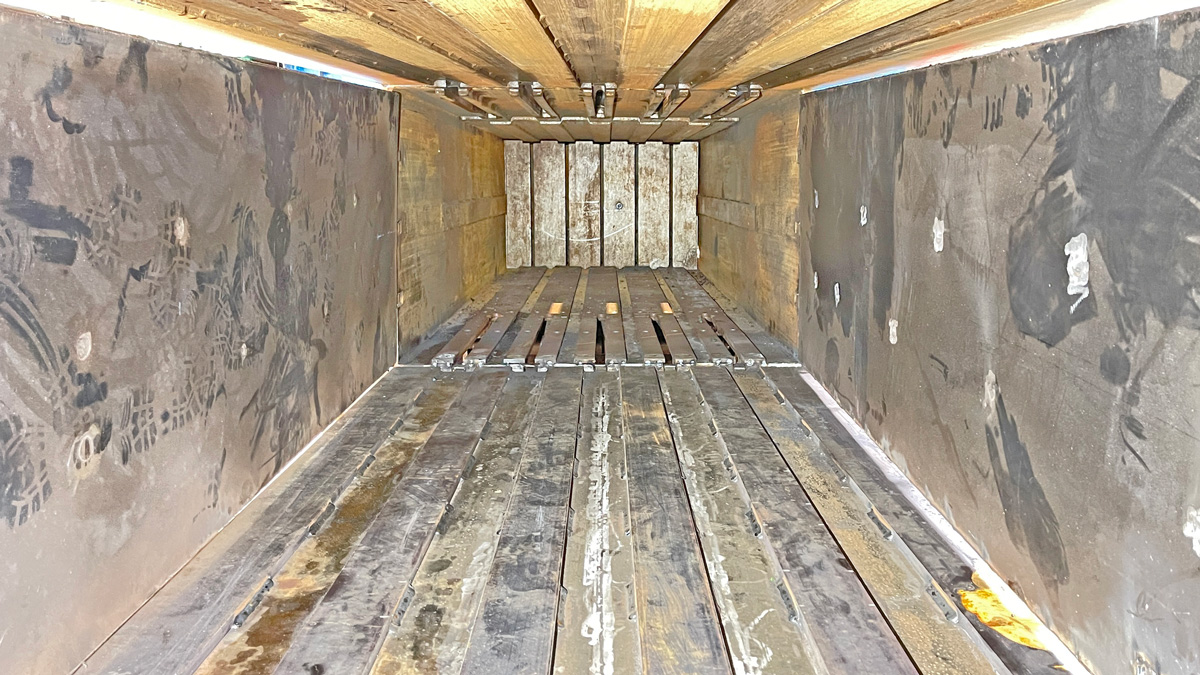

Slide rails cut out from the floor in the press channel

New HARDOX slide rails welded in

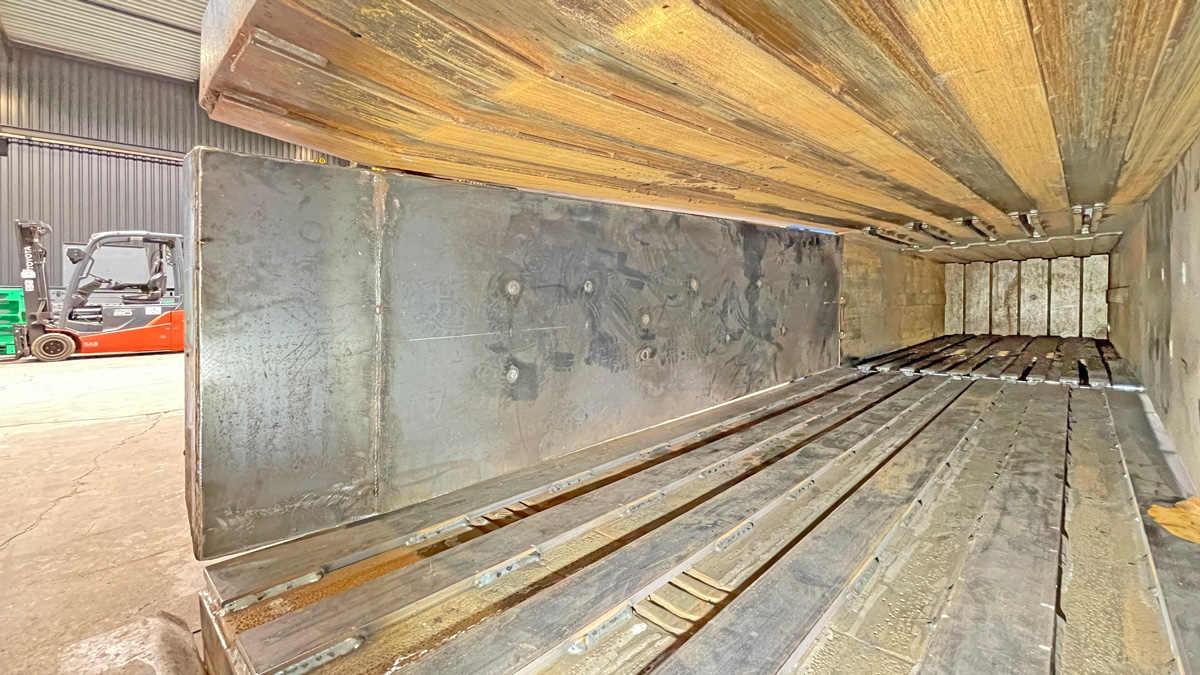

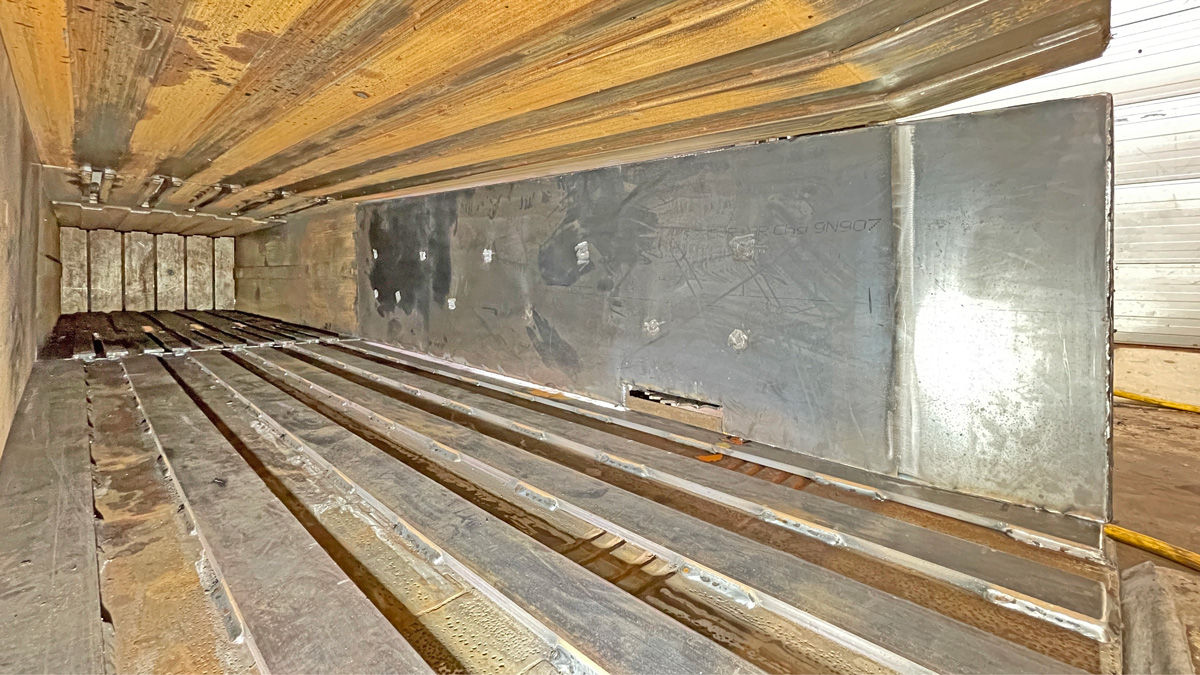

Both side walls of the press channel dismantled, derusted

Worn side wall plates cut out

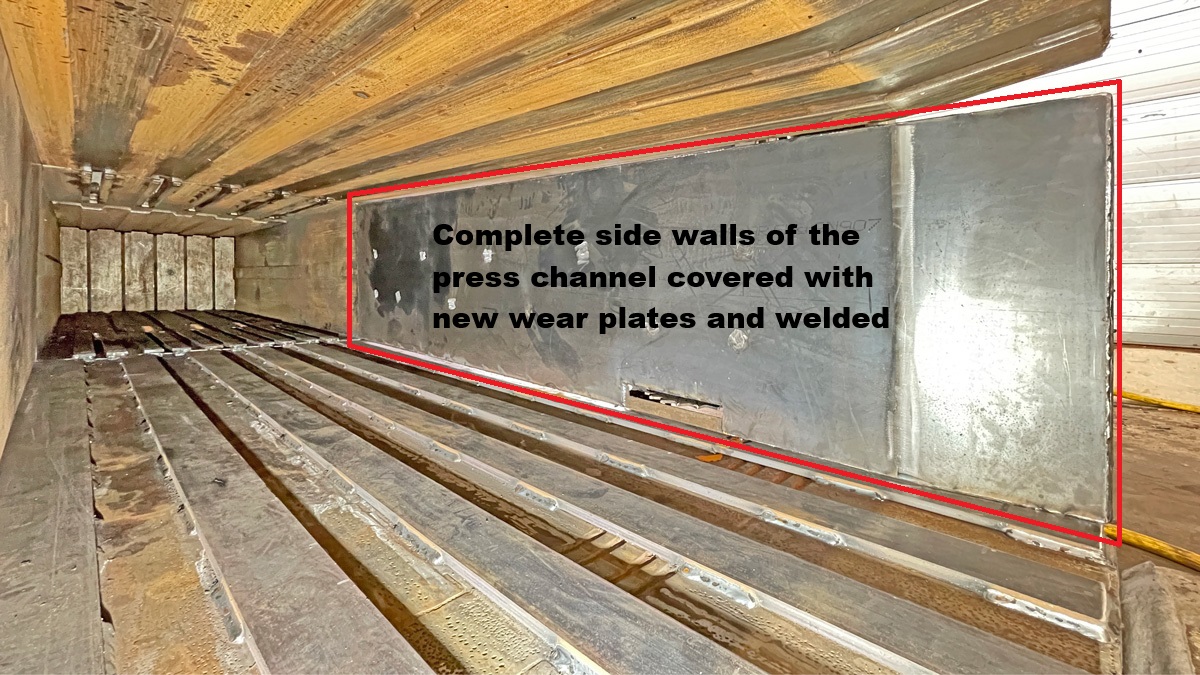

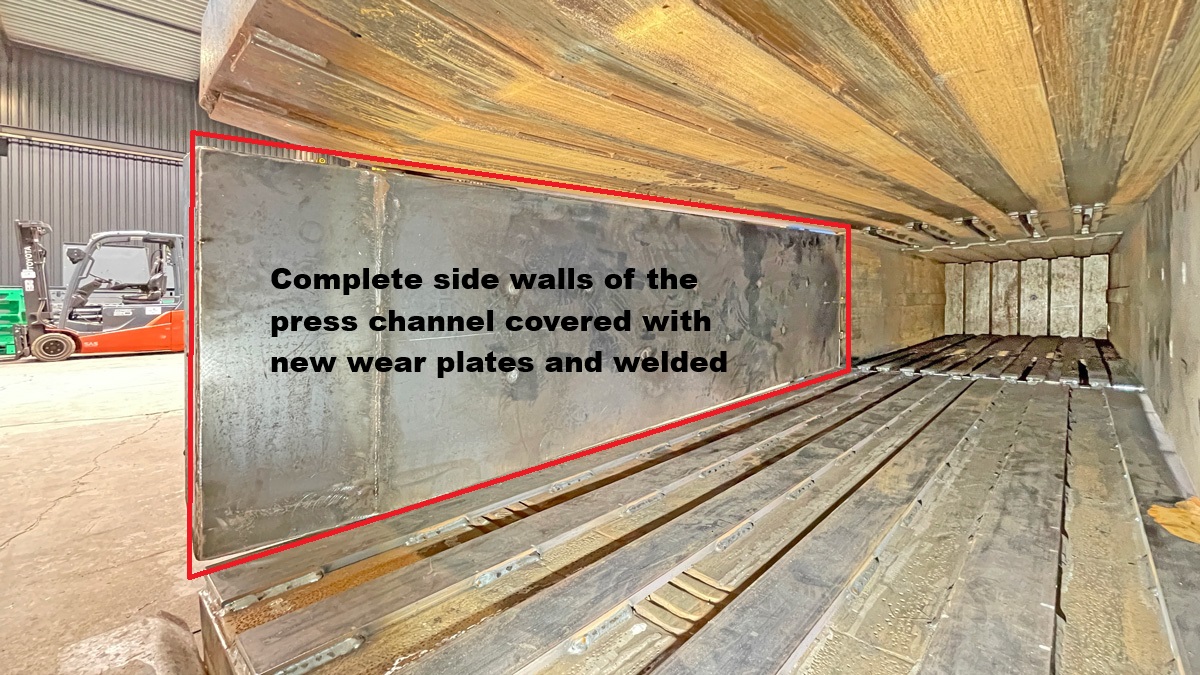

Complete side walls covered with new wear plates and welded

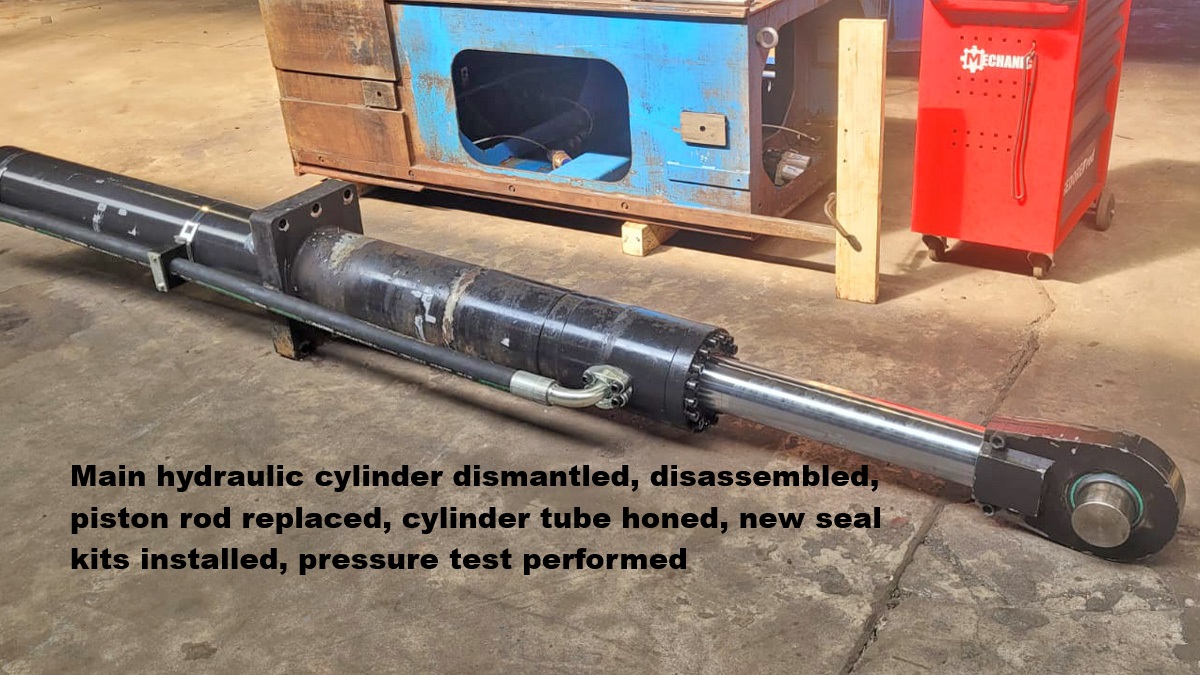

Main hydraulic cylinder dismantled and disassembled for inspection

Piston rod replaced, cylinder tube honed

Complete seal set replaced, pressure test carried out

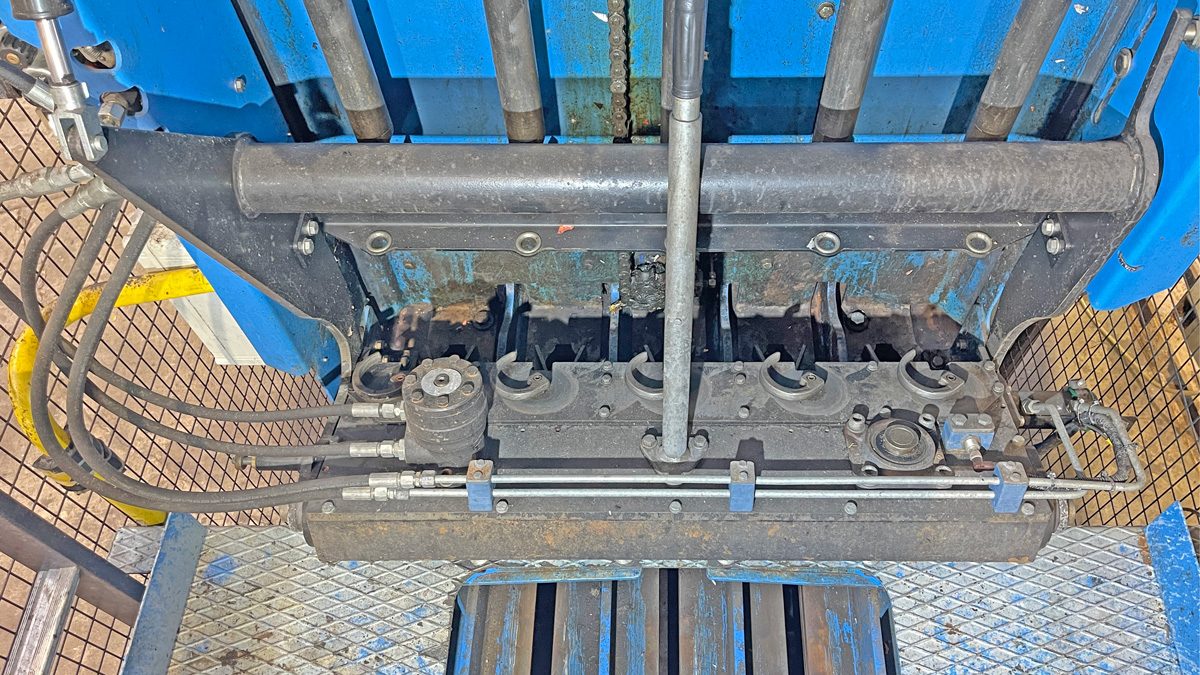

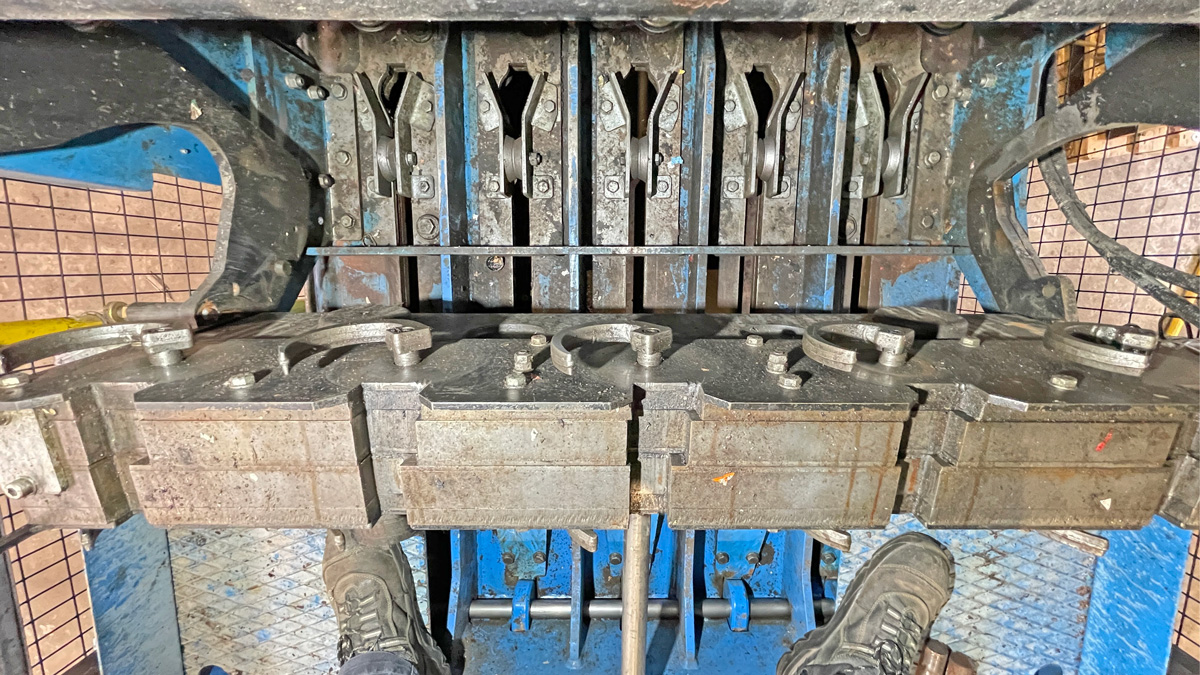

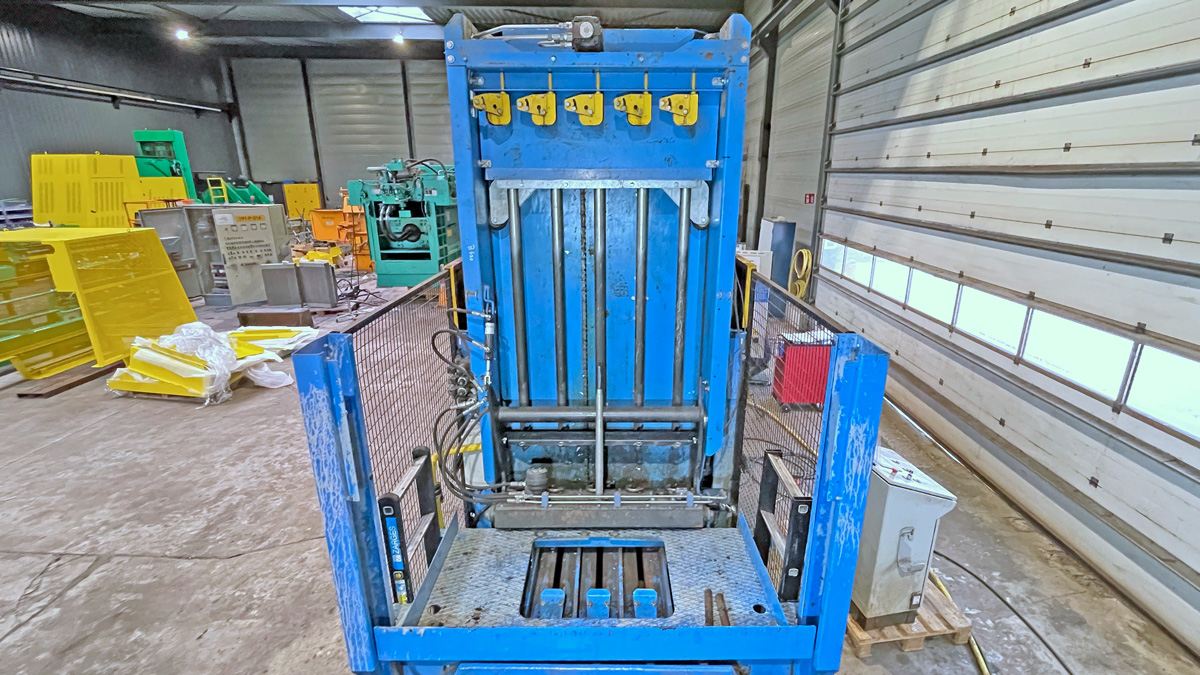

Vertical needle system for binding dismantled, cleaned, wire deflection rollers made functional and serviced

Chain cleaned, greased, chain tension readjusted

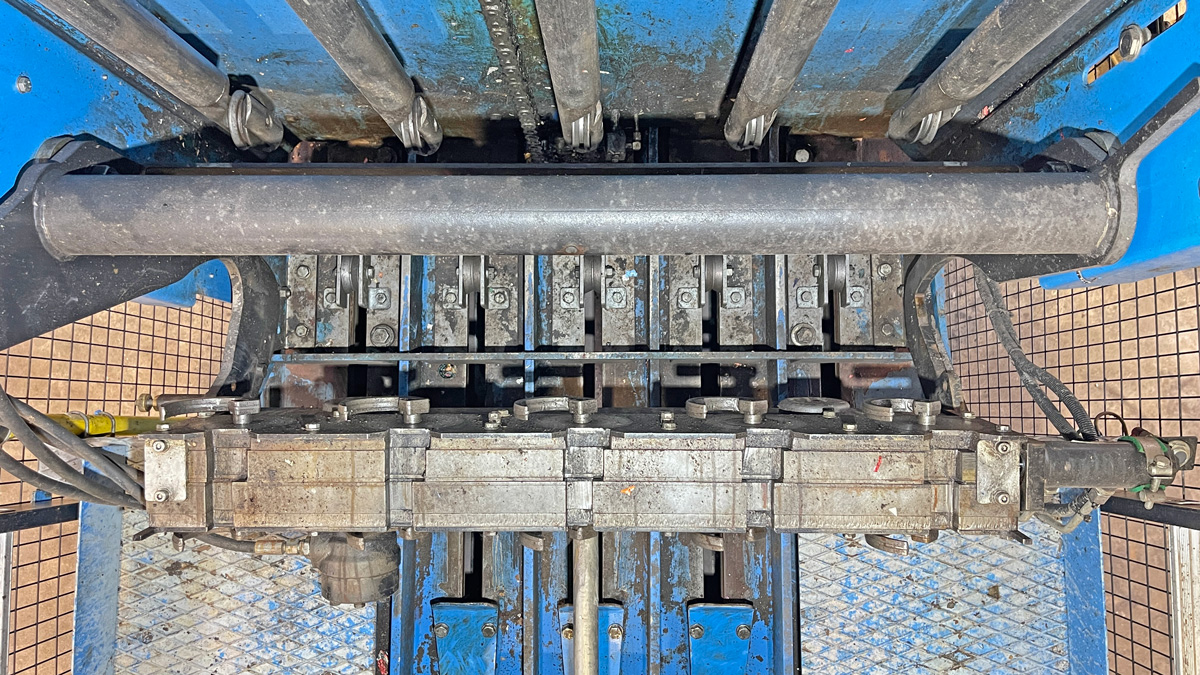

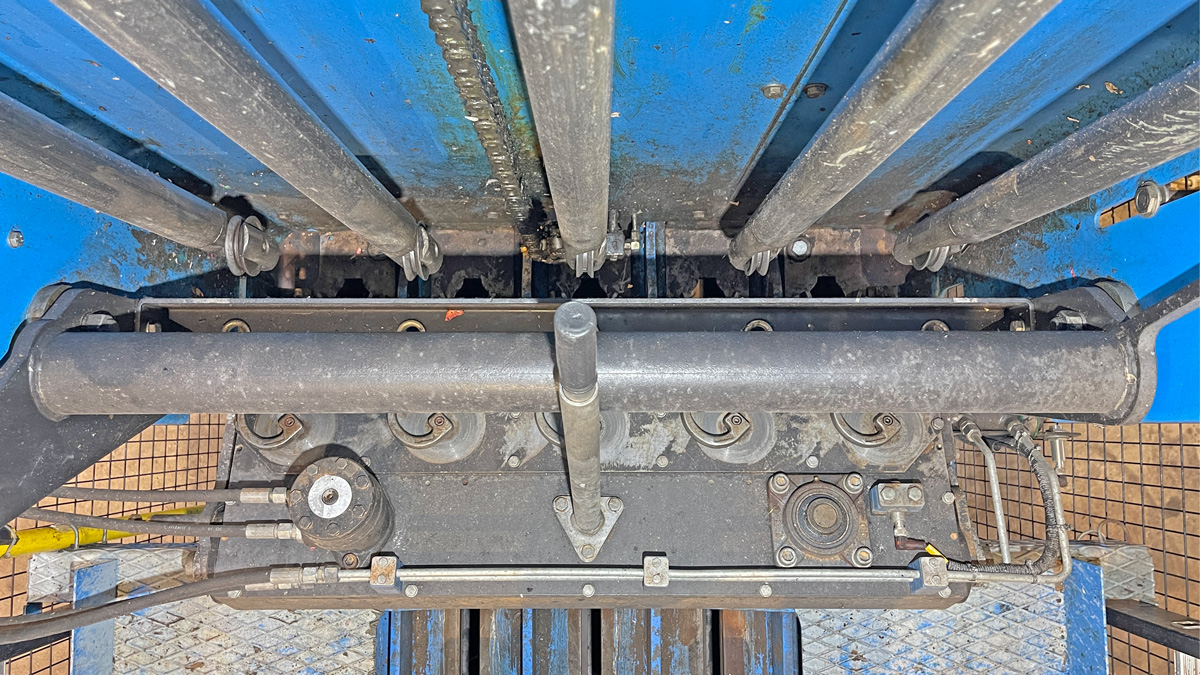

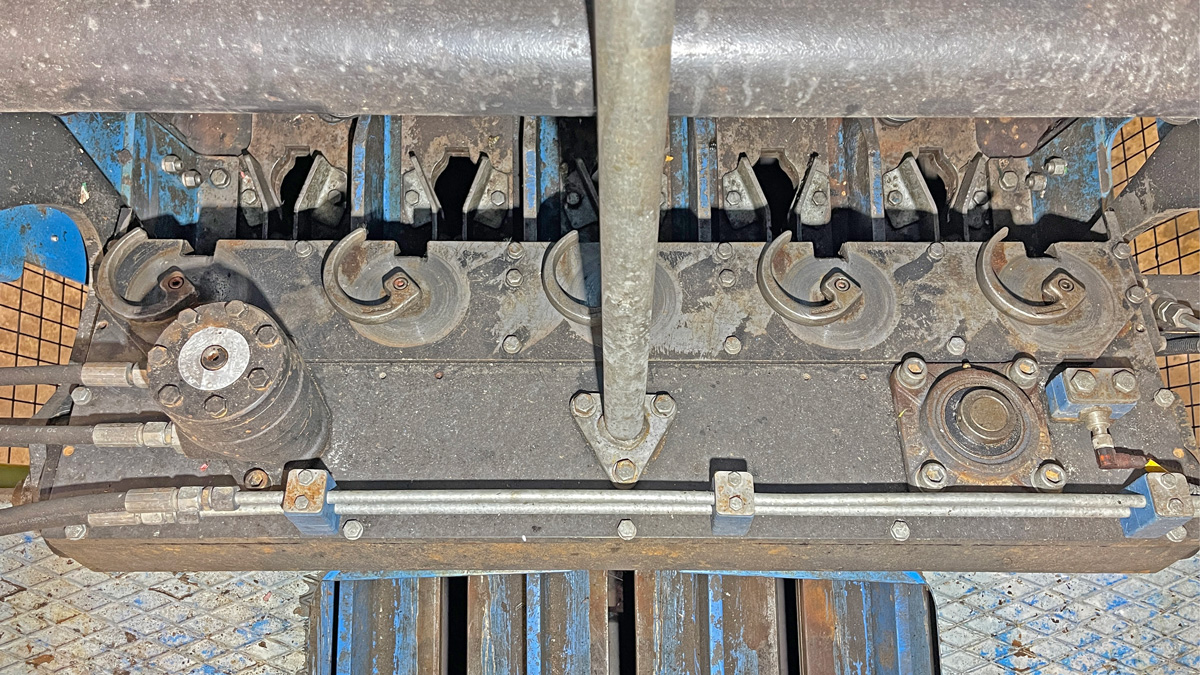

Drillomat cleaned, wire knife, drill shafts and drill fingers checked, retightened with torque and serviced

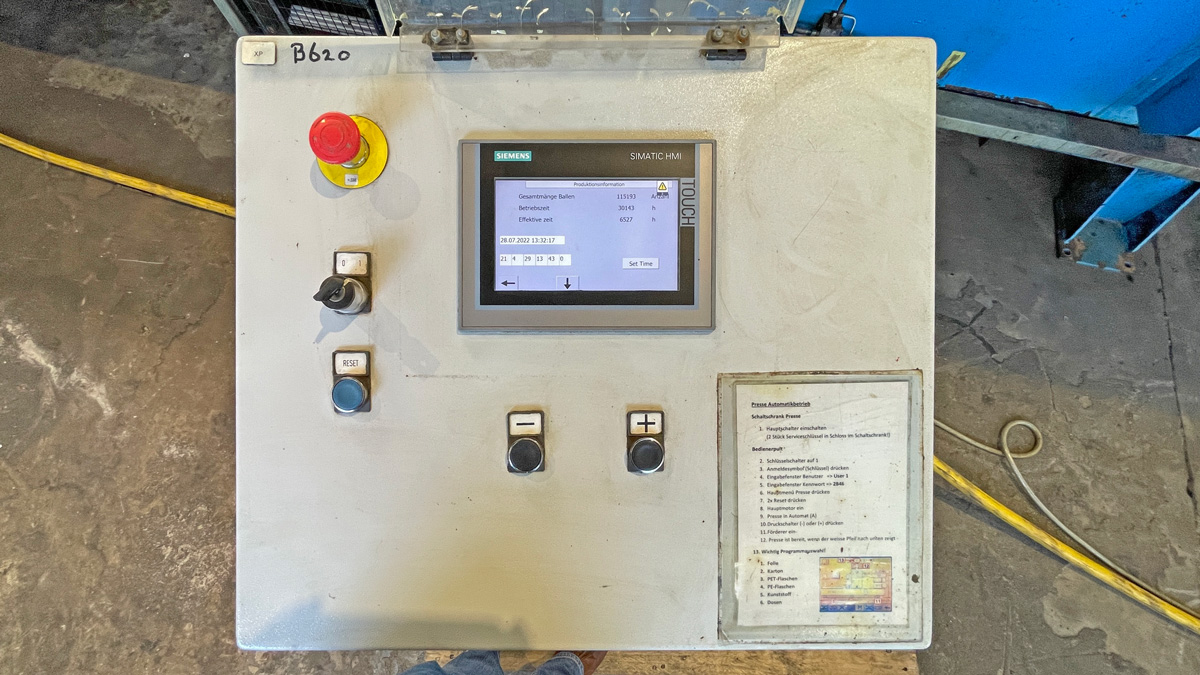

Machine checked, general maintenance work carried out and press tested in manual and automatic mode

Comments:

The press is sold without a conveyor belt and without wire stations.  Inspections are possible after agreement. We will not assume liability for the given technical data and possible errors.
