Bollegraaf HBC 140 K, yoc 2007

Year of construction 2007, pressing force 140 t, installation 2018

The customer received a completely overhauled Bollegraaf HBC 140 K, with 10-fold cross binding, new chain belt conveyor, new wire drawing stations and bale chute, for pressing cardboard boxes, foils and hard plastics.

  • Baler Bollegraaf, Typ HBC 140 K, yoc 2007, working hours 42,354 hours, completely overhauled by OBM Recycling Machinery B.V.
  • Pressing force main press 140 tons, pressing force pre-press 70 tons, drive power 2 x 75 kW, bale size 1,100 x 1,100 mm.

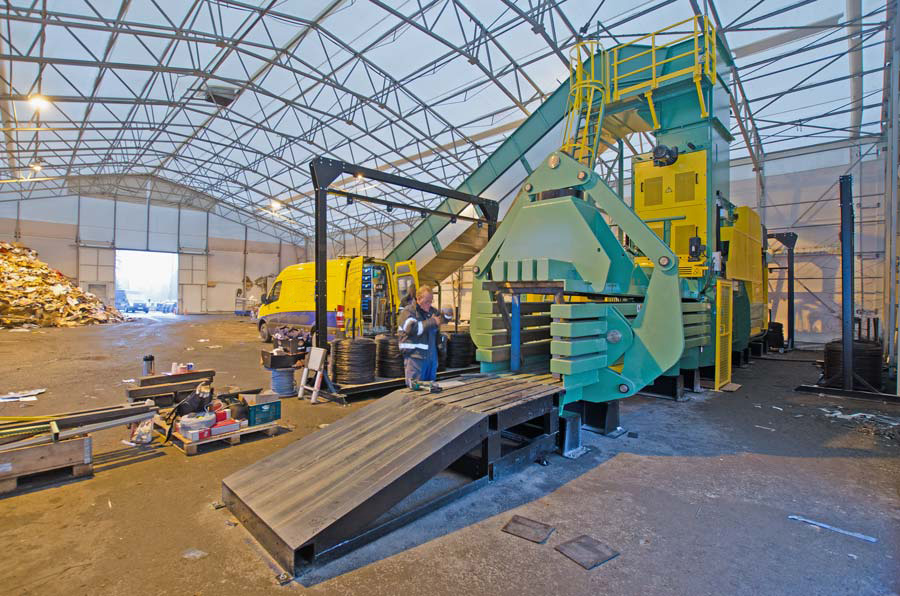

  • At the customer's request, the press was placed on steel platforms 390 mm high, to facilitate daily cleaning and service work.
  • Height-adjustable wire deflection units were used as wire stations, enabling individual wire feeding.
  • The wire reel stands were equipped with mobile heavy-duty reels (optional equipment). This makes it easy to fit new 500 kg wire coils outside the narrow maintenance aisle.
  • Due to the 390 mm increase of the press, the area where the needles pass through the press floor must be protected from unauthorized access.
  • This door (optional equipment) between two steel platforms, controlled by a safety switch, protects the area of vertical and horizontal tying from unauthorised access.
  • Between the baler and the wire pulling station a narrow maintenance corridor of 1 m was maintained.
  • A height-adjustable wire station (optional equipment) was also installed behind the baler.
  • As in the case of the left side of the baler, the wire reel stands were equipped with mobile heavy-duty reels (optional equipment) in order to make it easy to replace the wire reels.
  • The wire station to the right of the baler is also height-adjustable (optional equipment). However, the reel stands are not mobile, as it is possible to exchange the wire reels directly with a fork lift.
  • Wire deflection unit for horizontal tying.
  • The optional horizontal tying unit (optional equipment) is used for expansive materials such as foils and hard plastics.
  • The wire station to the right of the press is also height-adjustable (optional equipment). However, the reel stands are not mobile, as it is possible to exchange the wire reels directly with a forklift.
  • Bale slide in extra strong construction.

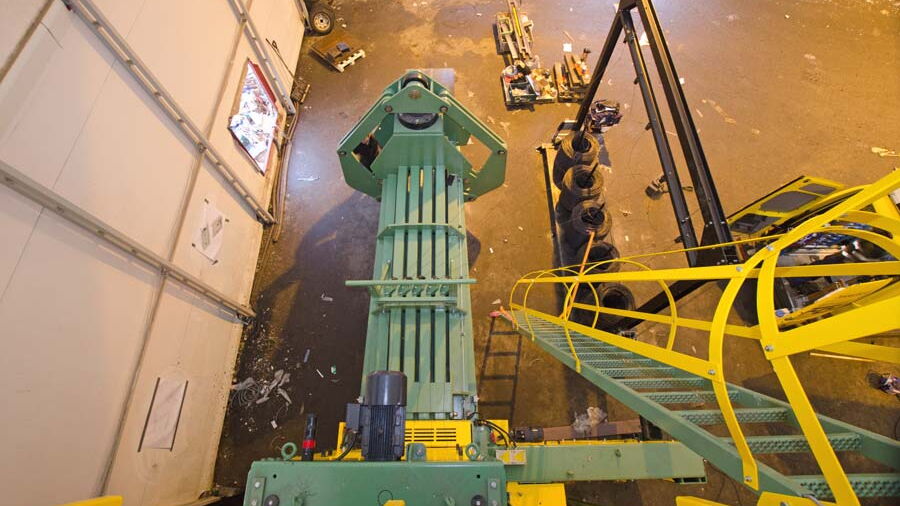

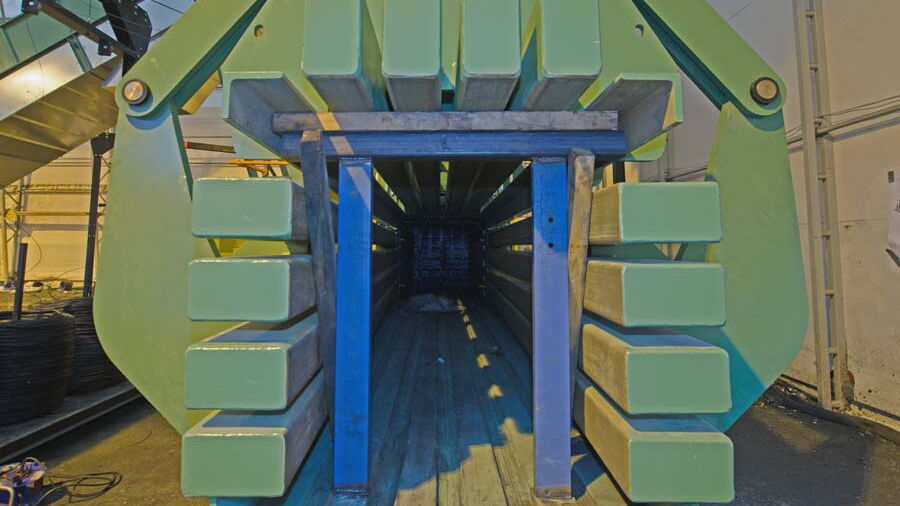

  • Support structure made of steel profiles for the transport and first pre-pressing of material in the press channel.

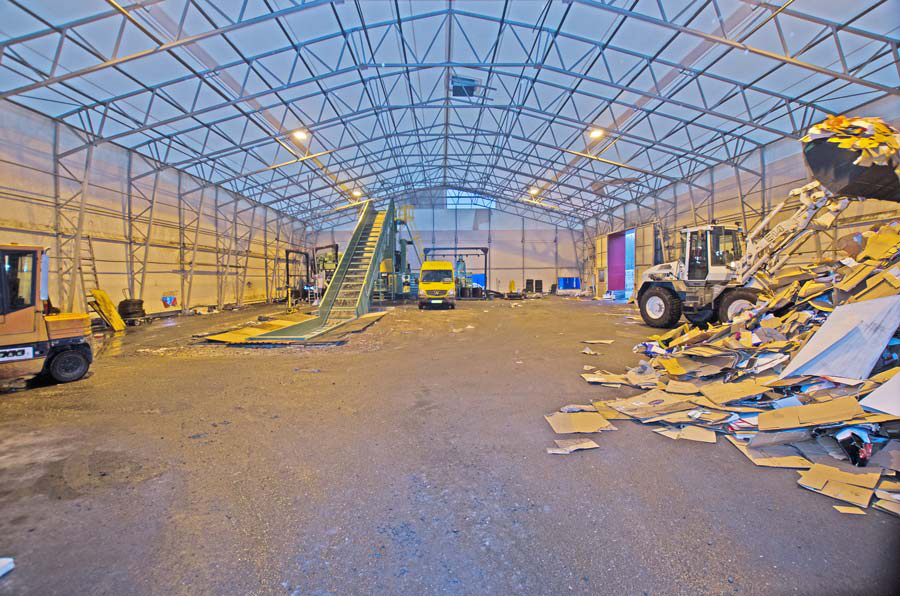

  • Longitudinal view of the lightweight hall with installed chain belt conveyor. The pit was temporarily covered with wooden panels.

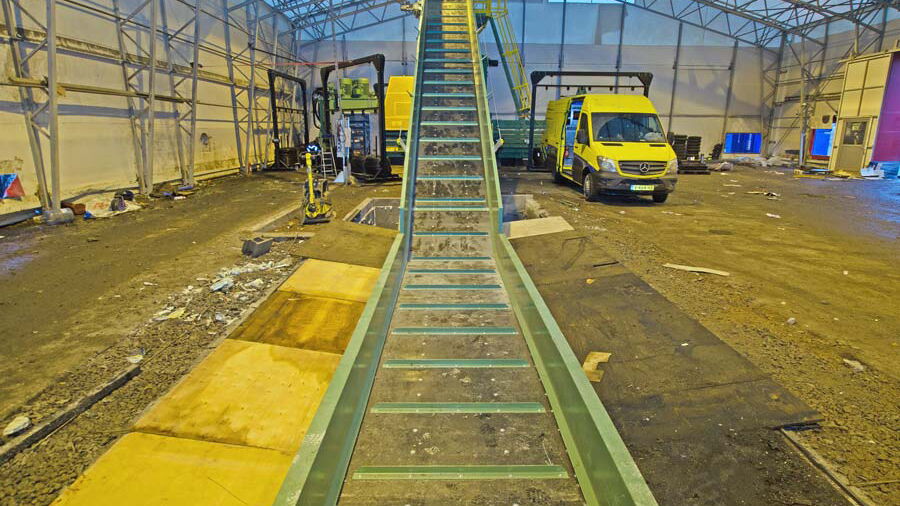

  • Chain belt conveyor belt from Germany, axle distance 22.000 mm, infeed belt underfloor 6.000 mm, ascending belt 14.623 mm, gooseneck 1.340 mm, pitch 30°.
  • Infeed conveyor under floor 6,000 mm, belt width 1,600 mm, effective working width 1,570 mm, rubber belt EP 400/3, ceiling 4:2.
  • Side wall height feeding belt 500 mm, ascending belt 800 mm, belt guidance via a strengthened bush conveyor chain M112/R60-B125.
  • Rubber belt with 20 mm T-cleat strip on both sides, 70 mm angle steel driver, 500 mm each 1 piece.
  • Chain running angle provided with replaceable wear rails, side walls inside and outside can be dismantled into segments for easy maintenance.
  • Maintenance platform with railing mounted directly on the hopper. Ladder equipped with fall protection grid.
  • The funnel and drop funnel are made of 10 mm reinforced steel construction.
  • Reinforced motor with drive power of 7.5 kW, (optional equipment) also sufficiently dimensioned for wet cardboard.
  • Sturdy lower cover made of galvanised sheet steel, can be dismantled individually in segments, with discharge chute for material overflow.
  • Ladder provided with fall protection and a safety-monitored access barrier.
  • Detailed view of the access barrier monitored via safety limit switches. The press switches off when opened.

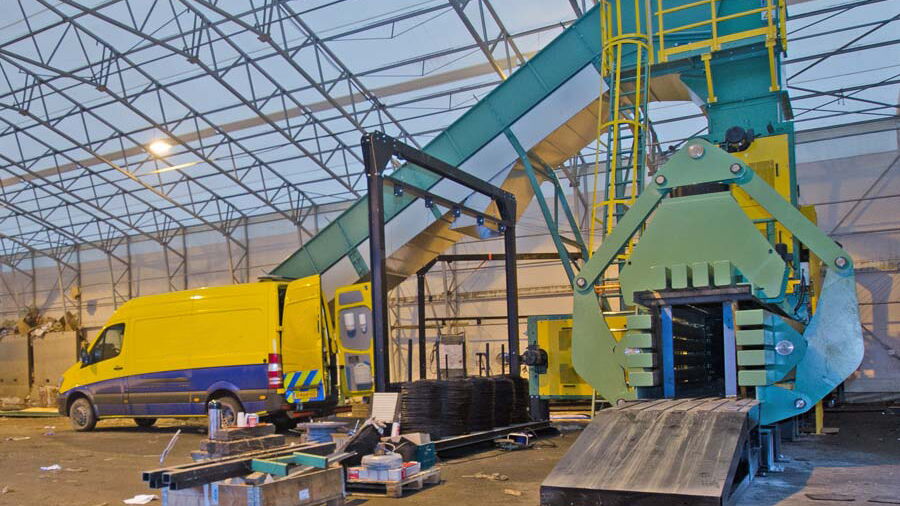

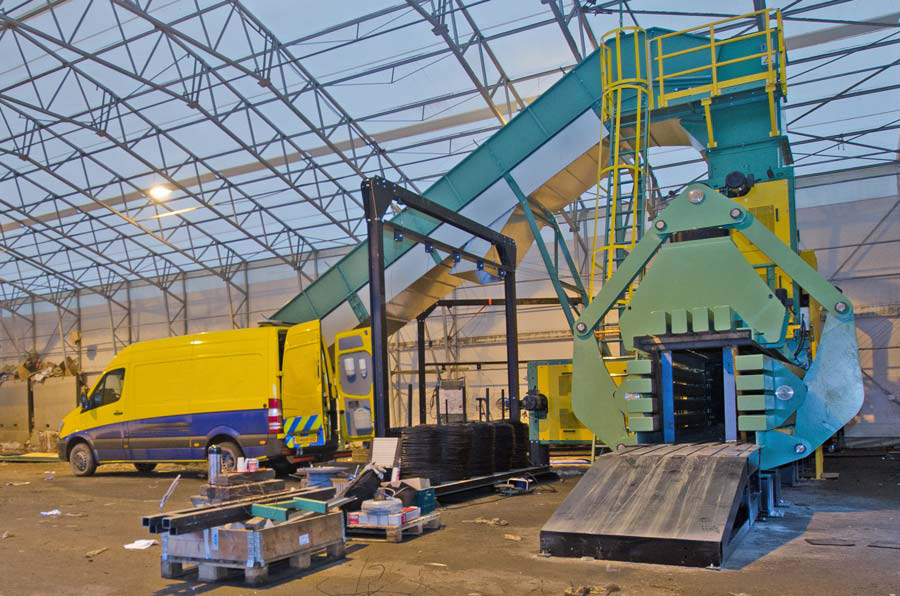

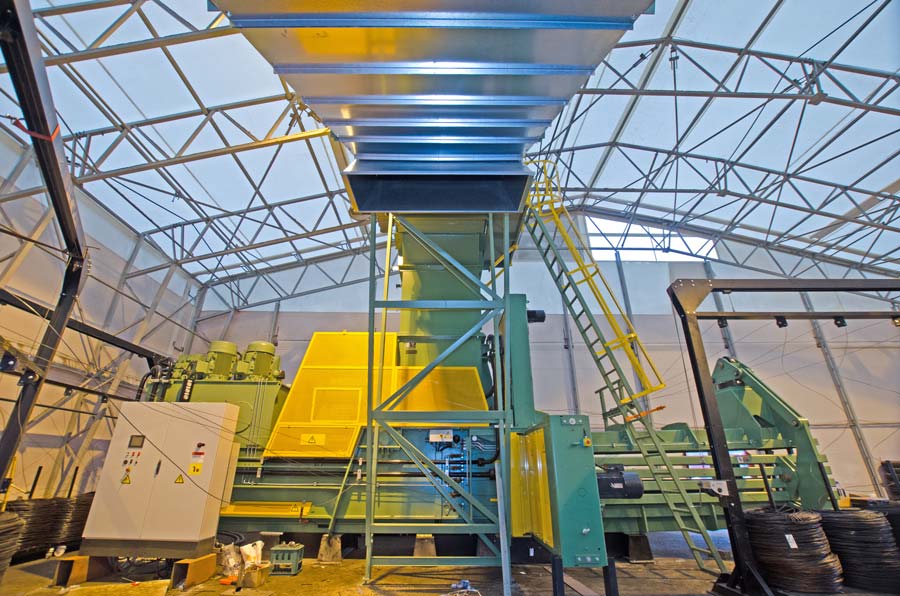

  • The press with chain belt conveyor is fully assembled. The OBM service team and the customer are ready for the material feed and press start-up.

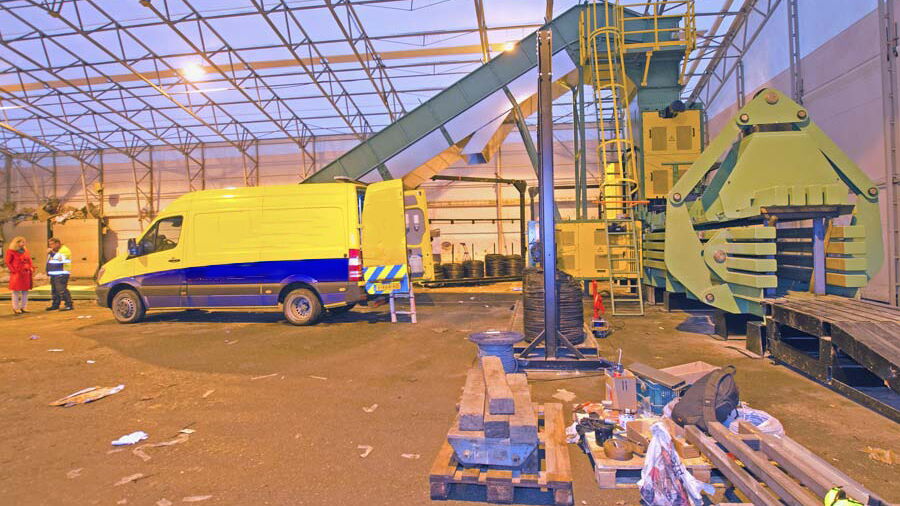

  • Material is provided, the loading of the conveyor belt takes place with wheel loaders.
  • For the first adjustment of the press with material, the pit was provisionally covered with wooden plates.
  • The first material to adjust the press was cardboard.

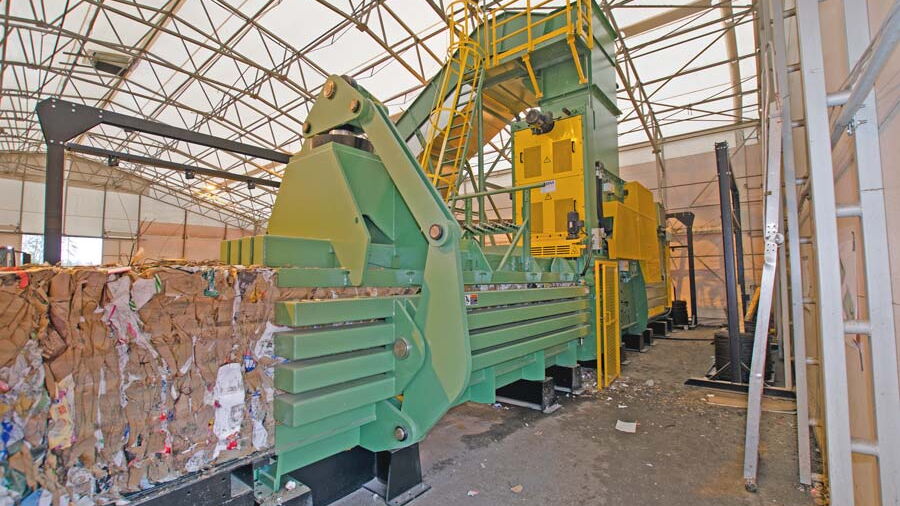

  • The first bales are pressed in the presence of the customer.
  • The bale quality and length are checked by the team leader of the OBM service team.
  • The tying works perfectly, the bale quality and bale length are correct.

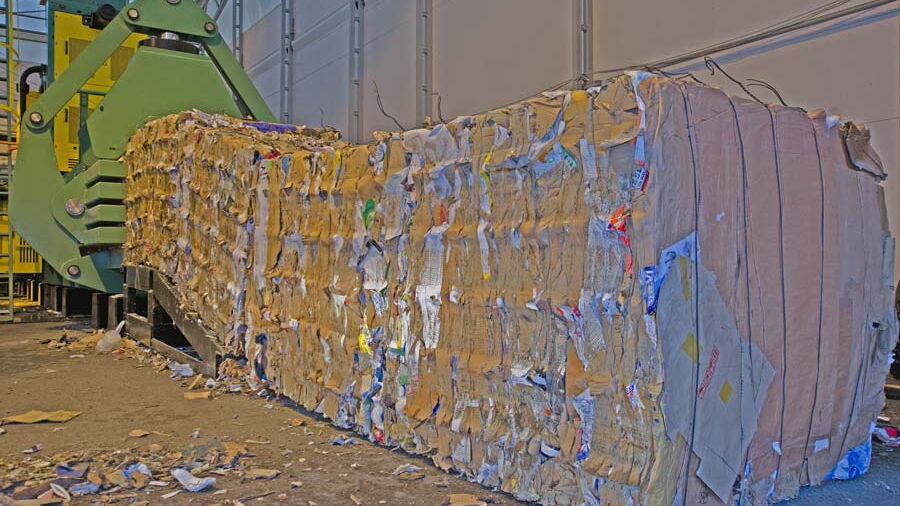

  • The bale weights with cardboard, quality 1.04, are between 850 and 900 kg, with a bale size of 1,100 x 1,100 x 1,200 mm (h x w x l).
  • The throughput capacity of the machine and the quality of the bales in form stability and weight fully meet the expectations of a premium baler like Bollegraaf.

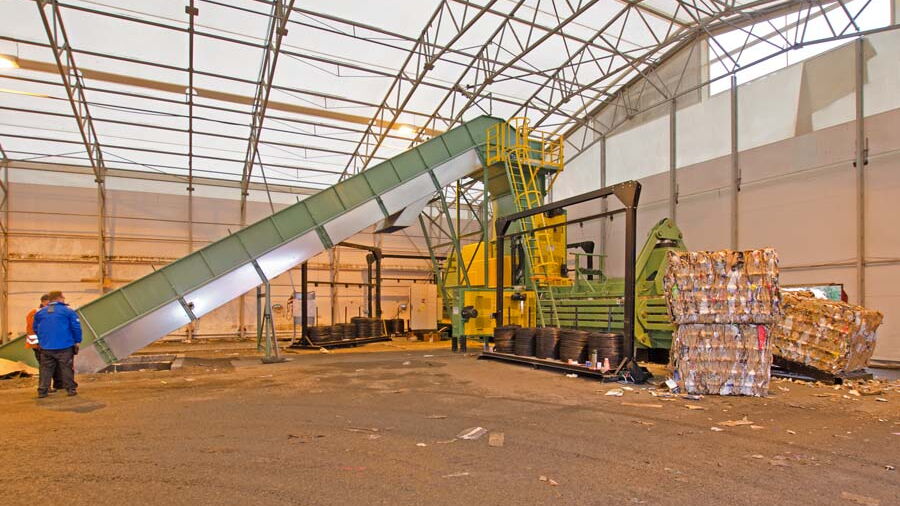

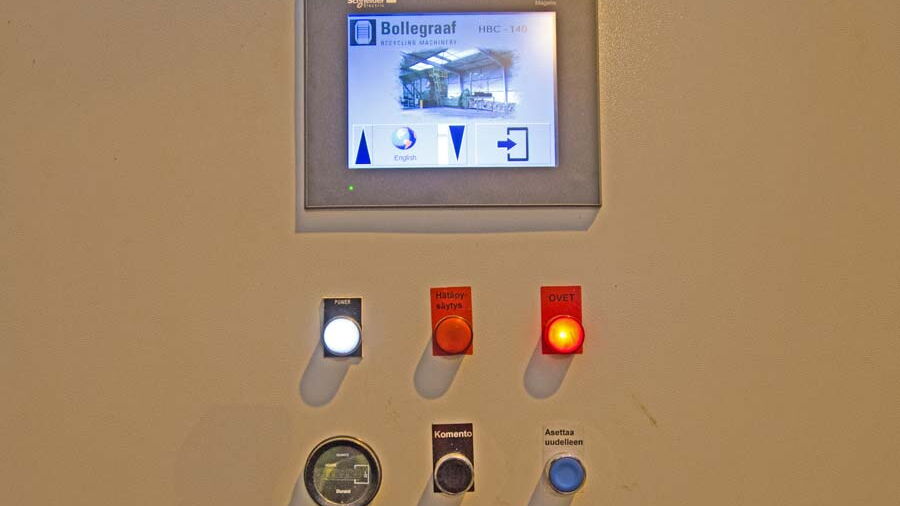

  • Handover of the plant to the customer during operation. After a complete overhaul, "made by OBM", a Bollegraaf HBC 140 K takes up its second production time.
  • High-quality machines from premium manufacturers professionally overhauled, delivered, installed and commissioned. This is service with guarantee "made by OBM".
